OU5084

Diffuse reflection sensor

OU5084

OUN-DPKG/US-100-DPO

Diffuse reflection sensor

OU5084

OUN-DPKG/US-100-DPO

Article no longer available - archive entry

Product characteristics

Type of light	infrared light
Housing	rectangular

Application

Special feature	Diffuse reflection sensor for short ranges
Function principle	Diffuse reflection sensor

Electrical data

Operating voltage [V]	10...55 DC
Current consumption [mA]	< 35
Protection class	III
Reverse polarity protection	yes
Type of light	infrared light
Wave length [nm]	880

Outputs

Electrical design	PNP
Output function	dark-on mode
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Range [mm]	20...40; (white paper 200 x 200 mm)
Max. light spot diameter [mm]	20
Light spot dimensions refer to	at maximum range
Diffuse reflection sensor for short ranges	yes

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC

EN 60947-5-2

Mechanical data

Weight [g]

70.6

Housing

rectangular

Dimensions [mm]

28 x 16 x 51

Materials

PPO modified

Lens material

glass

Lens alignment

side lens

Displays / operating elements

Display

switching status

1 x LED, yellow

Accessories

Items supplied

Angle bracket: 1, E20211

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

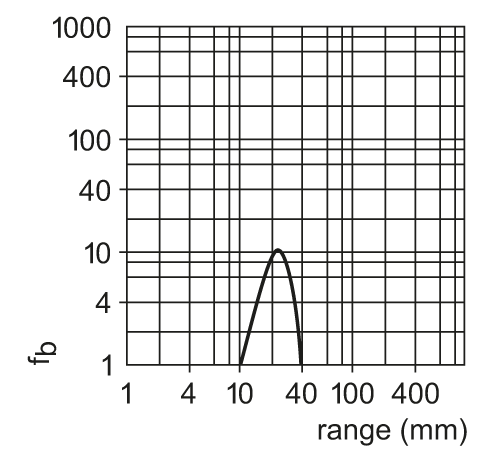

excess gain graph

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OU5084-00 — 27.02.2014 —
