OL0007

Through-beam sensor receiver

OLE-FKOA

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • Very long range
  • Intuitive setting of the sensitivity
  • Programmable light-on/dark-on mode
  • Robust housing for use in harsh industrial environments
  • LED display to check operation, switching status and function
  • ccc
  • ce
  • eac
Download
Technische Details
Product characteristics
Type of light infrared light
Housing rectangular
Dimensions [mm] 75 x 27 x 62
Application
Function principle Through-beam sensor
Electrical data
Frequency AC [Hz] 47...63
Operating voltage [V] 20...250 AC/DC
Max. power consumption [VA] 4
Protection class II
Reverse polarity protection no
Type of light infrared light
Wave length [nm] 880
Outputs
Electrical design relay
Output function light-on/dark-on mode; (programmable)
Contact rating 250 V AC / 3 A / 950 VA, 125 V DC / 5 A / 120 W
Switching frequency AC [Hz] 10
Switching frequency DC [Hz] 10
Short-circuit proof no
Overload protection no
Detection zone
Transmitter / receiver receiver
Range [m] < 25
Operating conditions
Ambient temperature [°C] -25...80
Protection IP 67
Tests / approvals
EMC
EN 60947-5-2
EN 55011 class B
MTTF [years] 233
Mechanical data
Weight [g] 166.5
Housing rectangular
Dimensions [mm] 75 x 27 x 62
Materials PA; PBT
Lens material
PMMA
Lens alignment side lens
Displays / operating elements
Display
switching status 1 x LED, yellow
operation 1 x LED, green
function 1 x LED, red
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection terminals: ...1.5 mm²; Cable sheath: Ø 4.5...10 mm; Cable gland: M16 X 1.5
Diagrams and graphs

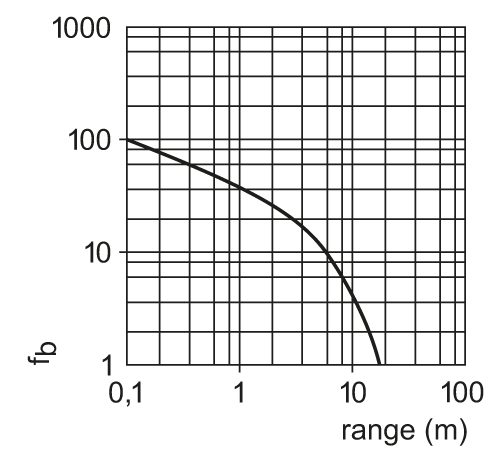

excess gain graph
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OL0007-00 — 06.03.2003 —
