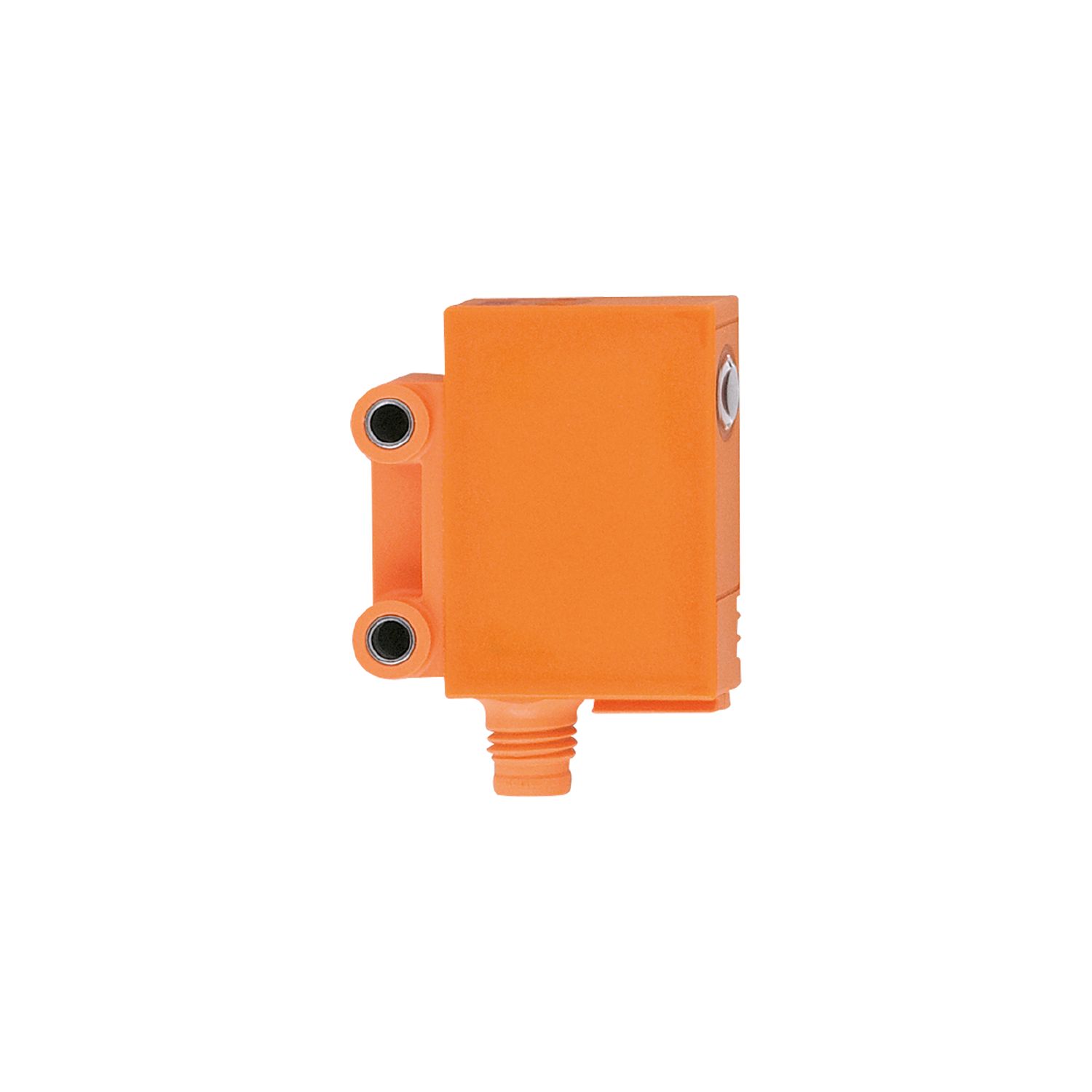

Retro-reflective laser sensor

OJR200

OJR-DPKG/SO/AS

Retro-reflective laser sensor

OJR200

OJR-DPKG/SO/AS

  • Particularly compact housing for use where space is restricted
  • Very long range
  • Simple alignment due to visible red light
  • Ready for operation immediately thanks to fixed setting
  • Fast mounting by means of mounting holes with robust stainless steel sleeve
discontinued article
Alternative articles: O6P202 Product comparison: OJR200 / O6P202 When selecting an alternative article and accessories please note that technical data may differ!
{{ifmVariantName}}



  • ce
  • eac
  • cul
Technical details
Product characteristics
Type of light red light
Housing rectangular
Dimensions [mm] 35 x 11 x 24
Application
Function principle Retro-reflective sensor
Electrical data
Operating voltage [V] 10...30 DC
Current consumption [mA] < 20
Protection class III
Reverse polarity protection yes
Type of light red light
Outputs
Electrical design PNP
Output function dark-on mode
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 200
Switching frequency DC [Hz] 1000
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Detection zone
Range referred to prismatic reflector [m] 1.8; (Prismatic reflector Ø 80 E20005)
Range adjustable no
Max. light spot diameter [mm] 64
Light spot dimensions refer to at maximum range
Operating conditions
Ambient temperature [°C] -25...60
Protection IP 67
Tests / approvals
EMC
EN 60947-5-2
MTTF [years] 905
Mechanical data
Weight [g] 15.5
Housing rectangular
Dimensions [mm] 35 x 11 x 24
Materials ABS; SEPS
Lens material
PMMA
Lens alignment side lens
Displays / operating elements
Display
switching status 1 x LED, yellow
Remarks
Remarks
operating voltage "supply class 2" according to cULus
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M8
