Diffuse reflection sensor
OGT501
OGT-FPKG/2M
Diffuse reflection sensor
OGT501
OGT-FPKG/2M
- Robust stainless steel housing for use in harsh industrial environments
- Very long range
- Intuitive setting of the sensitivity via pushbutton
- Wide range of fixing components for quick and easy mounting
- Excellent price/performance ratio
{{ifmVariantName}}
| Product characteristics | |||
|---|---|---|---|
| Type of light | red light | ||
| Housing | threaded type | ||
| Application | |||
| Function principle | Diffuse reflection sensor | ||
| Electrical data | |||
| Operating voltage [V] | 10...36 DC | ||
| Current consumption [mA] | 25 | ||
| Protection class | II | ||
| Reverse polarity protection | yes | ||
| Type of light | red light | ||
| Wave length [nm] | 624 | ||
| Outputs | |||
| Electrical design | PNP | ||
| Output function | light-on/dark-on mode; (programmable) | ||
| Max. voltage drop switching output DC [V] | 2.5 | ||
| Permanent current rating of switching output DC [mA] | 150; (200 (...60 °C)) | ||
| Switching frequency DC [Hz] | 2000 | ||
| Short-circuit protection | yes | ||
| Type of short-circuit protection | pulsed | ||
| Overload protection | yes | ||
| Detection zone | |||
| Range [mm] | 2...800; (white paper 200 x 200 mm 90% remission) | ||
| Factory setting |
|
||
| Range adjustable | yes | ||
| Max. light spot diameter [mm] | 66 | ||
| Light spot dimensions refer to | at maximum range | ||
| Monitoring range final value [mm] | 150...800 | ||
| Operating conditions | |||
| Ambient temperature [°C] | -25...80 | ||
| Protection | IP 67 | ||
| Tests / approvals | |||
| EMC |
|
||
| MTTF [years] | 473 | ||
| Mechanical data | |||
| Weight [g] | 136.3 | ||
| Housing | threaded type | ||
| Dimensions [mm] | M18 x 1 / L = 80.4 | ||
| Thread designation | M18 x 1 | ||
| Materials | stainless steel (1.4404 / 316L); PA; LCP; EPDM; TPU | ||
| Lens material |
|
||
| Displays / operating elements | |||
| Display |
|
||
| Teach function | yes | ||
| Electronic lock | yes | ||
| Accessories | |||
| Items supplied |
|
||
| Remarks | |||
| Remarks |
|
||
| Pack quantity | 1 pcs. | ||
| Electrical connection | |||
| Connection | Cable: 2 m, PUR; 3 x 0.34 mm² | ||
| Diagrams and graphs | |||

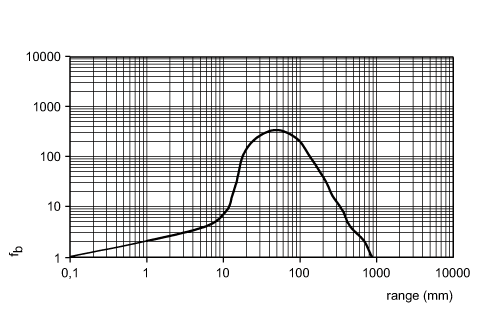

| excess gain graph |
|
||
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OGT501-00 — 07.07.2009 —
|
|||

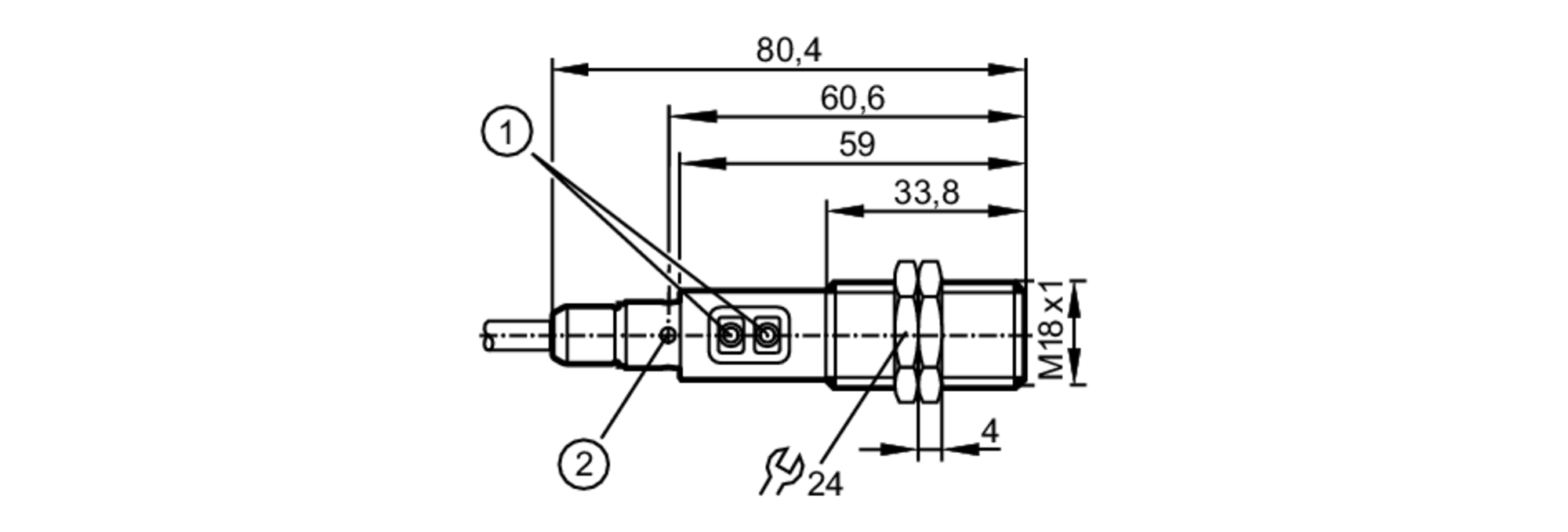

OGT501 –
OGT-FPKG/2M
- 1
- programming buttons
- 2
- LED 4 x 90°

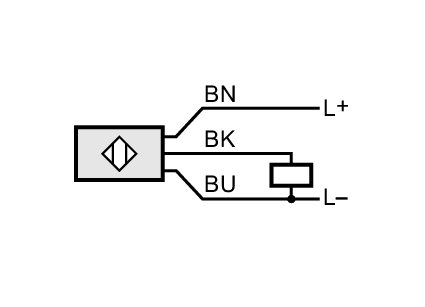

Electrical connection
Cable: 2 m, PUR; 3 x 0.34 mm²
Connection
- Core colours :
- BK =
- black
- BN =
- brown
- BU =
- blue
