| Product characteristics |
| Type of light |
red light |
| Housing |
rectangular with M18 thread |
| Application |
| Special feature |
Background suppression |
| Function principle |
Diffuse reflection sensor |
| Electrical data |
| Operating voltage [V] |
10...30 DC |
| Current consumption [mA] |
25 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Type of light |
red light |
| Wave length [nm] |
645 |
| Outputs |
| Electrical design |
NPN |
| Output function |
light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC [V] |
2.5 |
| Permanent current rating of switching output DC [mA] |
200 |
| Switching frequency DC [Hz] |
1000 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
pulsed |
| Overload protection |
yes |
| Detection zone |
| Range [mm] |
15...200; (white paper 200 x 200 mm 90% remission) |
| Range on white object (90 % remission) [mm] |
15...200 |
| Range on grey object (18 % remission) [mm] |
15...200 |
| Range on black object (6 % remission) [mm] |
15...200 |
| Range adjustable |
yes |
| Max. light spot diameter [mm] |
13 |
| Light spot dimensions refer to |
at maximum range |
| Background suppression available |
yes |
| Interfaces |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
Measuring Sensor, Identification and Diagnosis, Switching Signal Channel, Teach Channel |
| SIO mode |
yes |
| Required master port type |
A |
| Min. process cycle time [ms] |
10 |
| IO-Link process data (cyclical) |
| function |
bit length |
| process value |
16 |
| device status |
4 |
| binary switching information |
1 |
|
| IO-Link functions (acyclical) |
application specific tag; operating hours counter; switching cycles counter |
| Supported DeviceIDs |
| Type of operation |
DeviceID |
| Default |
1165 |
|
| Note |
| For further information please see the IODD PDF file under "Downloads" |
|
| Operating conditions |
| Ambient temperature [°C] |
-25...60 |
| Storage temperature [°C] |
-40...60 |
| Protection |
IP 65; IP 67 |
| Tests / approvals |
| EMC |
|
| MTTF [years] |
782 |
| UL approval |
| Ta |
-25...60 °C |
| Enclosure type |
Type 1 |
| power supply |
Class 2 |
| File number UL |
E174191 |
|
| Mechanical data |
| Weight [g] |
60 |
| Housing |
rectangular with M18 thread |
| Dimensions [mm] |
52.6 x 19 x 35.6 |
| Thread designation |
M18 x 1 |
| Materials |
diecast zinc; PEI |
| Lens material |
|
| Lens alignment |
side lens |
| Displays / operating elements |
| Display |
| switching status |
1 x LED, yellow |
| operation |
1 x LED, green |
|
| Accessories |
| Items supplied |
|
| Remarks |
| Pack quantity |
1 pcs. |

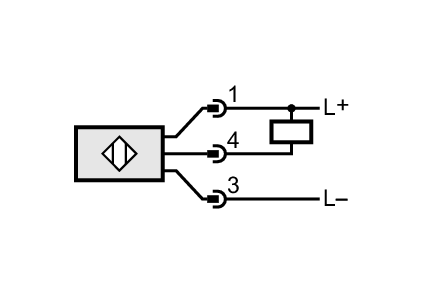

| Electrical connection |
| Connection |
Connector: 1 x M12; coding: A |
| Diagrams and graphs |
|
|
a:
|
sensor |
|
b:
|
object |
|
c:
|
background |
|
x:
|
distance sensor/object [mm] |
|
y:
|
min. distance object/background [mm] |
|

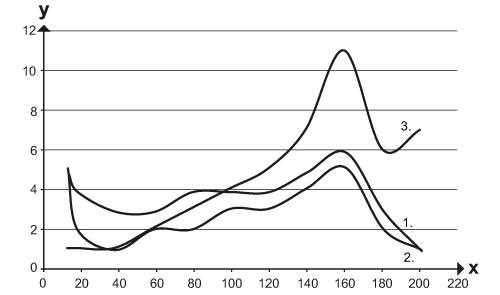

| accuracy graph |
|
x:
|
distance sensor/object [mm] |
|
y:
|
min. distance object/background [mm] |
|
1 =
|
object black (6 % remission) , background (white 90 % remission) |
|
2 =
|
object grey (18 % remission) , background (white 90 % remission) |
|
3 =
|
object white (90 % remission) , background (white 90 % remission) |
|
| Other data |
| Repeatability / precision: 6 σ |
|
repeatability of the measured values |
|
| Abstand |
white (90 % remission) |
black (6 %...90 % remission) |
| 20 mm |
0.5 mm |
1.0 mm |
| 50 mm |
0.8 mm |
2.0 mm |
| 100 mm |
1.5 mm |
4.5 mm |
| 150 mm |
3.0 mm |
9.0 mm |
| 200 mm |
6.0 mm |
20.0 mm |
|
|
|
|
accuracy |
|
| Abstand |
white (90 % remission) |
black (6 %...90 % remission) |
| 20 mm |
± 2.0 mm |
± 2.5 mm |
| 50 mm |
± 3.5 mm |
± 4.5 mm |
| 100 mm |
± 6.0 mm |
± 7.5 mm |
| 150 mm |
± 7.5 mm |
± 11.0 mm |
| 200 mm |
± 10.0 mm |
± 17.0 mm |
|
| The values apply at |
|
| Extraneous light on the object |
< 10 klx |
| constant ambient conditions |
23 °C / 960 hPa |
| minimum power-on time in minutes |
10 |
|
