Diffuse reflection sensor with background suppression

OGH200

OGH-HPKG/US100

Diffuse reflection sensor with background suppression

OGH200

OGH-HPKG/US100

  • Robust stainless steel housing for use in harsh industrial environments
  • Precise background suppression
  • Intuitive setting of the sensitivity via potentiometer
  • Wide range of fixing components for quick and easy mounting
  • Excellent price/performance ratio
{{ifmVariantName}}

PDF data sheet
  • ce
  • ukca
  • eac
  • cul
Technical details
Product characteristics
Type of light red light
Housing threaded type
Application
Special feature Background suppression
Function principle Diffuse reflection sensor
Electrical data
Operating voltage [V] 10...36 DC
Current consumption [mA] 25
Protection class II
Reverse polarity protection yes
Type of light red light
Wave length [nm] 624
Outputs
Electrical design PNP
Output function light-on mode
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 200
Switching frequency DC [Hz] 1000
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Detection zone
Range [mm] 15...250; (white paper 200 x 200 mm 90% remission)
Range on white object (90 % remission) [mm] 15...250
Range on grey object (18 % remission) [mm] 15...230
Range on black object (6 % remission) [mm] 15...160
Range adjustable yes
Max. light spot diameter [mm] 21
Light spot dimensions refer to at maximum range
Background suppression available yes
Operating conditions
Ambient temperature [°C] -25...60
Protection IP 65
Tests / approvals
EMC
EN 60947-5-2
MTTF [years] 339
Mechanical data
Weight [g] 53.2
Housing threaded type
Dimensions [mm] M18 x 1 / L = 72
Thread designation M18 x 1
Materials housing: stainless steel; operator interface: TPE
Lens material
PMMA
Displays / operating elements
Display
switching status 1 x LED, yellow
Operating elements
potentiometer
Accessories
Items supplied
lock nuts: 2 x
Remarks
Remarks
operating voltage "supply class 2" according to cULus
Pack quantity 1 pcs.

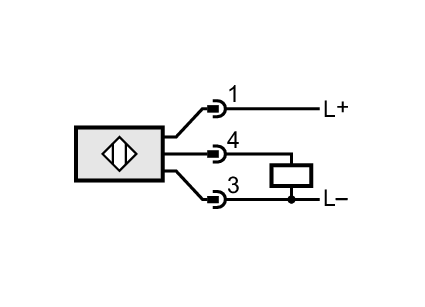

Electrical connection
Connection Connector: 1 x M12; coding: A
Diagrams and graphs

a: sensor
b: object
c: background
x: distance sensor/object [mm]
y: min. distance object/background [mm]
accuracy graph
x: distance sensor/object [mm]
y: min. distance object/background [mm]
1 = object black (6 % remission) , background (white 90 % remission)
2 = object grey (18 % remission) , background (white 90 % remission)
3 = object white (90 % remission) , background (white 90 % remission)
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OGH200-01 — 20.03.2012 —
