- OGE383
Through-beam sensor receiver
OGE383
OGE-DPKG/US/V4A/CUBE IR
Through-beam sensor receiver
OGE383
OGE-DPKG/US/V4A/CUBE IR
- Robust stainless steel housing for use in the food and beverage industry
- Resistant to high-pressure cleaning with aggressive cleaning agents
- High protection rating for the requirements of harsh industrial environments
- Ready for operation immediately thanks to fixed setting
- Very long range
customer-specific
{{ifmVariantName}}
| Product characteristics | |||||
|---|---|---|---|---|---|
| Type of light | infrared light | ||||
| Housing | rectangular | ||||
| Application | |||||
| Function principle | Through-beam sensor | ||||
| Electrical data | |||||
| Operating voltage [V] | 10...30 DC | ||||
| Current consumption [mA] | 16 | ||||
| Protection class | III | ||||
| Reverse polarity protection | yes | ||||
| Type of light | infrared light | ||||
| Wave length [nm] | 860 | ||||
| Outputs | |||||
| Electrical design | PNP | ||||
| Output function | dark-on mode | ||||
| Max. voltage drop switching output DC [V] | 2.5 | ||||
| Permanent current rating of switching output DC [mA] | 200 | ||||
| Switching frequency DC [Hz] | 1000 | ||||
| Short-circuit protection | yes | ||||
| Type of short-circuit protection | pulsed | ||||
| Overload protection | yes | ||||
| Detection zone | |||||
| Transmitter / receiver | receiver | ||||
| Range [m] | < 15 | ||||
| Range adjustable | no | ||||
| Operating conditions | |||||
| Ambient temperature [°C] | -25...80 | ||||
| Storage temperature [°C] | -40...80 | ||||
| Protection | IP 65; IP 67; IP 68; IP 69K | ||||
| Tests / approvals | |||||
| EMC |
|
||||
| MTTF [years] | 961 | ||||
| Mechanical data | |||||
| Weight [g] | 78 | ||||
| Housing | rectangular | ||||

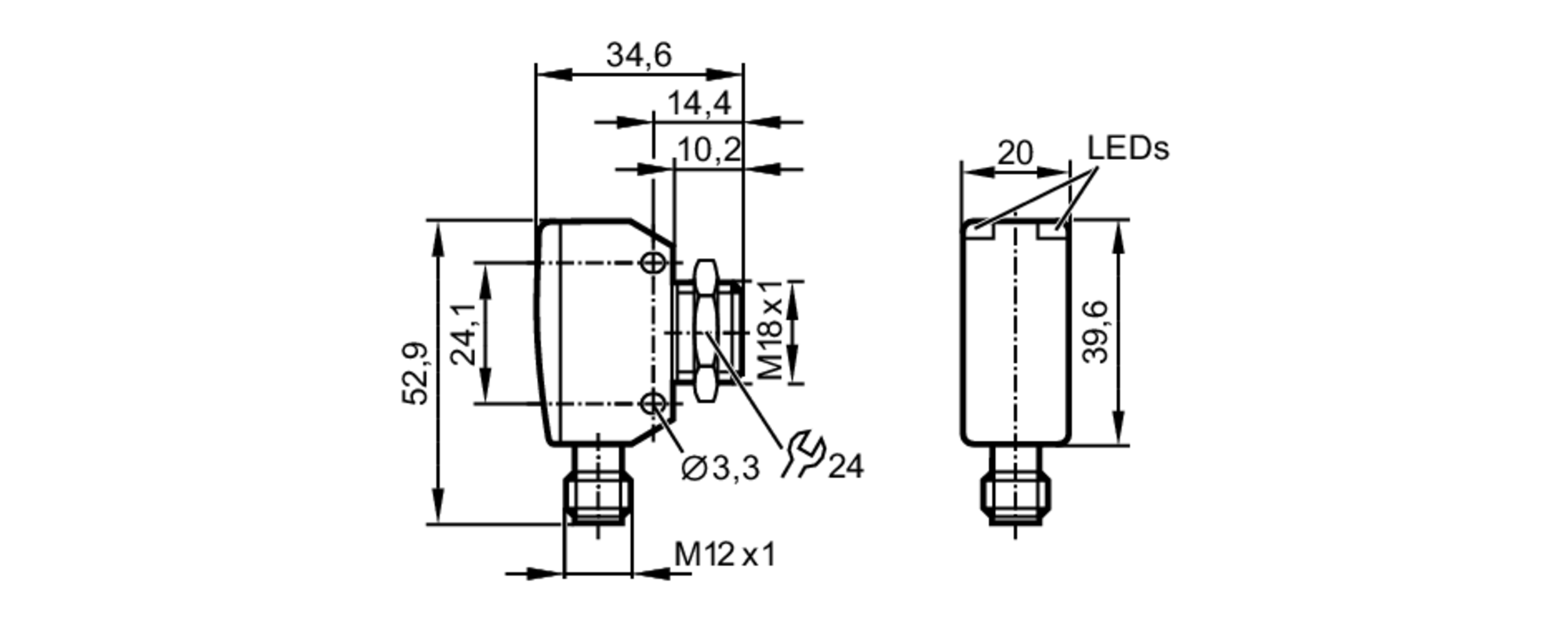

| Dimensions [mm] | 52.9 x 20 x 34.6 | ||||
| Thread designation | M18 x 1 | ||||
| Materials | 1.4542 (17-4 PH / 630); PEI | ||||
| Lens material |
|
||||
| Lens alignment | side lens | ||||
| Displays / operating elements | |||||
| Display |
|
||||
| Accessories | |||||
| Items supplied |
|
||||
| Remarks | |||||
| Remarks | |||||
| Notes | customer-specific | ||||
| Pack quantity | 1 pcs. | ||||
| Electrical connection | |||||
| Connection | Connector: 1 x M12; coding: A | ||||
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OGE383-01 — 05.03.2021 —
|
|||||
OGE383 –
OGE-DPKG/US/V4A/CUBE IR

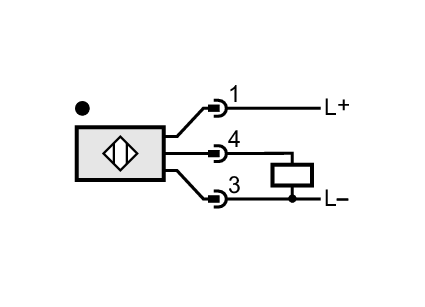

Electrical connection
Connector: 1 x M12; coding: A
