OF5061

Retro-reflective sensor

OF5061

OFP-FNKG

Retro-reflective sensor

OF5061

OFP-FNKG

Article no longer available - archive entry

Alternative articles: OF5062 Product comparison: OF5061 / OF5062 When selecting an alternative article and accessories please note that technical data may differ!

Product characteristics

Type of light	red light
Housing	threaded type

Application

Special feature	polarisation filter
Function principle	Retro-reflective sensor

Electrical data

Operating voltage [V]	10...36 DC
Current consumption [mA]	< 30
Protection class	II
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	660

Outputs

Electrical design	NPN
Output function	light-on/dark-on mode; (parameterisable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	320
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Range [m]	0.2...0.8; (Prismatic reflector Ø 80 E20005)
Range referred to prismatic reflector [m]	0.2...0.8; (Prismatic reflector Ø 80 E20005)
Max. light spot diameter [mm]	70
Light spot dimensions refer to	at maximum range
Polarisation filter available	yes

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 67

Tests / approvals

EMC

EN 60947-5-2

Mechanical data

Weight [g]

0.091

Housing

threaded type

Dimensions [mm]

M12 x 1 / L = 60

Thread designation

M12 x 1

Materials

brass nickel-plated

Lens material

PMMA

Displays / operating elements

Display

switching status	1 x LED, yellow
operation	1 x LED, green

Accessories

Items supplied

lock nuts: 2

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PUR; 3 x 0.34 mm²

Diagrams and graphs

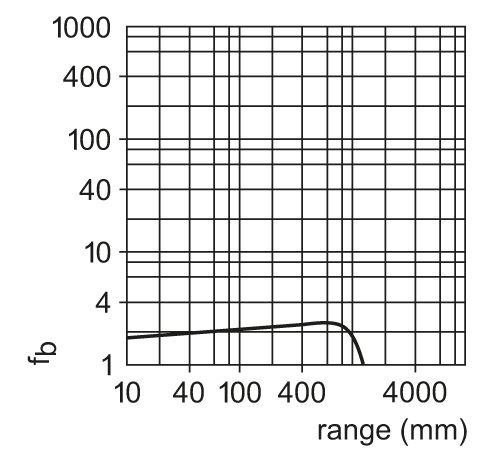

excess gain graph

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OF5061-01 — 14.11.2011 —
