OD5013

Colour sensor

OD5013

ODF-MPKG/US

Colour sensor

OD5013

ODF-MPKG/US

Article no longer available - archive entry

Product characteristics

Type of light	red light; green light; blue light
Housing	rectangular

Application

Application	colour recognition

Electrical data

Operating voltage [V]	12...30 DC; (Max. residual ripple: 5 Vss)
Current consumption [mA]	80
Protection class	II
Type of light	red light; green light; blue light
Typ. lifetime [h]	100000
Reference temperature for service life [°C]	25

Outputs

Electrical design	PNP
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	1000

Detection zone

Range [m]	0.002...0.004; (Through-beam sensor)
Range [mm]	< 9; (in diffuse reflection mode)

Response times

Response time [s]	0.7

Operating conditions

Ambient temperature [°C]	-10...55
Protection	IP 67
Max. immunity to extraneous light [klx]	20

Tests / approvals

EMC

EN 60947-5-2

Mechanical data

Weight [g]	377
Housing	rectangular
Dimensions [mm]	53 x 30 x 103
Materials	diecast zinc

Displays / operating elements

Display

operation	1 x LED, green
function	1 x LED, yellow

Accessories

Items supplied

Lock nut: 2

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

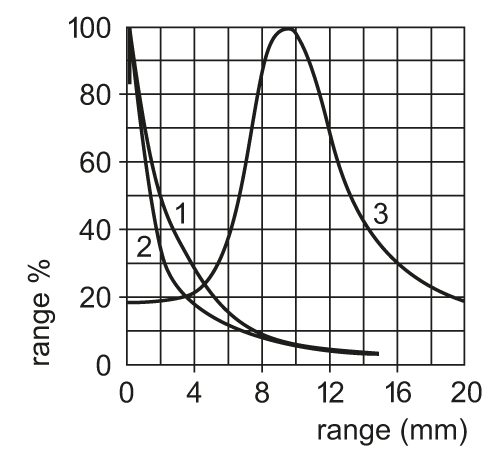

accuracy graph

x:	distance sensor/object [mm]
y:	min. distance object/background [mm]
1 =	object black (6 % remission) , background white (90 % remission)
2 =	object grey (18 % remission) , background white (90 % remission)
3 =	object white (90 % remission) , background white (90 % remission)
	Note : range % = setting in % of the range

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OD5013-00 — 30.11.2006 —
