OA5103

Through-beam sensor receiver

OA5103

OAE-FCKG/T

Through-beam sensor receiver

OA5103

OAE-FCKG/T

Article no longer available - archive entry

Alternative articles: O4E500 Product comparison: OA5103 / O4E500 When selecting an alternative article and accessories please note that technical data may differ!

Product characteristics

Type of light	infrared light
Housing	rectangular

Application

Special feature	Function check output
Function principle	Through-beam sensor

Electrical data

Operating voltage [V]	10...36 DC
Current consumption [mA]	< 50
Protection class	II
Reverse polarity protection	yes
Type of light	infrared light
Wave length [nm]	880

Outputs

Electrical design	PNP/NPN
Output function	light-on/dark-on mode; (parameterisable)
Function check output	yes
Max. current load for function check output [mA]	10
Permanent current rating of switching output DC [mA]	250
Max. current load in dual output mode [mA]	100
Switching frequency DC [Hz]	300
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes
Time function [s]	0.5...10

Detection zone

Transmitter / receiver	receiver
Range [m]	< 50
Range adjustable	yes

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 65

Tests / approvals

EMC

EN 60947-5-2

Mechanical data

Weight [g]

0.287

Housing

rectangular

Dimensions [mm]

90 x 30 x 70

Materials

PPO modified

Lens material

PMMA

Displays / operating elements

Display

switching status	1 x LED, yellow
operation	1 x LED, green
function	1 x LED, red

Operating elements

on-delay or off-delay selectable via slide switch

Accessories

Items supplied

Angle bracket: 1, E20514

screwdrivers

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	terminals: ...1.5 mm²; Cable sheath: Ø 4.5...10 mm; Cable gland: M16 X 1.5

Diagrams and graphs

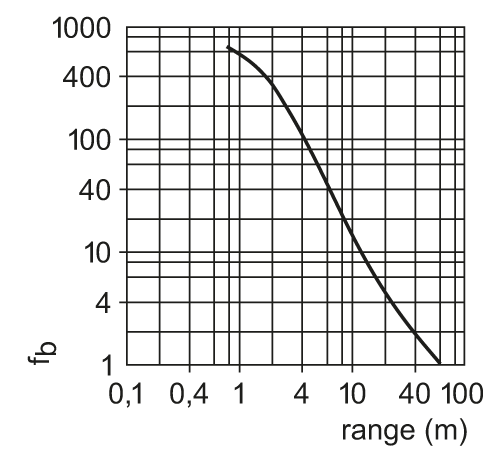

excess gain graph

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OA5103-00 — 12.02.2007 —
