  6. LDP100

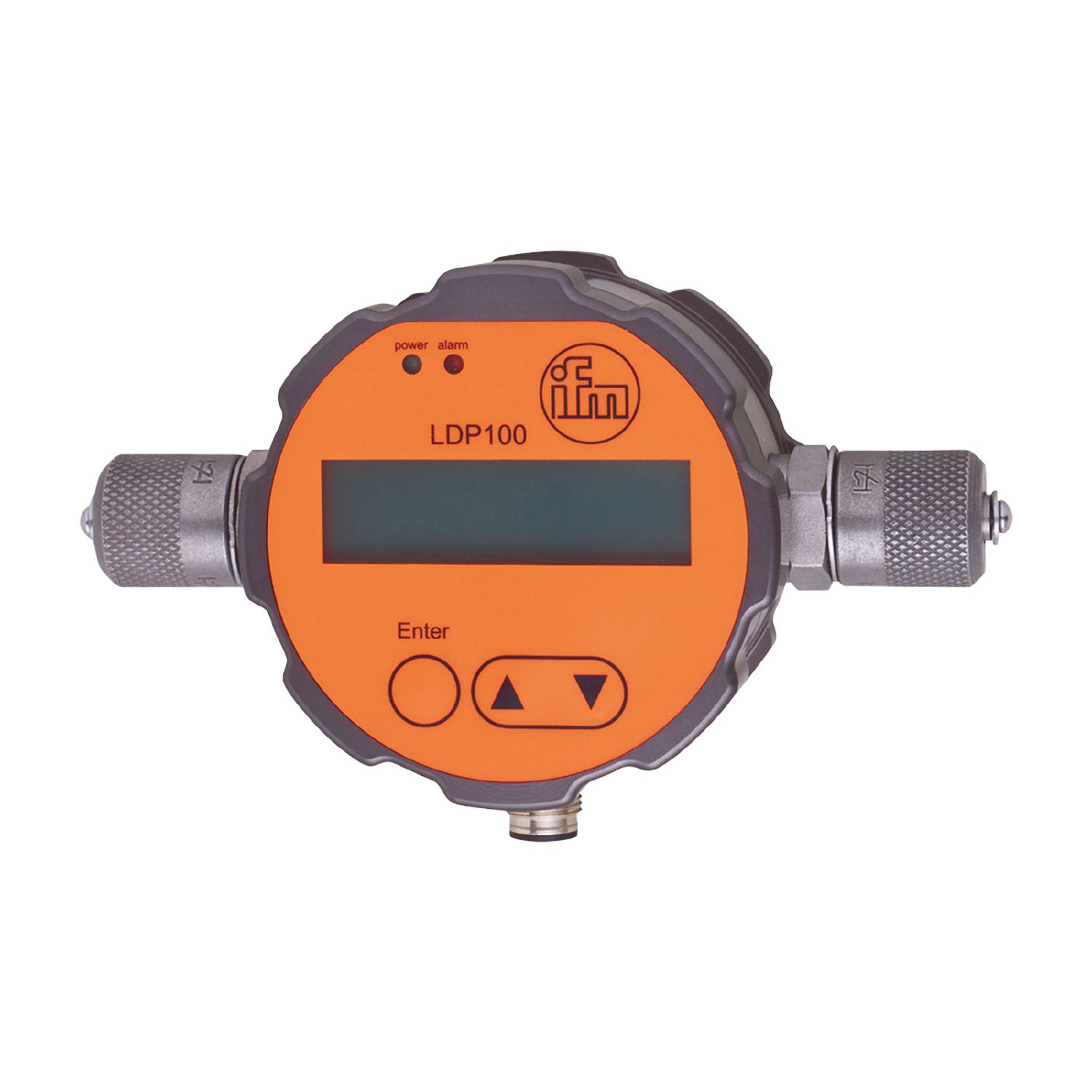

Optical oil particle monitor


{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • Trend monitoring by analysis of the particle concentration
  • Indication of purity class on the LCD display
  • Applications up to 420 bar
  • Intuitive, user-friendly handling
  • CAN bus, analogue and switching outputs
  • ce
Comprehensive technical data in pdf format

Technische Details
Product characteristics
Number of inputs and outputs Number of digital outputs: 1; Number of analogue outputs: 1
Media mineral oils (e.g. HLP); ester oils (e.g. HEES); biodegradable oils (e.g. HETG)
Medium temperature [°C] -10...80
Electrical data
Operating voltage [V] 9...33 DC
Current consumption [mA] 9...50
Protection class III
Inputs / outputs
Number of inputs and outputs Number of digital outputs: 1; Number of analogue outputs: 1
Total number of outputs 2
Number of digital outputs 1
Permanent current rating of switching output DC [mA] 500
Number of analogue outputs 1
Analogue current output [mA] 4...20
Max. load [Ω] (Ub - 4 V) / 20 mA; Ub = 24 V: 1000
Short-circuit proof no
Overload protection no
Measuring/setting range
Measuring range 10...22; (range number)
Display range 0...24; (range number)
Accuracy / deviations
Accuracy ± 1; (range number)
Software / programming
Parameter setting options via buttons, PC or digital I/O
Communication interface CAN
Operating conditions
Ambient temperature [°C] -10...60
Storage temperature [°C] -20...60
Protection IP 67
Tests / approvals
MTTF [years] 129
Pressure Equipment Directive article 3, paragraph (3) - Sound Engineering Practice
Mechanical data
Weight [g] 829
Materials (wetted parts) stainless steel (1.4028 / 420); sapphire; NBR; chromium
Displays / operating elements
LC display, displayed value conforms to the cleanliness level to ISO 4406:99 and SAE AS4059E
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — LDP100-00 — 17.10.2013 —
