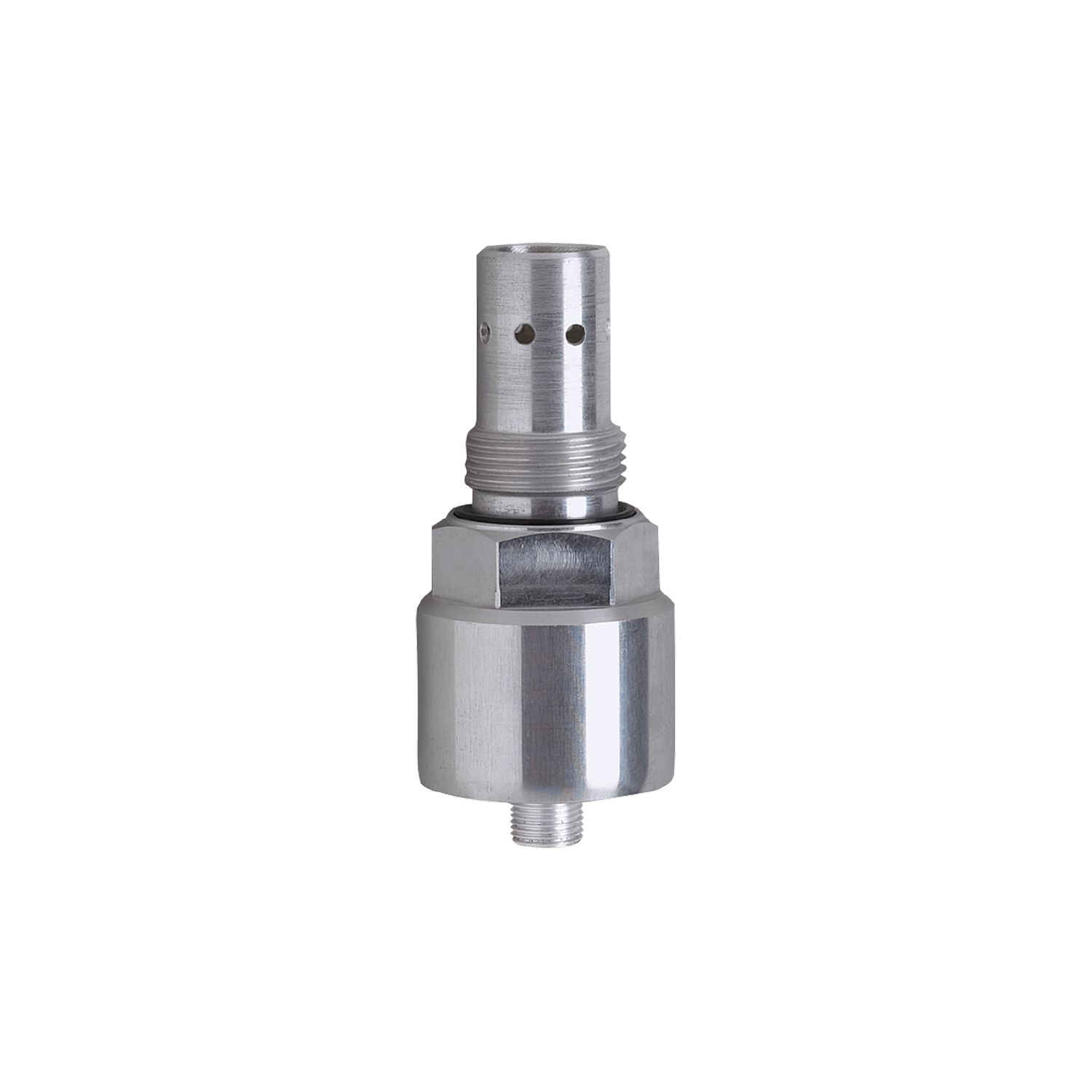

- LDH100
Product characteristics
Number of inputs and outputs | Number of analogue outputs: 2 |
---|---|
Process connection | G 3/4 |
Application
Media | mineral oils; synthetic esters; biodegradable oils |
---|---|
Tank pressure [bar] | 50 |
Medium temperature [°C] | -40...105 |
---|
Electrical data
Operating voltage [V] | 9...33 DC |
---|---|
Current consumption [mA] | < 25 |
Protection class | III |
Reverse polarity protection | no |
Measuring principle | capacitive |
Inputs / outputs
Number of inputs and outputs | Number of analogue outputs: 2 |
---|
Outputs
Total number of outputs | 2 |
---|---|
Number of analogue outputs | 2 |
Analogue current output [mA] | 4...20 |
Max. load [Ω] | (Ub - 8) x 25 |
Resolution of analogue output | φ: 1% / T: 0.1 K |
Measuring/setting range
Measuring range [°C] | -20...120 |
---|
Accuracy / deviations
Accuracy | φ: ± 3 % / T: ± 2 % |
---|
Response times
Response time [s] | 1.3 |
---|
Operating conditions
Ambient temperature [°C] | -40...85 |
---|---|
Storage temperature [°C] | -40...85 |
Max. relative air humidity [%] | 100 |
Protection | IP 67 |
Tests / approvals
EMC |
|
||||||
---|---|---|---|---|---|---|---|
Vibration resistance |
|
||||||
MTTF [years] | 90 |
Mechanical data
Weight [g] | 176.5 |
---|---|
Materials (wetted parts) | aluminium; HNBR; polyurethane resin; epoxy resin |
Process connection | G 3/4 |
Remarks
Remarks |
|
|
---|---|---|
Pack quantity | 1 pcs. |
Electrical connection
Connection | Connector: 1 x M12; coding: A |
---|
