Inductive sensor
IG5765
IGA3008ZBPKG/US-100-DPS
Inductive sensor
IG5765
IGA3008ZBPKG/US-100-DPS
- Robust metal housing for use in harsh industrial environments
- Wide operating temperature range
{{ifmVariantName}}
| Product characteristics | |||
|---|---|---|---|
| Electrical design | PNP | ||
| Output function | normally open | ||
| Sensing range [mm] | 8 | ||
| Housing | threaded type | ||

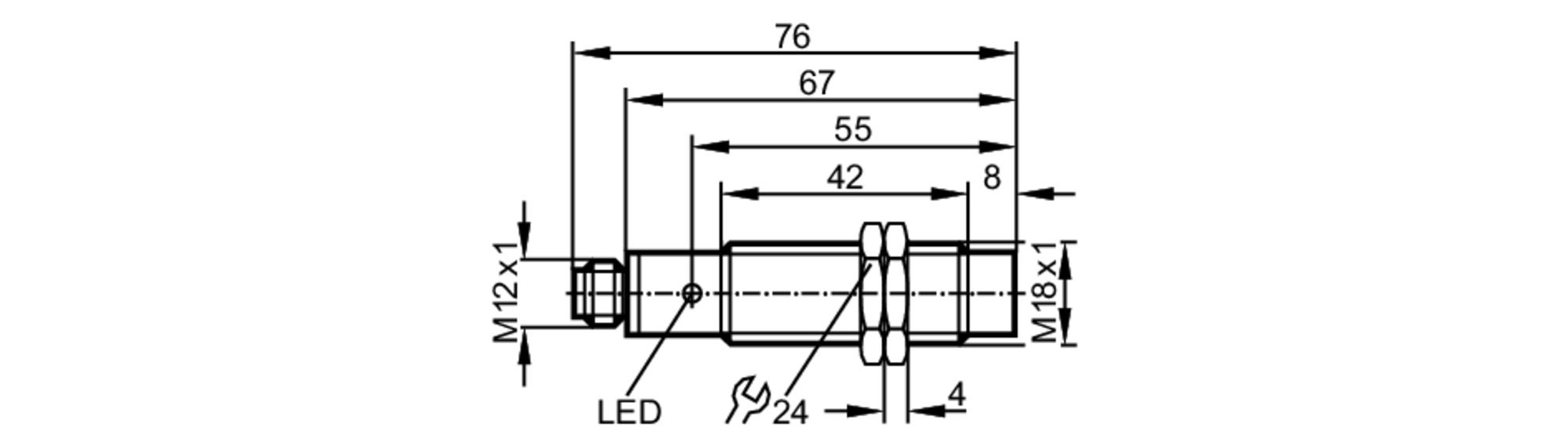

| Dimensions [mm] | M18 x 1 / L = 76 | ||
| Electrical data | |||
| Operating voltage [V] | 10...36 DC | ||
| Current consumption [mA] | 15; (24 V) | ||
| Protection class | II | ||
| Reverse polarity protection | yes | ||
| Outputs | |||
| Electrical design | PNP | ||
| Output function | normally open | ||
| Max. voltage drop switching output DC [V] | 2.5 | ||
| Permanent current rating of switching output DC [mA] | 100; (250 (...80 °C)) | ||
| Switching frequency DC [Hz] | 300 | ||
| Short-circuit protection | yes | ||
| Type of short-circuit protection | pulsed | ||
| Overload protection | yes | ||
| Detection zone | |||
| Sensing range [mm] | 8 | ||
| Real sensing range Sr [mm] | 8 ± 10 % | ||
| Operating distance [mm] | 0...6.5 | ||
| Accuracy / deviations | |||
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 | ||
| Hysteresis [% of Sr] | 1...15 | ||
| Switch point drift [% of Sr] | -10...10 | ||
| Operating conditions | |||
| Ambient temperature [°C] | -25...100 | ||
| Protection | IP 65 | ||
| Tests / approvals | |||
| EMC |
|
||
| MTTF [years] | 1853 | ||
| Mechanical data | |||
| Weight [g] | 59.4 | ||
| Housing | threaded type | ||
| Mounting | non-flush mountable | ||
| Dimensions [mm] | M18 x 1 / L = 76 | ||
| Thread designation | M18 x 1 | ||
| Materials | brass nickel-plated; PC | ||
| Displays / operating elements | |||
| Display |
|
||
| Accessories | |||
| Items supplied |
|
||
| Remarks | |||
| Pack quantity | 1 pcs. | ||
| Electrical connection - plug | |||
| Connection | Connector: 1 x M12; coding: A | ||
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IG5765-00 — 07.02.2013 —
|
|||
IG5765 –
IGA3008ZBPKG/US-100-DPS
Electrical connection - plug
Connector: 1 x M12; coding: A
