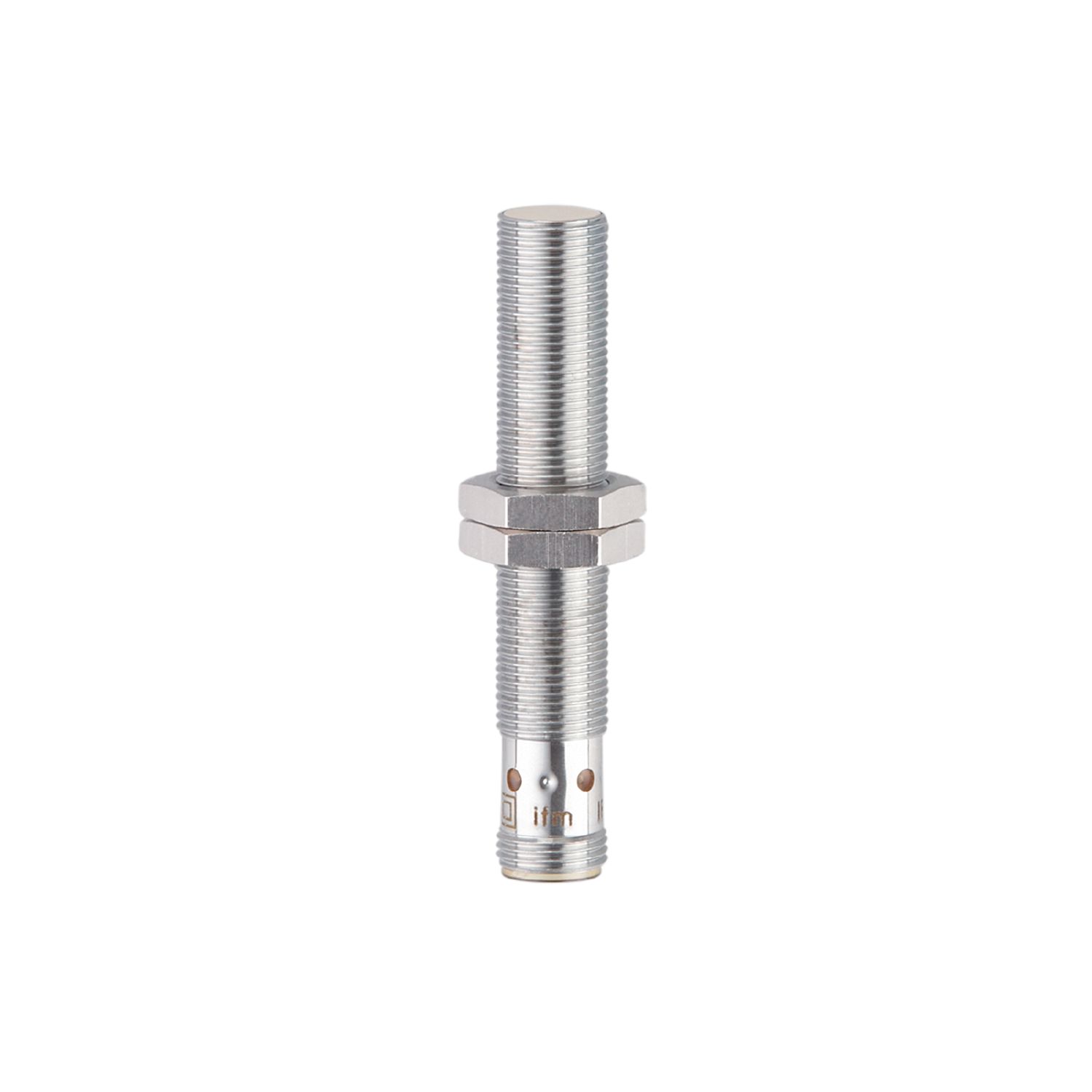

| Product characteristics |
| Electrical design |
PNP/NPN |
| Output function |
normally open |
| Sensing range [mm] |
4 |
| Housing |
threaded type |
| Dimensions [mm] |
M12 x 1 / L = 70 |
| Application |
| Special feature |
Gold-plated contacts; Increased sensing range |
| Application |
Use in mobile and harsh applications |
| Electrical data |
| Operating voltage [V] |
10...36 DC |
| Current consumption [mA] |
< 10; (only in 3-wire operation) |
| Protection class |
II |
| Reverse polarity protection |
yes |
| Outputs |
| Electrical design |
PNP/NPN |
| Output function |
normally open |
| Max. voltage drop switching output DC [V] |
2.5 |
| Minimum load current [mA] |
2; (only in 2-wire operation) |
| Max. leakage current [mA] |
0.5; (only in 2-wire operation) |
| Permanent current rating of switching output DC [mA] |
100 |
| Switching frequency DC [Hz] |
400 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
pulsed |
| Overload protection |
yes |
| Detection zone |
| Sensing range [mm] |
4 |
| Operating distance [mm] |
0...3.24 |
| Increased sensing range |
yes |
| Accuracy / deviations |
| Correction factor |
steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.5 / copper: 0.4 |
| Hysteresis [% of Sr] |
1...20 |
| Operating conditions |
| Ambient temperature [°C] |
-40...85 |
| Protection |
IP 67; IP 69K |
| Tests / approvals |
| EMC |
| automotive area |
|
| noise emission and noise interference: ECE R10 |
E1 type approval |
| noise immunity according to DIN ISO 11452-2 |
100 V/m |
| conducted interference in 24 V networks to ISO 7637-2: 2004 (pulse 1 to 4) and ISO16750-2: 2012 (load dump) |
|
| pulse |
1 2a 2b 3a 3b 4 Load dump |
| severity level |
III III III III III III Test A |
| failure criterion |
C A C A A C C |
| EN 61000-4-2 ESD |
4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated |
10 V/m |
| EN 61000-4-4 Burst |
2 kV |
| EN 61000-4-5 Surge |
0,5 kV mains line to line |
| EN 61000-4-6 HF conducted |
10 V |
| EN 55011 |
class B |
|
| Vibration resistance |
| EN 60068-2-6 Fc |
20 g (10...3000 Hz) / -20...50 °C |
|
50 sweep cycles, 1 octave per minute, in 3 axes |
|
| Shock resistance |
| EN 60068-2-27 Ea |
100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes / -40...85 °C |
|
| Continuous shock resistance |
| EN 60068-2-27 |
40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes / -20...50 °C |
|
| Fast temperature change |
| EN 60068-2-14 Na |
TA = -40 °C; TB = 85 °C; t1 = 30 min; t2 = < 10 s; 50 cycles |
|
| Salt spray test |
| EN 60068-2-52 Kb |
severity level 5 (4 test cycles) |
|
| MTTF [years] |
691 |
| UL approval |
| Ta |
0...40 °C |
| Enclosure type |
Type 1 |
| power supply |
Hazardous voltage |
| File number UL |
E174191 |
|
| Mechanical data |
| Weight [g] |
30.4 |
| Housing |
threaded type |
| Mounting |
flush mountable |
| Dimensions [mm] |
M12 x 1 / L = 70 |
| Thread designation |
M12 x 1 |
| Materials |
housing: stainless steel; sensing face: LCP natural; LED window: PEI; lock nuts: brass |
| Displays / operating elements |
| Display |
| switching status |
4 x 90° LED, yellow |
|
| Accessories |
| Items supplied |
|
| Remarks |
| Pack quantity |
1 pcs. |
| Electrical connection - plug |
|
Connector: 1 x M12; coding: A; Contacts: gold-plated |
