  6. IF5764

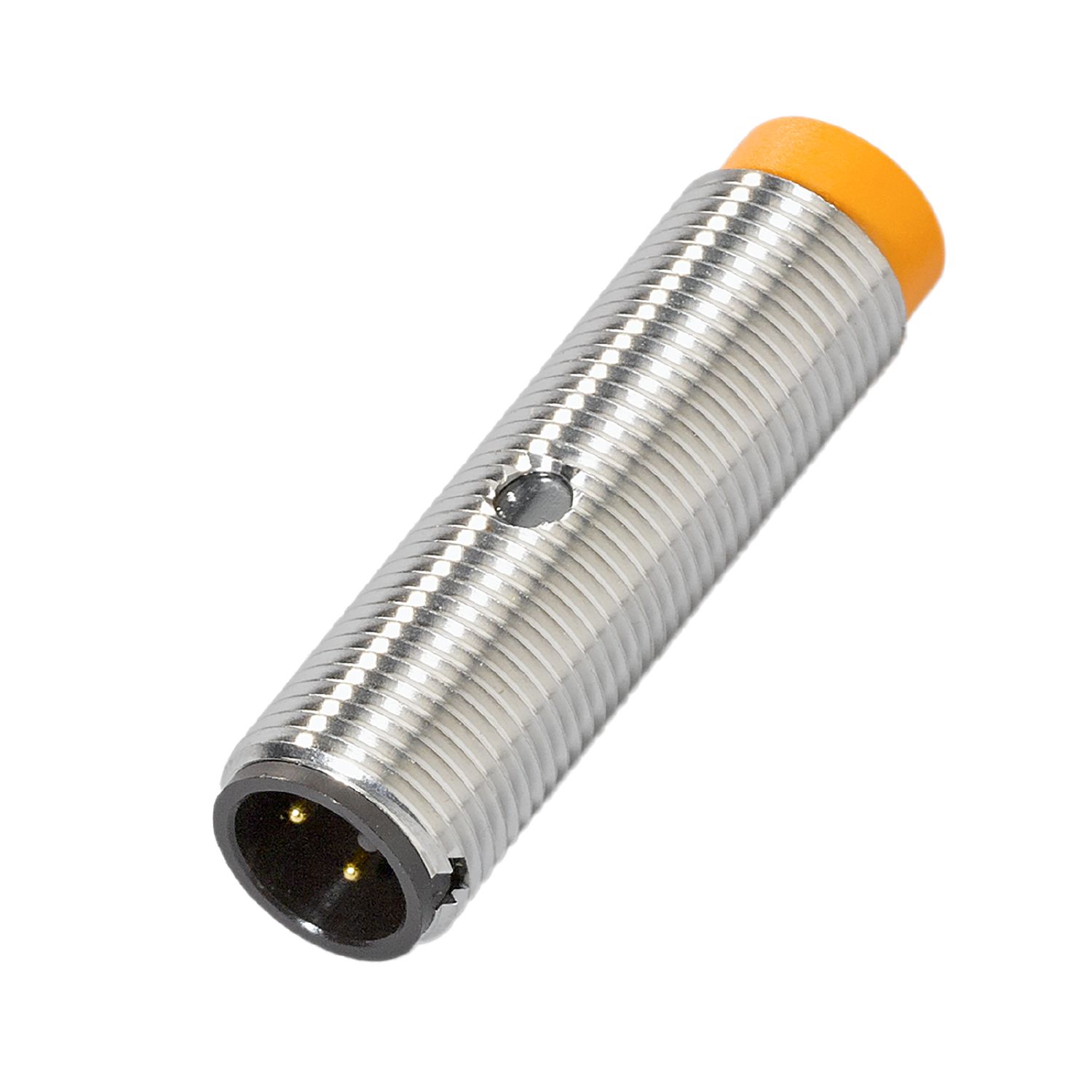

Inductive sensor

IFB3004-BPKG/US-100-DPS RT

IF5764

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • Particularly short housing
  • For use where space is restricted
  • Very high switching frequency
  • Wide operating temperature range
  • Robust metal housing for use in harsh industrial environments
  • ce
Download
Technische Details
Electrical data
Operating voltage [V] 10...36 DC
Current consumption [mA] 15; (24 V)
Protection class III
Reverse polarity protection yes
Outputs
Output function normally open
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 125; (150 (...50 °C))
Switching frequency DC [Hz] 1500
Electrical design PNP
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Range
Sensing range [mm] 4
Real sensing range Sr [mm] 4 ± 10 %
Operating distance [mm] 0...3.25
Accuracy / deviations
Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr] 3...15
Switch point drift [% of Sr] -10...10
Operating conditions
Ambient temperature [°C] -25...80
Protection IP 67
Tests / approvals
EMC
EN 60947-5-2
EN 55011 class B
MTTF [years] 2531
Mechanical data
Weight [g] 26.4
Housing threaded type
Mounting non-flush mountable
Dimensions [mm] M12 x 1 / L = 43
Thread designation M12 x 1
Materials brass nickel-plated; PC
Displays / operating elements
Display
switching status 1 x LED, red
Accessories
Accessories (supplied)
lock nuts: 2
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12
