draw-wire mechanism

E61440

DRAW WIRE 2400

draw-wire mechanism E61440
draw-wire mechanism E61440
draw-wire mechanism E61440
draw-wire mechanism E61440
draw-wire mechanism E61440
draw-wire mechanism E61440

draw-wire mechanism

E61440

DRAW WIRE 2400

PDF data sheet
Product characteristics
Shaft design solid shaft
Shaft diameter [mm] 6
Application
Design for encoders with 58 mm synchro flange and 6 mm solid shaft
Accuracy / deviations
Accuracy ± 0.1 % FSO
Repeatability ± 0,04 % FSO
Operating conditions
Ambient temperature [°C] -20...80
Storage temperature [°C] -20...80
Storage humidity [%] 5...95; (non condensing)
Tests / approvals
Shock resistance
IEC628-2-27 50 g / 5 ms
Vibration resistance
IEC68-2-6 20 g / 20..200 Hz
Mechanical data
Weight [g] 598.5
Top flange diameter [mm] 58
Materials housing: PA; wire: stainless steel polyamide coated
Shaft design solid shaft
Shaft diameter [mm] 6
Max. measuring length [mm] 2400
Wire drum circumference [mm] 150.8
Wire diameter [mm] 0.45
Wire connection snap hook
Wire properties
max. speed of wire displacement [m /s] 1
max. wire acceleration [g] 5
max. extension force [N] 7
min. retraction force [N] 1
Fixing flange synchro-flange
Remarks
Pack quantity 1 pcs.

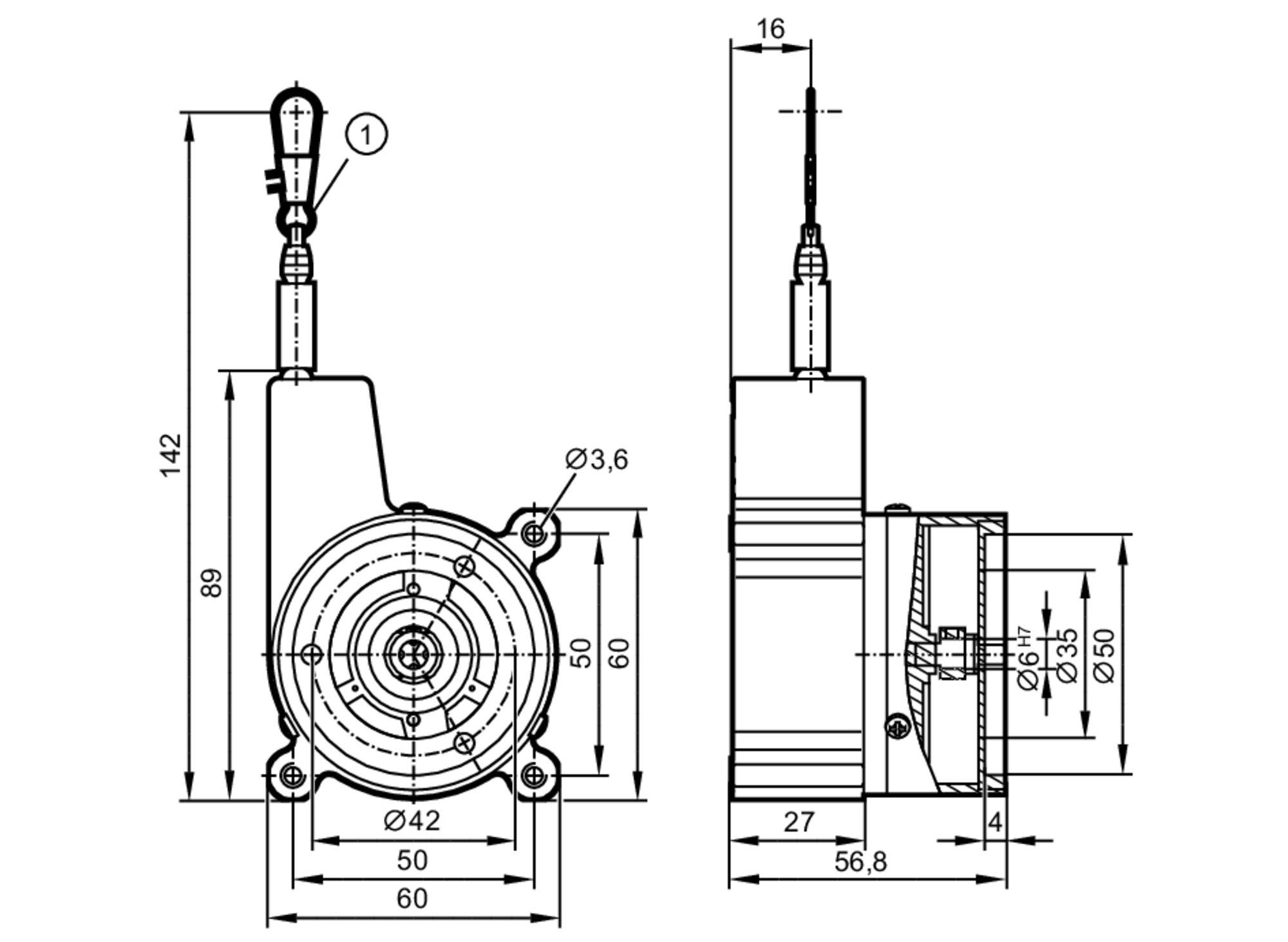

Diagrams and graphs

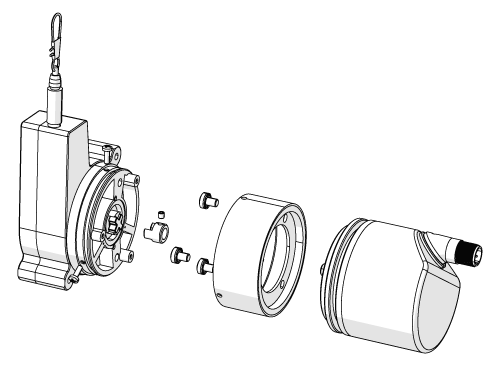

Installation instruction
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E61440-00 — 01.03.2021 —
