E30406

Voltage converter

VOLTAGE CONVERTER

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • Reliable supply of sensors with 24 V DC operating voltage
  • Use in electric systems with a very low operating voltage
  • Easy connection via the tried and tested M12 connector
  • ce
Download
Technische Details
Electrical data
Nominal voltage DC [V] 9...27
Current consumption [mA] < 500
Protection class III
Reverse polarity protection yes
Outputs
Short-circuit protection yes
Operating conditions
Ambient temperature [°C] -25...70
Protection IP 40
Tests / approvals
EMC
EN 61000-4-2 ESD 4 kV CD / 15 kV AD
EN 61000-4-3 HF radiated 30 V/m (80...1000 MHz)
EN 61000-4-4 Burst 2 kV coupling clamp
EN 61000-4-6 HF conducted 10 V (0,15...80 MHz)

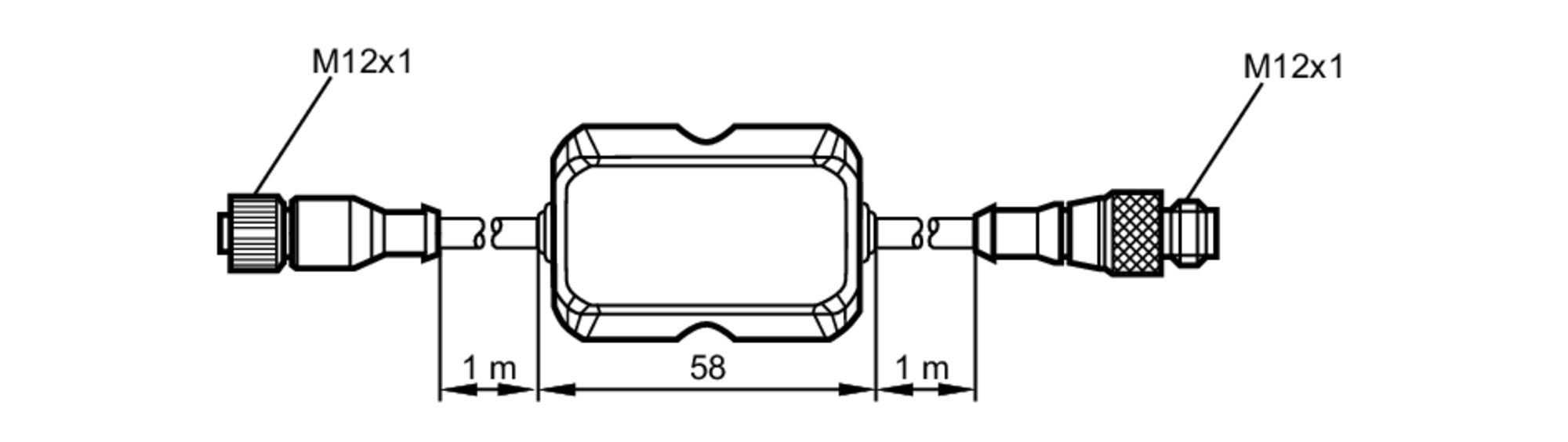

Mechanical data
Weight [g] 151
Materials PBT-GF20
Material nut brass, nickel-plated / brass, nickel-plated
Sealing material FKM / FKM
Remarks
Pack quantity 1 pcs.

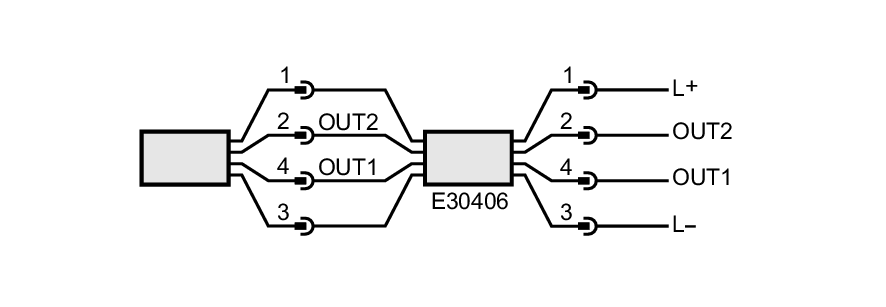

Electrical connection - socket
Cable: 1 m, PUR
Connector: 1 x M12; Moulded body: TPU, orange; Locking: brass, nickel-plated; Sealing: FKM
Electrical connection - plug
Cable: 1 m, PUR
Connector: 1 x M12; Moulded body: TPU, orange; Locking: brass, nickel-plated; Sealing: FKM
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30406-00 — 15.11.2012 —
