Cable gland
E21010

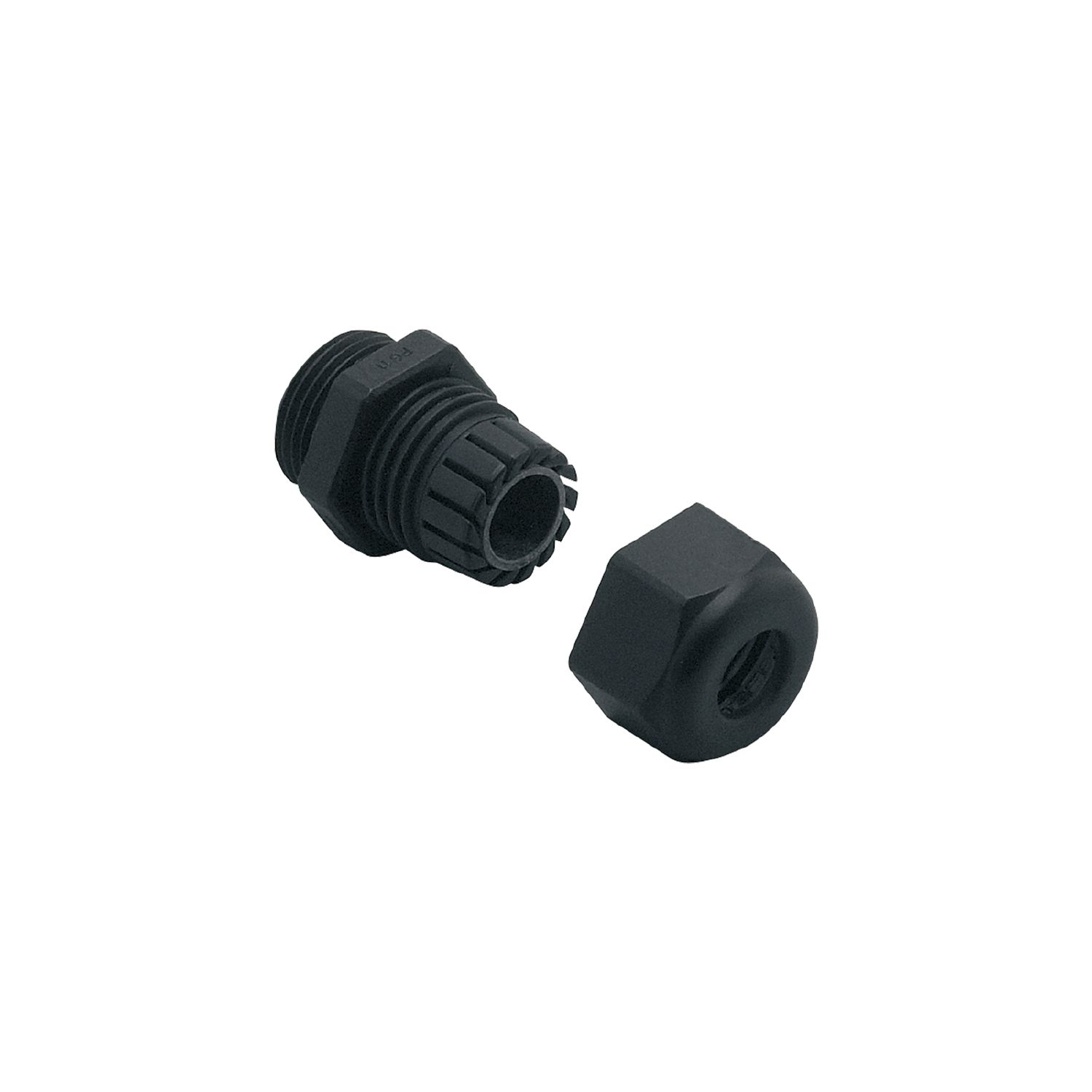

CABLE GLAND M20 SKINTOP
Cable gland
E21010
CABLE GLAND M20 SKINTOP
- For covering unused connections
- For ensuring the protection rating of modules and splitters
{{ifmVariantName}}
| Operating conditions | |
|---|---|
| Ambient temperature [°C] | -25...100 |
| Mechanical data | |
| Weight [g] | 12.2 |
| Dimensions [mm] | M20 x 1.5 |
| Thread designation | M20 x 1.5 |
| Materials | housing: PA black; Sealing: CR |
| Length [mm] | 38 |
| Remarks | |
| Pack quantity | 1 pcs. |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E21010-00 — 06.03.2003 —
|
|
E21010 –
CABLE GLAND M20 SKINTOP
- A
- 28
- B
- 5...10
- C
- 25
- D
- M20 x 1.5
- E
- 38
- F
- 17
