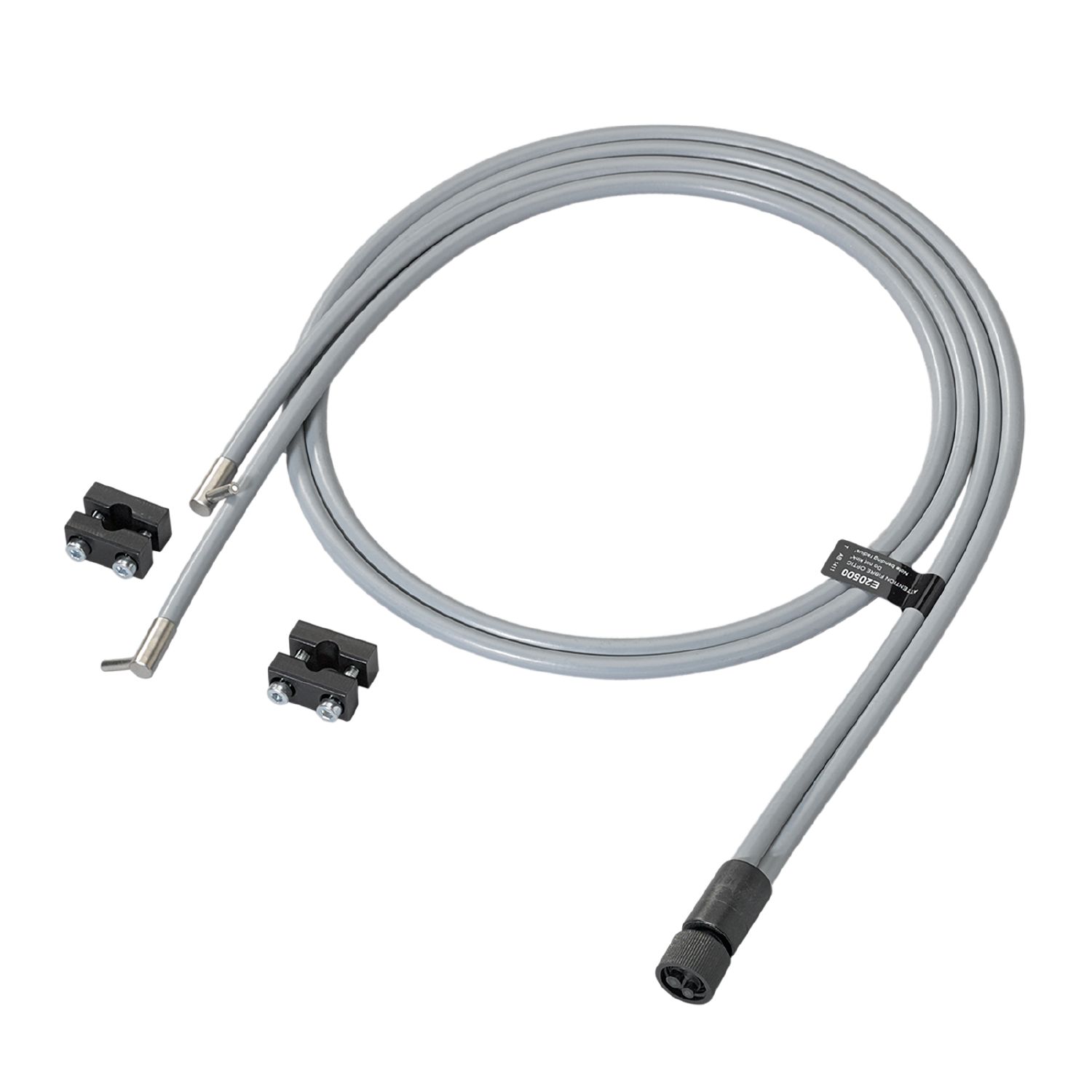

Fibre optic through beam sensor


{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • For applications in high-temperature areas
  • Metal silicone sheathing for use up to 150 °C
  • For installation in places where access is difficult
  • Resistant to various aggressive chemicals
  • Angled type for use where space is restricted
Technische Details
Function principle Through-beam sensor
Detection zone
Range with fibre optic amplifier type OKF; OUF; OOF
Range of fibre optics [mm] 120
Range of fibre optics [mm] 400
Range of fibre optics [mm] 120
Operating conditions
Ambient temperature [°C] -20...150
Mechanical data
Weight [g] 128.5
Version of sensing head angled
Sensing head diameter [mm] 3
Sensing head length [mm] 10
Total length [mm] 1000
Min. bending radius [mm] 20
Fibre arrangement
Fibre material glass
Fibre head material stainless steel (1.4305 / 303)
Fibre sheath material metal silicone
Accessories (supplied)
Pack quantity 1 pcs.
