relay adapter
DP1603
Relais Adapter/2xNO
relay adapter
DP1603
Relais Adapter/2xNO
- Ideal for field applications thanks to protection class IP 67
- Reliable M12 connection technology
- 2-channel version
- Wear and bounce-free semiconductor relays
- Electrical separation between input and output
{{ifmVariantName}}
| Product characteristics | ||||
|---|---|---|---|---|
| Output function | normally open | |||

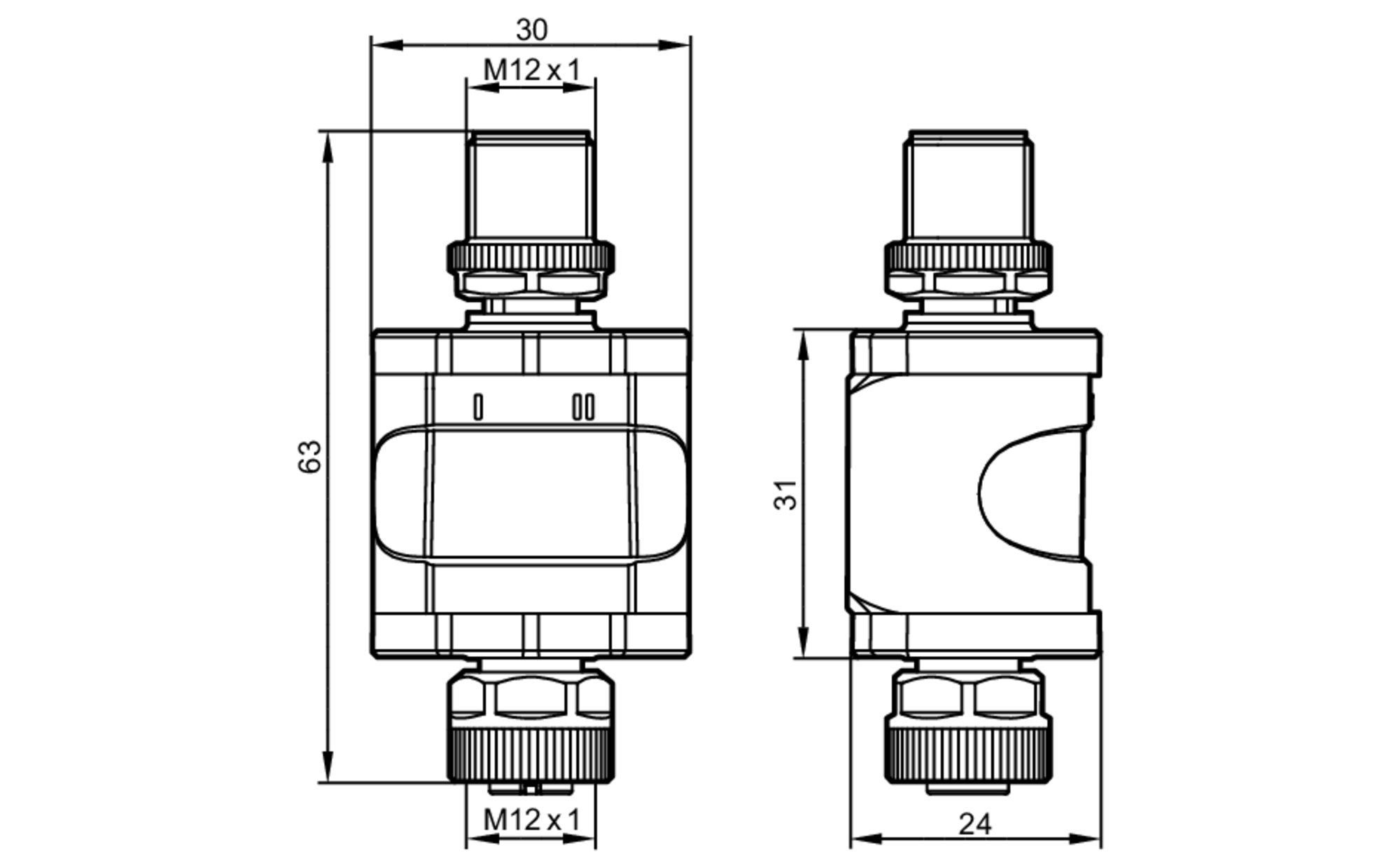

| Dimensions [mm] | 63 x 30 x 24 | |||
| Electrical data | ||||
| Operating voltage [V] | 18...30 DC; ((in wet environments: 18...28 V); to SELV/PELV) | |||
| Nominal voltage DC [V] | 24 | |||
| Current consumption [mA] | < 10 | |||
| Inputs / outputs | ||||
| Number of inputs and outputs | Number of digital inputs: 2; Number of relay outputs: 2 | |||
| Inputs | ||||
| Number of digital inputs | 2; (type 3 (IEC 61131-2)) | |||
| Outputs | ||||
| Voltage range DC [V] | 0...32; (to SELV/PELV) | |||
| Voltage range AC [V] | 0...20; ((in wet environments: 0...16 V); to SELV/PELV) | |||
| Output function | normally open | |||
| Max. current load per output [mA] | 1000 | |||
| Number of relay outputs | 2 | |||
| Switching frequency AC [Hz] | 1 | |||
| Switching frequency DC [Hz] | 1 | |||
| Notes on switching frequency [Hz] |
|
|||
| Operating conditions | ||||
| Ambient temperature [°C] | -25...60 | |||
| Note on ambient temperature |
|
|||
| Storage temperature [°C] | -25...70 | |||
| Max. relative air humidity [%] | 90; (linearly decreasing to 50 % (40 °C) non condensing) | |||
| Max. height above sea level [m] | 4000 | |||
| Protection | IP 67 | |||
| Pollution degree | 2; (before installation and when the device is replaced) | |||
| Tests / approvals | ||||
| MTTF [years] | 942 | |||
| Mechanical data | ||||
| Weight [g] | 82.2 | |||
| Weight (without accessories and packaging) [g] | 35 | |||
| Dimensions [mm] | 63 x 30 x 24 | |||
| Materials | housing: PA | |||
| Accessories | ||||
| Accessories (optional) |
|
|||
| Remarks | ||||
| Remarks |
|
|||
| Pack quantity | 1 pcs. | |||
| Electrical connection - plug | ||||
| Connector: 1 x M12, straight; coding: A | ||||
| Electrical connection - socket | ||||
| Connector: 1 x M12, straight; coding: A | ||||
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DP1603-00 — 06.02.2023 —
|
||||
DP1603 –
Relais Adapter/2xNO
Electrical connection - plug
- 1: L+
- 2: IN1
- DI1
- 3: L-
- 4: IN2
- DI2
Connector: 1 x M12, straight; coding: A
Electrical connection - socket
- 1: L1 / L+
- supply voltage Output
- 2: OUT1
- NO1
- 3: n.c.
- 4: OUT2
- NO2
- 5: n.c.
Connector: 1 x M12, straight; coding: A
