IO-Link master with PROFINET interface

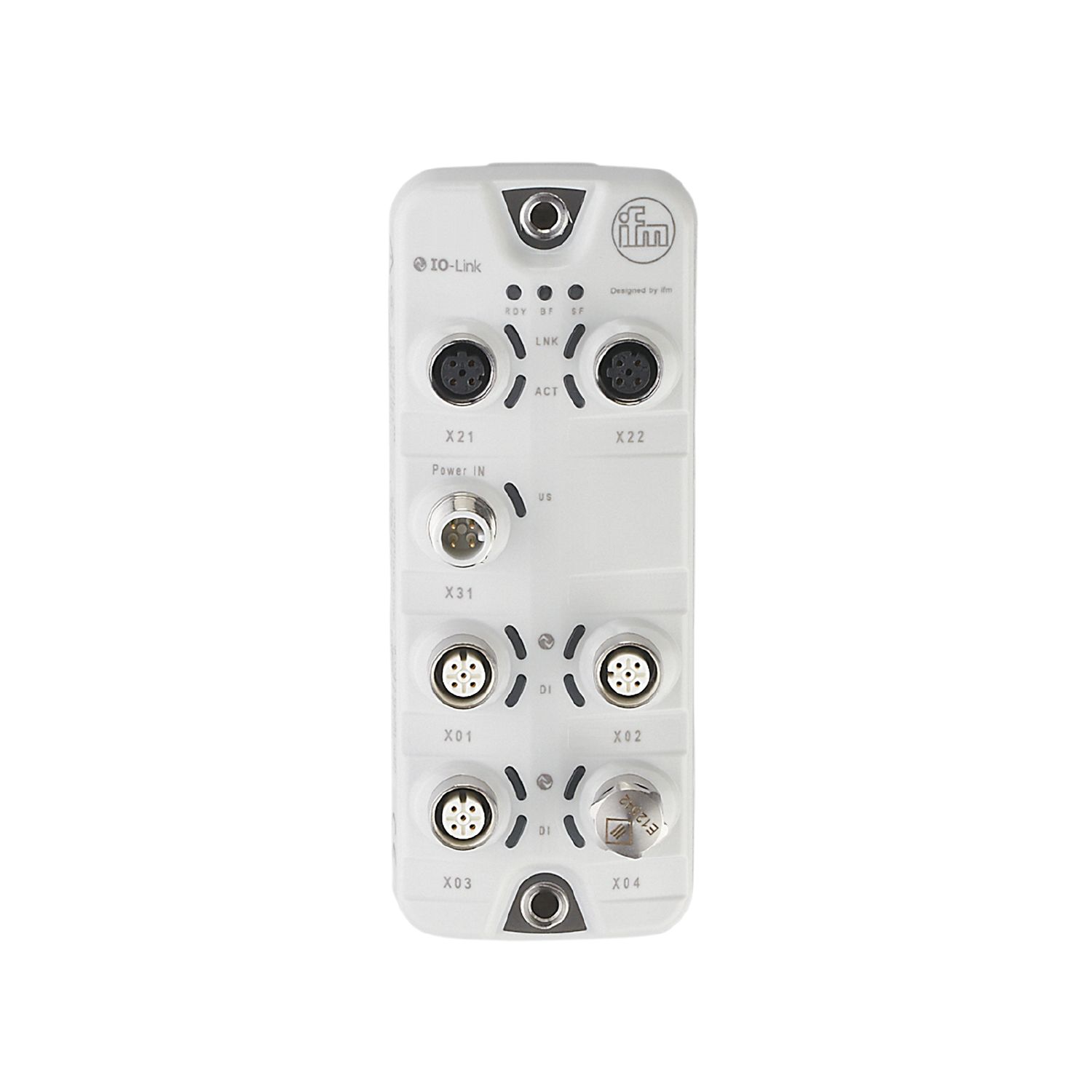

IO-Link Master SL PN 4P IP69K

AL1101

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • Reliable transmission of machine data, process parameters and diagnostic data to the controller
  • For connection of up to four IO-Link devices
  • With integrated PROFINET interface
  • Software LR AGENT EMBEDDED for direct communication with SAP
  • High protection rating for the requirements of the food and beverage industry
  • ce
  • cul
  • iolink
  • profinet
Download
Technische Details
Application
Application hygienic systems; I/O modules for field applications
Daisy-chain function fieldbus interface
Electrical data
Operating voltage [V] 20...30 DC; (US; to SELV/PELV)
Current consumption [mA] 300...3900; (US)
Protection class III
sensor supply US
Max. current load total [A] 3.6
Inputs / outputs
Total number of inputs and outputs 8; (configurable)
Number of inputs and outputs Number of digital inputs: 8; Number of digital outputs: 4
Inputs
Number of digital inputs 8; (IO-Link Port Class A: 4 x 2)
Switching level high [V] 11...30
Switching level low [V] 0...5
Digital inputs protected against short circuits yes
Outputs
Number of digital outputs 4; (IO-Link Port Class A: 4 x 1)
Max. current load per output [mA] 200
Short-circuit proof yes
Interfaces
Communication interface Ethernet; IO-Link
Ethernet
Transmission standard 10Base-T; 100Base-TX
Transmission rate 10; 100
Protocol PROFINET IO
Factory settings
IP address: 0.0.0.0
subnet mask: 0.0.0.0
gateway IP address: 0.0.0.0
MAC address: see type label
IO-Link Master
Transmission type COM 1 / COM 2 / COM 3
IO-Link revision 1.1
Number of ports class A 4
Operating conditions
Ambient temperature [°C] -25...60
Storage temperature [°C] -25...85
Max. relative air humidity [%] 90
Protection IP 65; IP 66; IP 67; IP 69K; (operation with stainless steel protective caps: IP 69K)
Degree of soiling 2
Tests / approvals
EMC
EN 61000-6-2
EN 61000-6-4
Shock resistance
DIN EN 60068-2-27
Vibration resistance
DIN EN 60068-2-64 2009-04
DIN EN 60068-2-6 2008-10
MTTF [years] 90
Mechanical data
Weight [g] 271.6
Materials housing: PA grey; socket: stainless steel (1.4404 / 316L)
Accessories
Accessories (supplied)
Protective cap: 1 x M12, stainless steel, E12542
Remarks
Remarks
For further information please see the operating instructions.
Pack quantity 1 pcs.
Electrical connection - Process connection
IO-Link Port Class A X01...X04 Connector: M12
Electrical connection - voltage supply
X31 Connector: M12
Electrical connection - Ethernet
IN / OUT X21, X22 Connector: M12
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AL1101-00 — 24.03.2017 —
