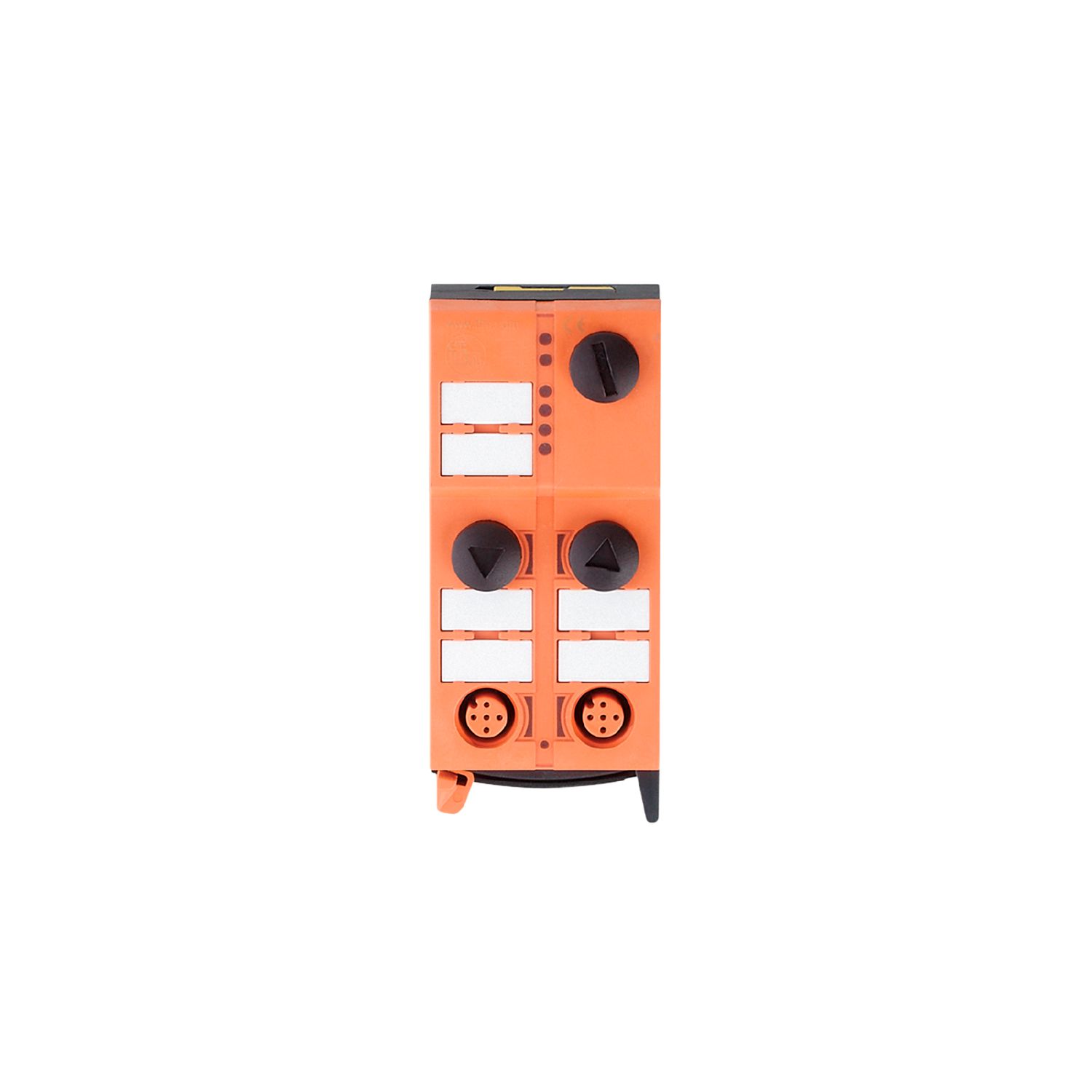

Application | AS-i ATEX module |
---|
Operating voltage [V] | 26.5...31.6 DC |
---|---|
Max. current consumption from AS-i [mA] | 250 |
Reverse polarity protection | yes |
Number of inputs and outputs | Number of analogue inputs: 2 |
---|
Sensor supply of the inputs | AS-i |
---|---|
Number of analogue inputs | 2; (Anschluss von 2- und 3-Draht-Sensoren) |
Analogue input (current) [mA] | 4...20 |
Analogue inputs protected against short circuits | yes |
Resolution of analogue input | 12 bit |
Ambient temperature [°C] | -10...50 |
---|---|
Protection | IP 50 |
ATEX marking | II 3D Ex tc IIIB T80°C Dc X IP50 | ||
---|---|---|---|
EMC |
|
||
MTTF [years] | 174 |
AS-i version | 2.11; 3.0 |
---|---|
AS-i addressing | addressing socket |
Extended addressing mode | no |
AS-i master profile | M3; M4 |
AS-i profile | S-7.3.D |
AS-i I/O configuration [hex] | 7 |
AS-i ID code [hex] | 3.D |
AS-i certificate pending | yes |
Weight [g] | 233 |
---|---|
Type of mounting | AS-i flat cables directly connectable |
Materials | PA; piercing contacts: CuSn6 nickel-plated and tin-plated |
Display |
|
---|
Module connection | Flat cables |
---|
Items supplied |
|
||
---|---|---|---|
Accessories (optional) |
|
Remarks |
|
||||
---|---|---|---|---|---|
Pack quantity | 1 pcs. |
quick mounting technology for AS-i flat cable: ; three orientations possible | |
Connector: M12; coding: A |
