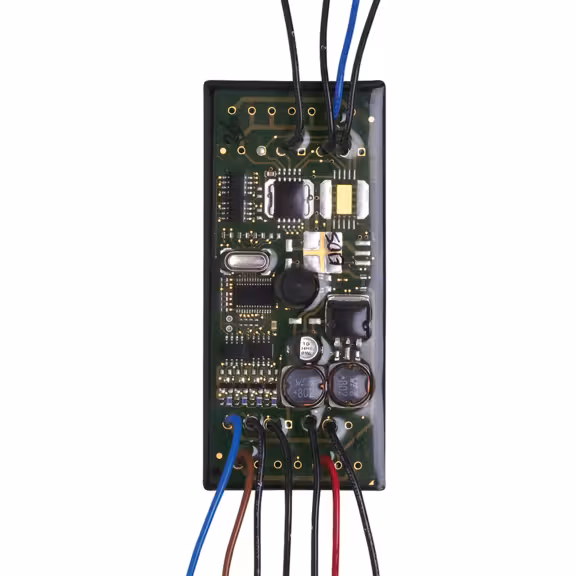

AS-Interface PCB module


{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • For installation in small housings, control cabinets and operator panels
  • Simple and fast wiring by means of wire strands
  • Particularly space-saving design
  • For integration of mechanical switches into AS-i networks
  • AS-i connection for three control and signalling devices
  • ce
  • asib
  • cruus
Technische Details
Electrical data
Operating voltage [V] 26.5...31.6 DC
Current consumption [mA] < 170
Max. current load total [A] 0.12
Inputs / outputs
Number of inputs and outputs Number of digital inputs: 4; Number of digital outputs: 3
Number of digital inputs 4
Input circuit of digital inputs PNP
Sensor supply of the inputs AS-i
Voltage supply [V] 15...29
Input current High [mA] > 3
Input current Low [mA] < 1.5
Min. switching level high signal [V] 10
Digital inputs protected against short circuits yes
Number of digital outputs 3
Circuit PNP
Max. current load per output [mA] 40
Short-circuit proof yes
Electrically separated yes
Operating conditions
Ambient temperature [°C] -25...60
Protection IP 20
Tests / approvals
EN 50295
MTTF [years] 329
AS-i classification
AS-i version 3.0
Extended addressing mode possible yes
AS-i profile S-7.A.E
AS-i I/O configuration [hex] 7
AS-i ID code [hex] A.E
AS-i certificate pending yes
Mechanical data
Weight [g] 115.5
Type of mounting for Moeller housing RMQ-Titan: I3M, I4M, I6M
Displays / operating elements
operation LED, green
The PCB can also be integrated into an RMQ22 housing.
Do not connect any of the following points to an external potential:
O-, I+, I1, I2, I3, I4
The connections are electrically connected with the AS-i cable.
Install the unit so that exposed parts cannot be touched.
Pack quantity 1 pcs.
