Continuous level sensor (guided wave radar)

LR3020

LR0000--BR34AMDKG/US

Continuous level sensor (guided wave radar)

LR3020

LR0000--BR34AMDKG/US

  • For the reliable level control in tanks and containers
  • Suitable for water, oils and coolants
  • Modular system consisting of evaluation unit and probe
  • Adaptation to different container heights through shortening of the probe
  • Precise analogue output and user-friendly communication via IO-Link
{{ifmVariantName}}



  • dnv_gl
  • ce
  • eac
  • iolink
  • cul
Technical details
Product characteristics
Number of inputs and outputs Number of digital outputs: 1; Number of analogue outputs: 1
Probe length L [mm] 100...2000
Process connection G 3/4 external thread
Application
Special feature Gold-plated contacts
Media Liquids
Dielectric constant of the medium ≥ 1,8; (for media with a dielectric constant of 1.8...5 (e.g. oils), a coaxial pipe is needed for operation)
Recommended media water; hydrous media; oils; oil-based media
Medium temperature [°C] -25...80; (90 < 1 h)
Tank pressure [bar] -1...16
Electrical data
Operating voltage [V] 18...30 DC
Current consumption [mA] < 25
Protection class III
Reverse polarity protection yes
Power-on delay time [s] < 3
Inputs / outputs
Number of inputs and outputs Number of digital outputs: 1; Number of analogue outputs: 1
Outputs
Total number of outputs 2
Output signal switching signal; analogue signal; IO-Link
Electrical design PNP/NPN
Number of digital outputs 1
Output function normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 200
Number of analogue outputs 1
Analogue current output [mA] 4...20, invertible
Max. load [Ω] 500
Analogue voltage output [V] 0...10, invertible
Min. load resistance [Ω] 2000
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Measuring/setting range
Probe length L [mm] 100...2000
Active range A [mm] L-40; (when set to oil and oil based media: L-60)
Inactive range I1 / I2 [mm] 30 / 10; (when set to oil and oil based media: 30 / 30)
Sampling rate [Hz] 4
Setting range
Set point SP [mm] ≥ 15...L-30
Note on setpoint SP
when set to oil and oil based media: 30...L-35
Reset point rP [mm] ≥ 10...L-35
Note on reset point rP
when set to oil and oil based media: 35...L-30
In steps of [mm] 5
Hysteresis [mm] > 5
Accuracy / deviations
Repeatability [mm] ± 5
Measuring error [mm] ± 7
Offset error [mm] 5
Resolution [mm] 1
Zero signal (voltage) [V] 0
Zero signal (current) [mA] 4.0
Full signal (voltage) [V] 10
Full signal (current) [mA] 20
Temperature drift per 10 K ± 0.2 %
Interfaces
Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9
Profiles Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
SIO mode yes
Required master port type A
Process data analogue 3
Process data binary 1
Min. process cycle time [ms] 3.2
Supported DeviceIDs
Type of operation DeviceID
Default 687
Operating conditions
Ambient temperature [°C] -25...60
Storage temperature [°C] -40...85
Protection IP 68; IP 69K; (7 days / 1 m water depth / 0.1 bar: IP 68)
Tests / approvals
EMC
DIN EN 61000-6-2
DIN EN 61000-6-3 in a closed metal tank
DIN EN 61000-6-4 in plastic or open metal tanks
Shock resistance
DIN EN 60068-2-27 50 g (11 ms) / 25 g (6 ms) with reference rod 0.5 m
Vibration resistance
DIN EN 60068-2-6 5 g (10...2000 Hz) / 1 g (5...200 Hz) with reference rod 0.5 m
MTTF [years] 241
UL approval
UL Approval no. H012
File number UL E174191
Mechanical data
Weight [g] 486.6
Materials stainless steel (1.4301 / 304); stainless steel (1.4404 / 316L); FKM; PEI
Materials (wetted parts) stainless steel (1.4305 / 303); probe connection: stainless steel (1.4435 / 316L); PTFE; FKM; Sealing: NBR reinforced fibre
Process connection G 3/4 external thread
Remarks
Pack quantity 1 pcs.
Electrical connection - plug
Connection Connector: 1 x M12; Contacts: gold-plated
Diagrams and graphs

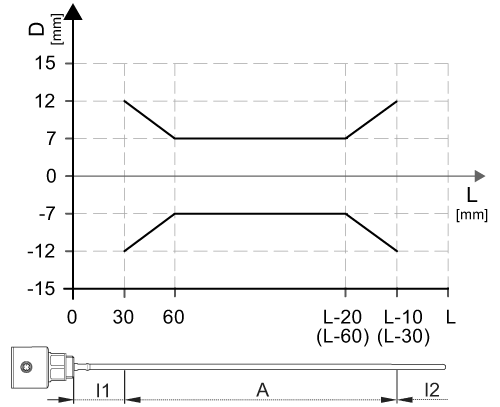

Measurement deviation D at the limits of the active rod range
