| Application |
| Function principle |
Through-beam sensor |
| Electrical data |
| Frequency AC [Hz] |
47...63 |
| Operating voltage [V] |
20...250 AC/DC |
| Protection class |
II |
| Reverse polarity protection |
no |
| Type of light |
infrared light |
| Wave length [nm] |
880 |
| Outputs |
| Output function |
light-on mode |
| Max. voltage drop switching output DC [V] |
8 |
| Max. voltage drop switching output AC [V] |
8 |
| Minimum load current [mA] |
5 |
| Max. leakage current [mA] |
1.7 |
| Permanent current rating of switching output AC [mA] |
90; (180 (...40 °C)) |
| Permanent current rating of switching output DC [mA] |
90; (180 (...40 °C)) |
| Short-time current rating of switching output [mA] |
600; (20 ms / 0,5 Hz) |
| Switching frequency AC [Hz] |
25 |
| Switching frequency DC [Hz] |
25 |
| Short-circuit proof |
no |
| Overload protection |
no |
| Detection zone |
| Transmitter / receiver |
receiver |
| Range [m] |
< 15 |
| Range adjustable |
yes |
| Operating conditions |
| Ambient temperature [°C] |
-25...80 |
| Protection |
IP 67 |
| Tests / approvals |
| EMC |
| EN 60947-5-2 |
|
| EN 55011 |
class B |
|
| MTTF [years] |
334 |
| Mechanical data |
| Weight [g] |
121.7 |
| Housing |
threaded type |
| Dimensions [mm] |
M18 x 1 / L = 78.5 |
| Thread designation |
M18 x 1 |
| Materials |
PBT |
| Lens material |
|
| Displays / operating elements |
| Display |
| switching status |
1 x LED, red |
| function |
1 x LED, red flashing light |
|
| Electrical connection |
| Required protection |
miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting |
| Accessories |
| Accessories (supplied) |
|
| Remarks |
| Remarks |
| Recommendation: Check the safe functioning of the unit after a short circuit. |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
| Connection |
Cable: 2 m, PVC; 2 x 0.5 mm² |
| Diagrams and graphs |

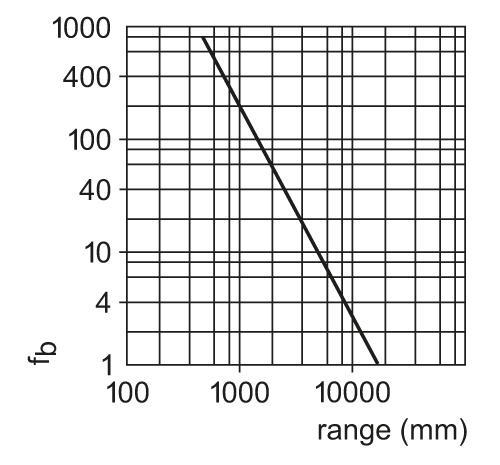

| excess gain graph |
|
