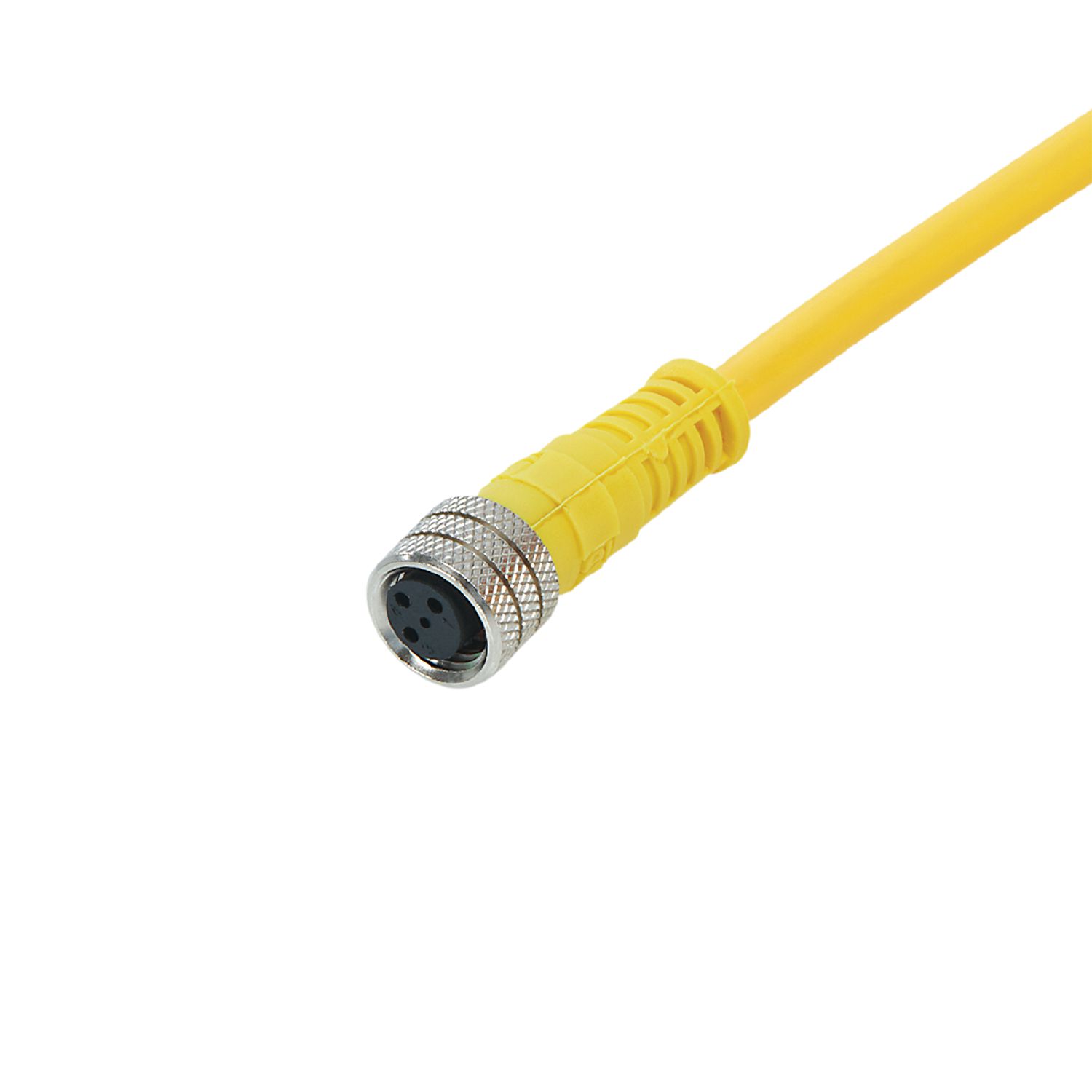

Connecting cable with socket

W80510

ADOGF030MSS0005E03

Connecting cable with socket

W80510

ADOGF030MSS0005E03

  • For safe electrical connections
  • Permanent, reliable sealing even when mounted without tools
  • High protection rating for the requirements of harsh industrial environments
  • Wide operating temperature range
Electrical data
Operating voltage [V] < 60 AC / < 75 DC
Operating conditions
Ambient temperature [°C] -25...100
Protection IP 68
Mechanical data
Weight [g] 136.078
Materials TPE
Moulded-body material TPE
Material nut brass, nickel-plated
Remarks
Pack quantity 1 pcs.
Electrical connection
Cable: 5 m, PVC, yellow, Ø 4.3 mm; 3 x 0.25 mm² (128 x Ø 0.05 mm )
Electrical connection - socket
Connection Connector: 1 x M8, straight; coding: A; Moulded body: TPE; Locking: brass, nickel-plated
