UV0003

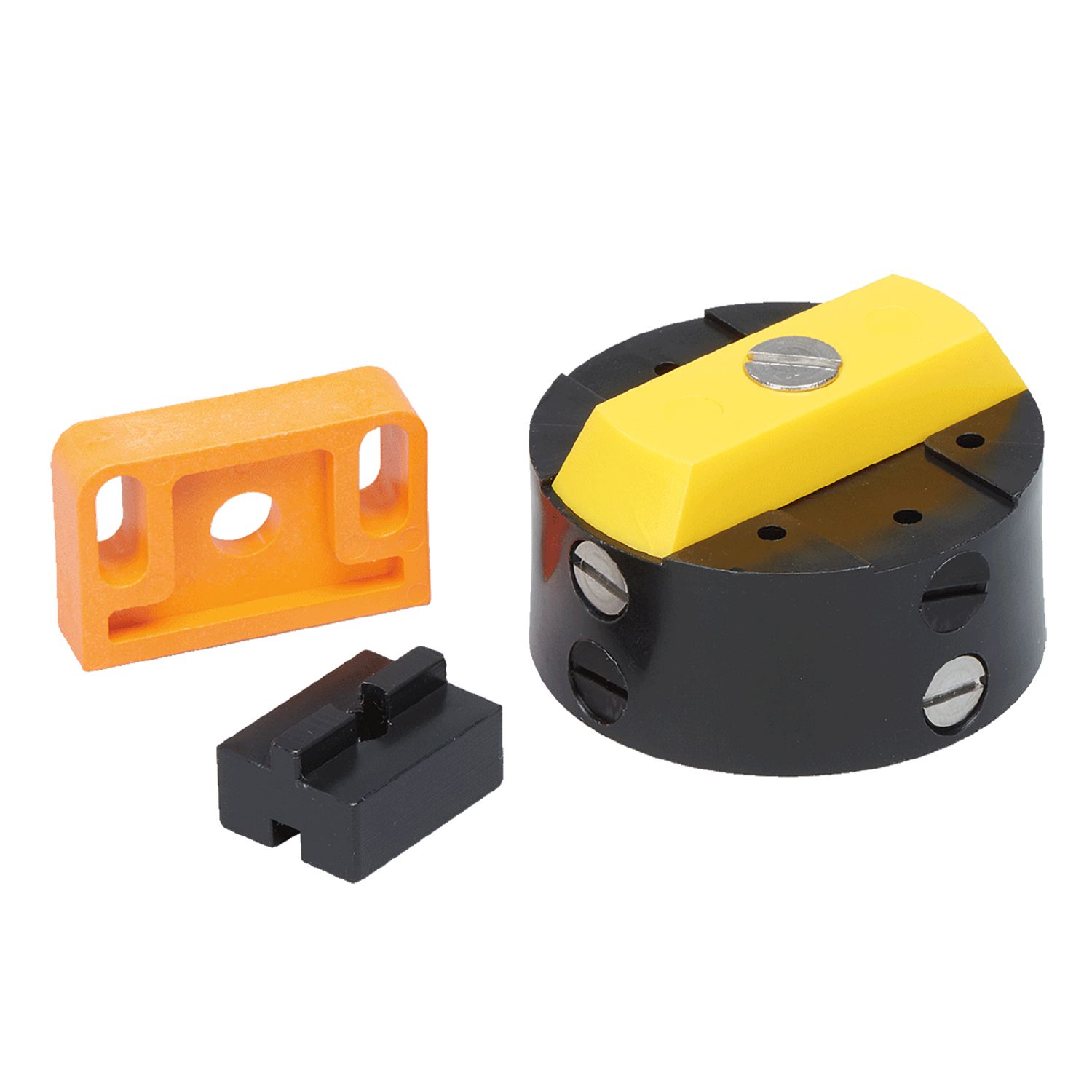

Target puck for valve actuators

Name: UV0003
Brand: ifm
SKU: UV0003
Price: 70.02 CAD

UV0003

PUCK, PKG, UNV, TYPE 2

Target puck for valve actuators

UV0003

PUCK, PKG, UNV, TYPE 2

For monitoring valve positions
For reliable position feedback on valve actuators
Easy mounting directly on the shaft of the drive
Non-contact and self-cleaning system
Selectable position of the damping screws

Application

Design	for mechanical interfaces to pneumatic actuators or manually-operated valves

Mechanical data

Weight [g]	113.398
Target puck diameter [mm]	56
Number of possible switching flag positions	6
Materials	target puck: HDPE black; puck mounting screw: stainless steel M6 x 35 mm; sensor mounting screws: stainless steel 10 - 24 x 1¾"

Accessories

Items supplied

countersunk screws: 3, HDPE

countersunk screws: 3 x 10-32 x 1/4", stainless steel

counter-sunk screw: 1 x M5 x 35 mm, stainless steel

washers: 2, stainless steel

panhead screws: 2 x 10-24 x 1 1/4", stainless steel

panhead screws: 2 x 10-32 x 3/4"

panhead screws: 2 x M5 x 45 mm

target puck adapter: 1 x 10 mm, HDPE

Spacer: 1 x 10 mm

direction indication: 1, HDPE yellow

Remarks

Pack quantity	1 pcs.
