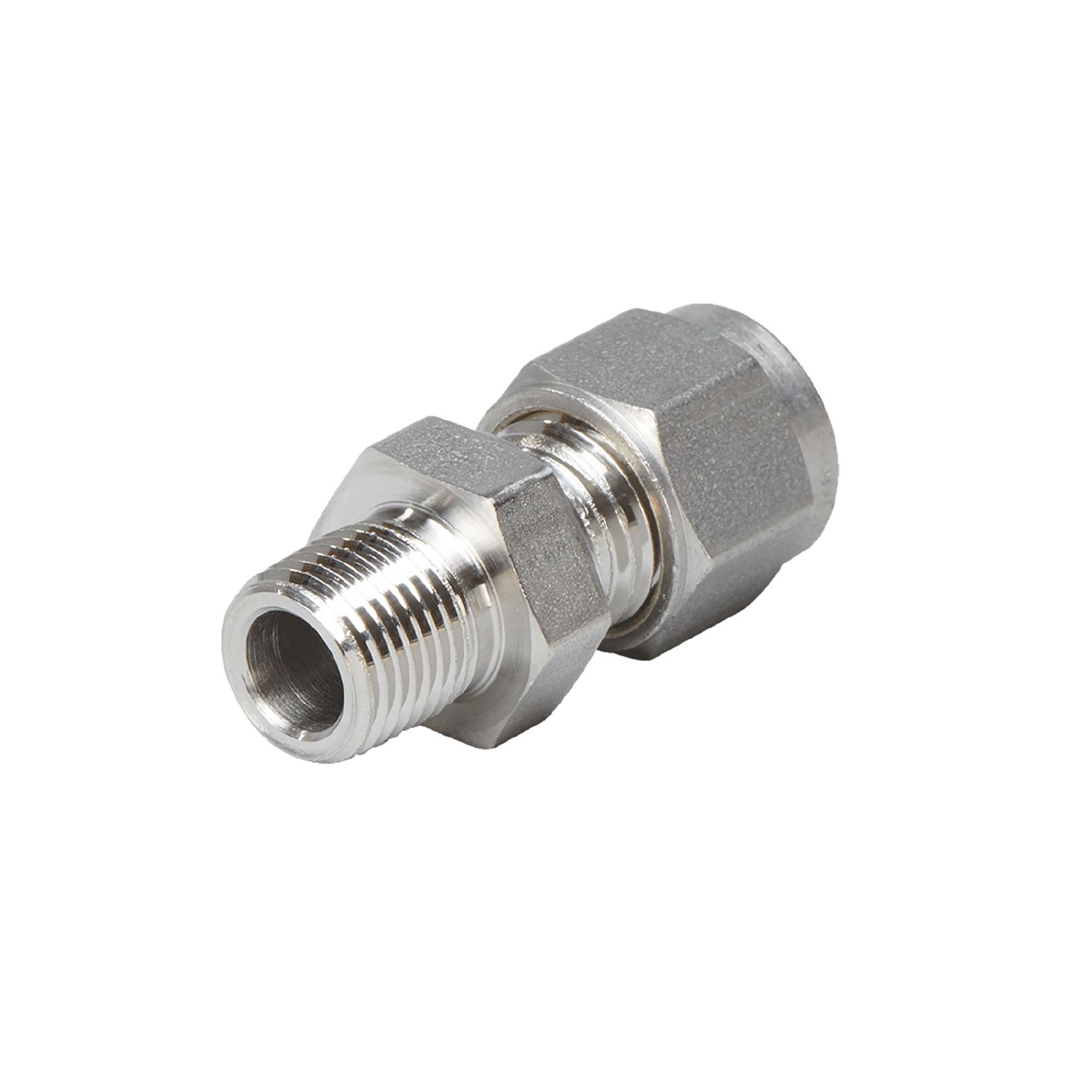

Progressive ring fitting for temperature sensors
UT0067
ADTR, TEMP, 6MM, 1/8 NPT
Progressive ring fitting for temperature sensors
UT0067
ADTR, TEMP, 6MM, 1/8 NPT
Application
| Pressure rating [bar] | 50 |
|---|
Mechanical data
| Weight [g] | 25.401 |
|---|---|
| Materials | stainless steel (316Ti/1.4571) |
| Sensor connection | Ø 6 mm |
| Process connection | 1/8" NPT |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — UT0067-00 — 19.06.2017 —
