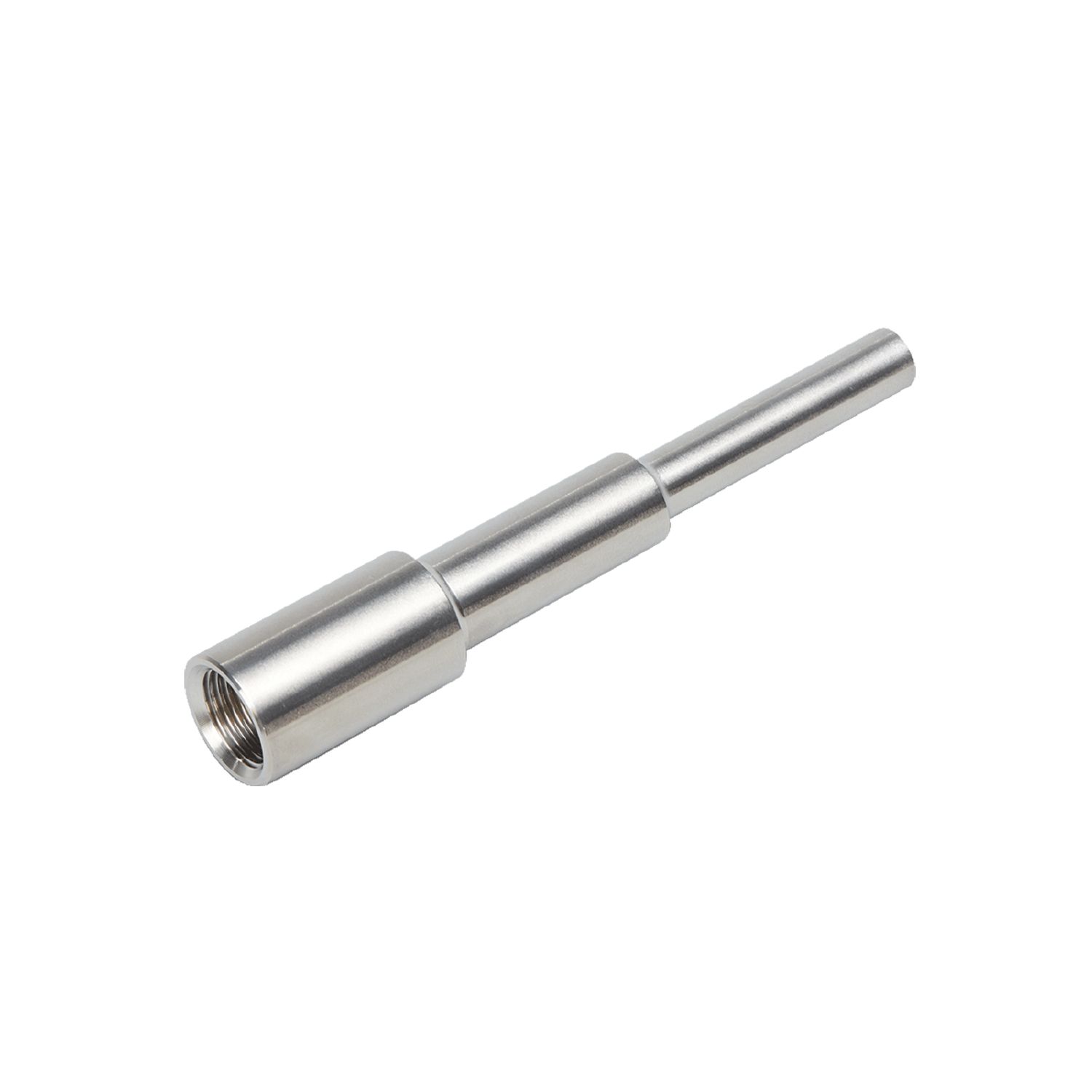

Thermowell for temperature sensors

THWL, 6MM X 4.5", 3/4" WELD

UT0051

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • Reliable protection against aggressive media and high flow velocities
  • Allows the replacement of the temperature sensor in a running process
  • High pressure rating
  • Simple process connection via adapter
  • Robust stainless steel housing for the requirements of harsh industrial environments
Download
Technische Details
Application
Design for temperature sensors EL = 150 mm
Pressure rating [bar] 400
Accuracy / deviations
Max. permissible flow velocity [m/s] 25
Mechanical data
Weight [g] 293.928
Materials stainless steel (1.4404 / 316L)
Sensor connection 1/2 NPS Ø 6 mm suitable for G1/2 and 1/2" NPT
Process connection welding adapter
Installation length EL [mm] 114
Bore length BL [mm] 152.6
Remarks
Pack quantity 1 pcs.
