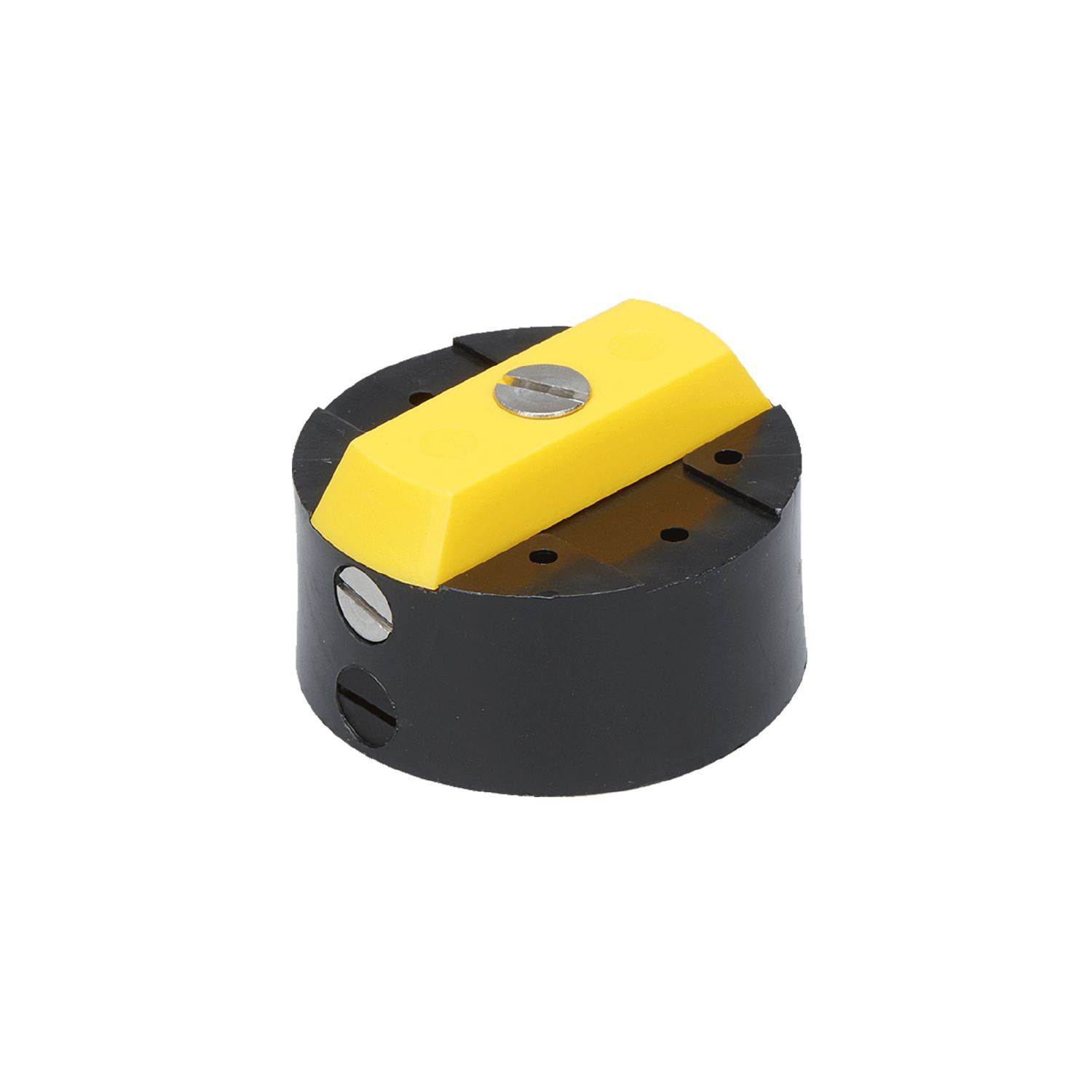

Target puck for valve actuators

U20161

PUCK, PKG, UNV, M6, 10-32

Target puck for valve actuators

U20161

PUCK, PKG, UNV, M6, 10-32

  • For monitoring valve positions
  • For reliable position feedback on valve actuators
  • Easy mounting directly on the shaft of the drive
  • Non-contact and self-cleaning system
  • Selectable position of the damping screws
Application
Design for mechanical interfaces to pneumatic actuators or manually-operated valves
Mechanical data
Weight [g] 68.039
Target puck diameter [mm] 56
Number of possible switching flag positions 6
Materials target puck: HDPE black
Accessories
Items supplied
countersunk screws: 3 x 10-32 x 1/4", HDPE
countersunk screws: 3 x 10-32 x 1/4", stainless steel
counter-sunk screw: 1 x M5 x 25 mm, stainless steel
washers: 2, stainless steel
panhead screws: 2 x 10-32 x 1 1/4", stainless steel
actuator adapter: 1 x Tyco large
direction indication: 1, HDPE yellow
Remarks
Pack quantity 1 pcs.
