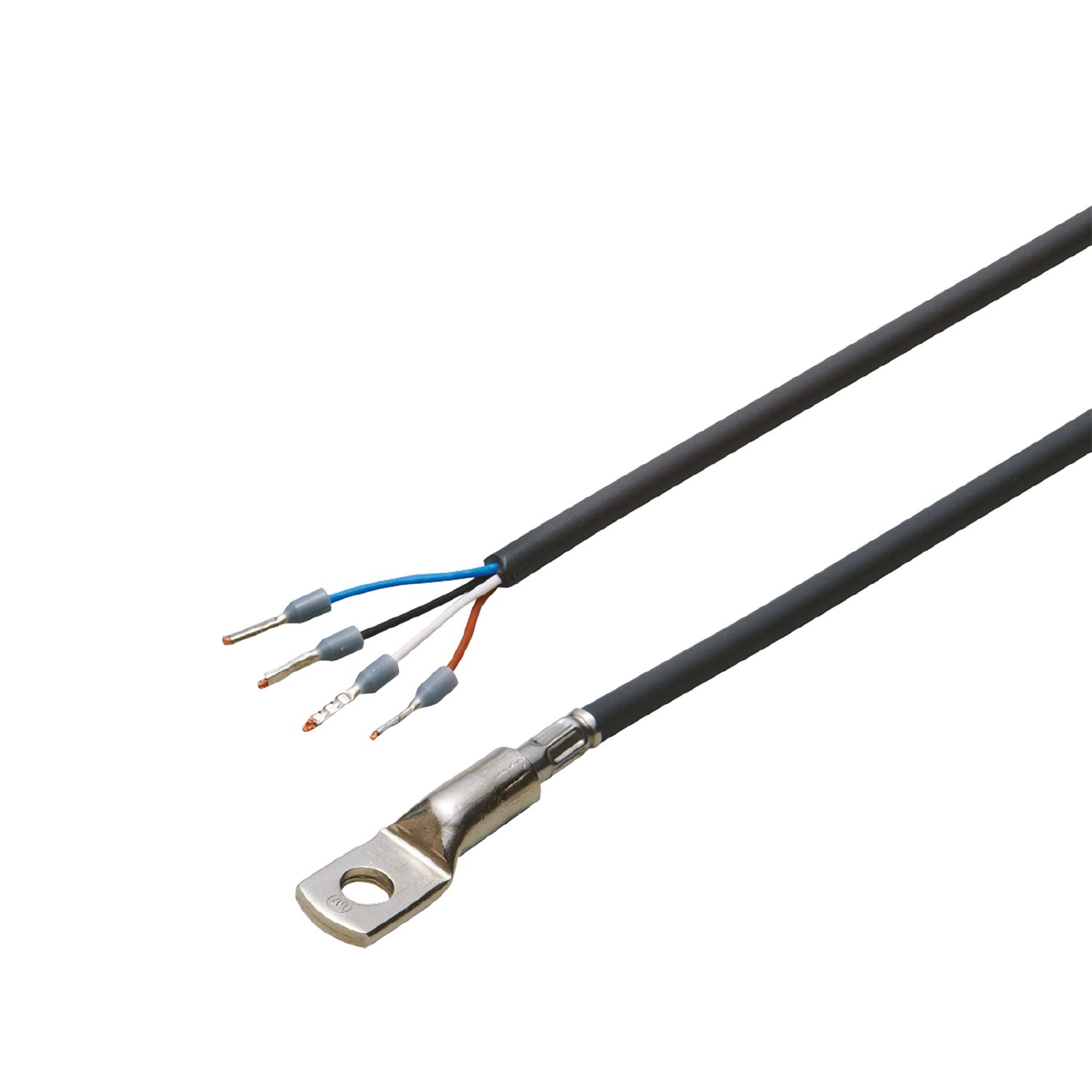

Temperature cable sensor with bolt-on sensor

TS2239

TS-200-KL /US

Temperature cable sensor with bolt-on sensor

TS2239

TS-200-KL /US

  • Precise temperature measurement on machine surfaces
  • For the connection to an evaluation unit
  • Compact housing for installation where space is restricted
  • High precision across the entire temperature measurement range
  • Gold-plated contacts for reliable electrical connections
  • ce
Product characteristics
Measuring range
-40...90 °C -40...194 °F
Process connection bolt-on sensor 12,5 x 8,7 x 47 mm
Application
Measuring element 1 x Pt 100; (to DIN EN 60751, class A)
Installation surface mount RTD for solid bodies
Electrical data
Insulation rating [V] 500
Protection class III
Measuring/setting range
Measuring range
-40...90 °C -40...194 °F
Accuracy / deviations
Accuracy [K] ± (0,15 K + 0,002 x|t|)
Response times
Dynamic response T05 / T09 [s] 12 / 39; (values for a flat aluminium surface (anodised) using a conductive heat paste; reference values for moving water : 10 / 24 (< 0,1 m/s))
Operating conditions
Protection IP 67
Tests / approvals
MTTF [years] 12683.9
Mechanical data
Weight [g] 101.4
Housing bolt-on sensor
Dimensions [mm] 12.5 x 8.7 x 47
Materials stainless steel (1.4303 / 305 / 308); copper nickel-plated
Process connection bolt-on sensor 12,5 x 8,7 x 47 mm
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Cable: 2 m, PUR, Ø 4.9 mm; with wire end ferrules; 4 x 0.34 mm² (42 x Ø 0.1 mm )
