SU8200

Ultrasonic flow meter

SUR11HGBFPKG/W/US-100-IPF

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • Reliable detection of flow and medium temperature
  • Suitable for water, oils and glycol solutions
  • For installation in pipes
  • With two programmable switching outputs
  • Clearly visible 4-digit LED display
  • ce
  • cul

Download
Technische Details
Product characteristics
Number of inputs and outputs Number of digital outputs: 2
Measuring range
0...100 l/min 0...26.42 gpm
Process connection threaded connection G 1 flat seal
Application
Special feature Gold-plated contacts
Application for industrial applications
Installation connection to pipe by means of an adapter
Media water; glycol solutions; coolants; oil
Note on media
low-viscosity oils with viscosity: 7...40 mm²/s (40 °C)
high-viscosity oils with viscosity: 30...68 mm²/s (40 °C)
Medium temperature [°C] -10...80
Pressure rating [bar] 16
Electrical data
Operating voltage [V] 19...30 DC; (according to EN 50178 SELV/PELV)
Current consumption [mA] 100
Min. insulation resistance [MΩ] 100; (500 V DC)
Protection class III
Reverse polarity protection yes
Power-on delay time [s] 10
Inputs / outputs
Number of inputs and outputs Number of digital outputs: 2
Outputs
Total number of outputs 2
Output signal switching signal
Electrical design PNP
Number of digital outputs 2
Output function normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V] 2
Permanent current rating of switching output DC [mA] 250; (per output)
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Measuring/setting range
Measuring range
0...100 l/min 0...26.42 gpm
Display range
0...120 l/min 0...31.7 gpm
Resolution
0.1 l/min 0.02 gpm
Set point SP
0.2...100 l/min 0.06...26.42 gpm
Reset point rP
0...99.8 l/min 0...26.38 gpm
Max. flow rate [l/min] 110
In steps of
0.1 l/min 0.02 gpm
Temperature monitoring
Measuring range [°C] -10...80
Resolution [°C] 0.2
Set point SP [°C] -9.8...80
Reset point rP [°C] -10...79.8
In steps of [°C] 0.2
Accuracy / deviations
Flow monitoring
Accuracy (in the measuring range) < ± (3 % MW + 0,2 % MEW) / < ± (5 % MW + 0,5 % MEW); (water; glycol: 35%; oil: viscosity 68 mm²/s at 40 °C)
Repeatability 0,2 l/min (0,05 gpm)
Temperature monitoring
Accuracy [K] 0,2
Response times
Flow monitoring
Response time [s] 0.25; (dAP = 0)
Delay time programmable dS, dr [s] 0...50
Damping for the switching output dAP [s] 0...1
Temperature monitoring
Dynamic response T05 / T09 [s] T09 = 70 (Q > 5 l/min); (water)
Software / programming
Parameter setting options Flow monitoring; Temperature monitoring
Operating conditions
Ambient temperature [°C] -10...60
Storage temperature [°C] -25...80
Protection IP 67
Tests / approvals
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated 10 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-5 Surge 0,5 kV
EN 61000-4-6 HF conducted 10 V
Shock resistance
DIN IEC 68-2-27 20 g (11 ms)
Vibration resistance
DIN IEC 68-2-6 5 g (10...2000 Hz)
MTTF [years] 246
Pressure Equipment Directive Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Mechanical data
Weight [g] 1694
Materials housing: AlMgSi0,5 anodised; Sealing: FKM; connector housing: brass Optalloy-plated; PA 6.6; cover film: PA
Materials (wetted parts) stainless steel (1.4404 / 316L); FKM; PES; Centellen 200
Process connection threaded connection G 1 flat seal
Displays / operating elements
Display
Display unit 4 x LED, green (l/min, m³/h, gal/min, gal/h)
Display unit 2 x LED, yellow (°C / °F)
switching status 2 x LED, yellow
measured values alphanumeric display, 4-digit
programming alphanumeric display, 4-digit
Display unit l/min; m³/h; gpm; gph; °C; °F
Accessories
Accessories (supplied)
sealings: 2, Centellen
Accessories (optional)
adapter for pipe: 1 x R1/2, stainless steel, E40179
adapter for pipe: 1 x R3/4, stainless steel, E40180
adapter for pipe: 1 x 1/2 NPT, stainless steel, E40192
adapter for pipe: 1 x 3/4 NPT, stainless steel, E40193
adapter for pipe: 1 x R1/2, brass, E40152
adapter for pipe: 1 x R3/4, brass, E40153
adapter for pipe: 1 x 1/2 NPT, brass, E40155
adapter for pipe: 1 x 3/4 NPT, brass, E40156
Remarks
Remarks
MW = measured value
MEW = Final value of the measuring range
sealing: only with supplied Centellen seals
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12; Moulded body: brass, Optalloy-plated; Contacts: gold-plated
Diagrams and graphs

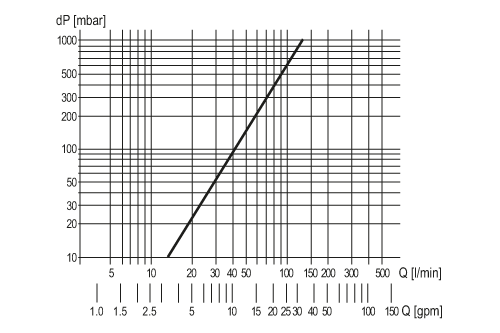

Pressure loss
dP Pressure loss
Q volumetric flow quantity
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — SU8200-01 — 12.11.2014 —
