- L32506

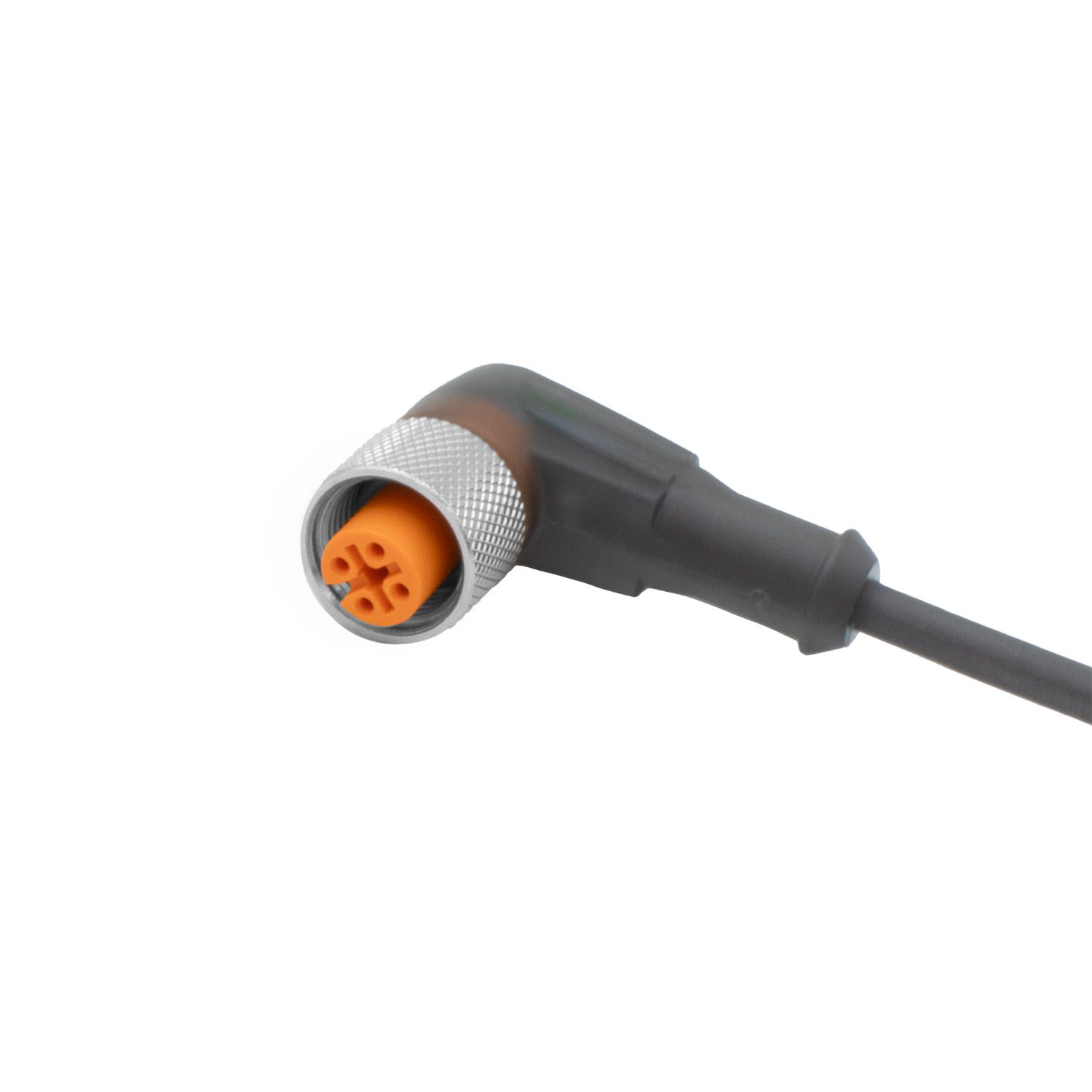

Connecting cable with socket
L32506
ADOAH042MSS0010A03
Connecting cable with socket
L32506
ADOAH042MSS0010A03
- Angled type for use where space is restricted
- Clearly visible LEDs for indicating switching status and operation
- Permanent, reliable sealing even when mounted without tools
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|
Outputs
| Electrical design | PNP |
|---|
Operating conditions
| Ambient temperature [°C] | -25...90 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 326.586 |
|---|---|
| Dimensions [mm] | 27 x 15 x 39 |
| Materials | TPU transparent |
| Moulded-body material | TPU, transparent |
| Material nut | brass, nickel-plated |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 10 m, PUR / PVC, black, Ø 5 mm; 3 x 0.34 mm² (42 x Ø 0.1 mm ) |
Electrical connection - socket
| Connection | Connector: 1 x M12, angled; coding: A; Moulded body: TPU, transparent; Locking: brass, nickel-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — L32506-00 — 20.09.2005 —
L32506 –
ADOAH042MSS0010A03
Electrical connection
Cable: 10 m, PUR / PVC, black, Ø 5 mm; 3 x 0.34 mm² (42 x Ø 0.1 mm )
Electrical connection - socket
Connector: 1 x M12, angled; coding: A; Moulded body: TPU, transparent; Locking: brass, nickel-plated
Connection
- Core colours :
- BN =
- brown
- BK =
- black
- BU =
- blue
