Inductive sensor
ID8505
IDE3060-FPKG/US100DPS
Inductive sensor
ID8505
IDE3060-FPKG/US100DPS
- Very long sensing range
- Large active sensor face
- Easy setting of the sensing range via potentiometer
- Robust housing for use in harsh industrial environments
- Output function normally open / normally closed programmable
{{ifmVariantName}}
| Product characteristics | |||
|---|---|---|---|
| Electrical design | PNP | ||
| Output function | normally open / normally closed; (selectable) | ||
| Sensing range [mm] | 60 | ||
| Housing | rectangular | ||

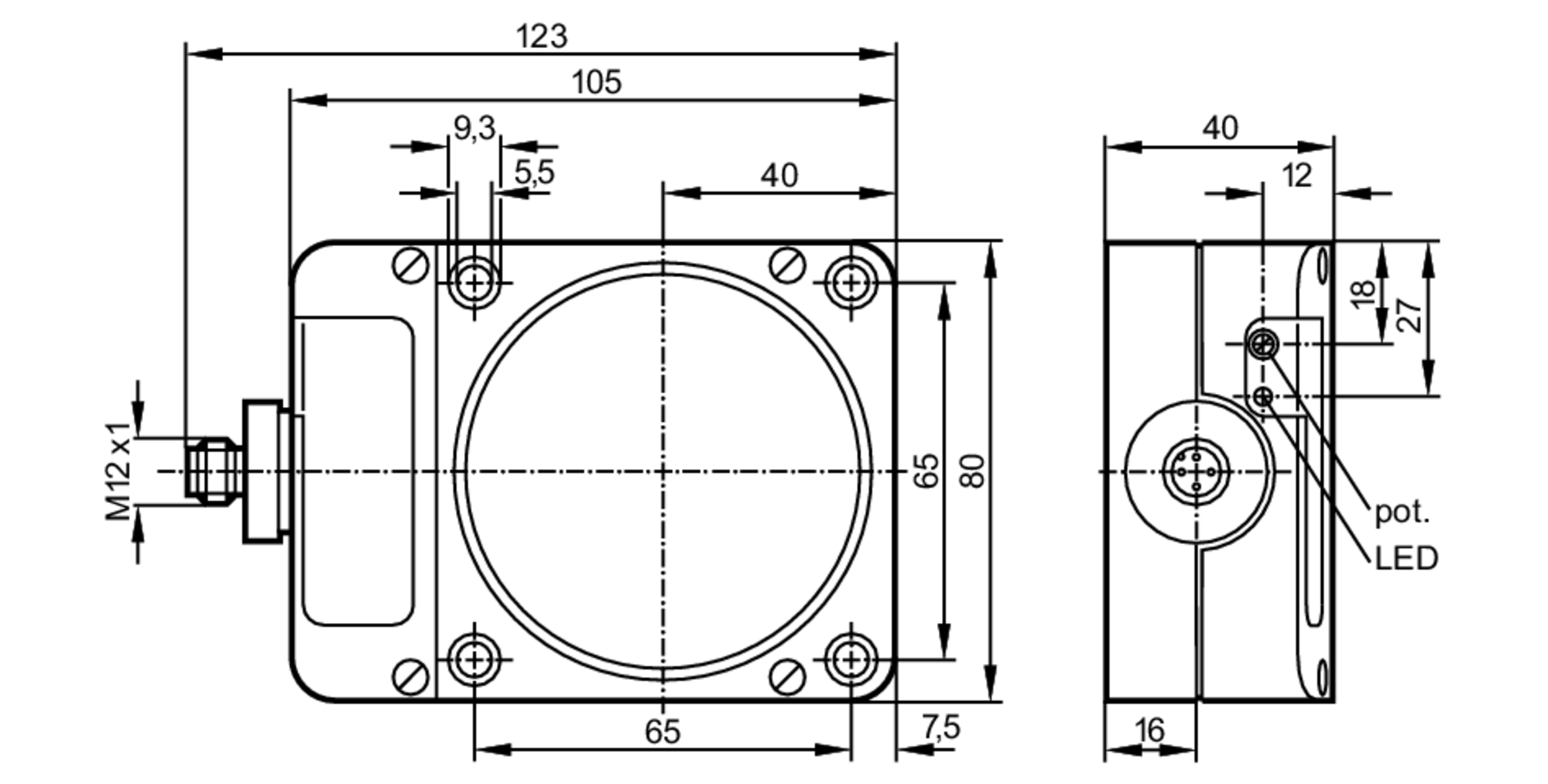

| Dimensions [mm] | 105 x 80 x 40 | ||
| Electrical data | |||
| Operating voltage [V] | 10...36 DC | ||
| Current consumption [mA] | 15 | ||
| Reverse polarity protection | yes | ||
| Outputs | |||
| Electrical design | PNP | ||
| Output function | normally open / normally closed; (selectable) | ||
| Max. voltage drop switching output DC [V] | 2.5 | ||
| Minimum load current [mA] | 0 | ||
| Permanent current rating of switching output DC [mA] | 250 | ||
| Switching frequency DC [Hz] | 100 | ||
| Short-circuit protection | yes | ||
| Type of short-circuit protection | pulsed | ||
| Overload protection | yes | ||
| Detection zone | |||
| Sensing range [mm] | 60 | ||
| Sensing range adjustable | yes | ||
| Factory setting sensing range [mm] | 60 | ||
| Real sensing range Sr [mm] | 60 ± 10 % | ||
| Operating distance [mm] | 0...48.6 | ||
| Accuracy / deviations | |||
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 | ||
| Hysteresis [% of Sr] | 3...15 | ||
| Switch point drift [% of Sr] | -10...10 | ||
| Operating conditions | |||
| Ambient temperature [°C] | -25...80 | ||
| Protection | IP 65 | ||
| Mechanical data | |||
| Weight [g] | 444.52 | ||
| Housing | rectangular | ||
| Mounting | non-flush mountable | ||
| Dimensions [mm] | 105 x 80 x 40 | ||
| Materials | PPE | ||
| Displays / operating elements | |||
| Display |
|
||
| Accessories | |||
| Items supplied |
|
||
| Remarks | |||
| Remarks |
|
||
| Pack quantity | 1 pcs. | ||
| Electrical connection - plug | |||
| Connection | Connector: 1 x M12; coding: A | ||
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — ID8505-00 — 15.11.2007 —
|
|||
ID8505 –
IDE3060-FPKG/US100DPS
Electrical connection - plug
Connector: 1 x M12; coding: A
