Inductive sensor
ID5075
IDC3050BANKG/US
Inductive sensor
ID5075
IDC3050BANKG/US
- Long sensing range for use in conveying
- Robust housing for use in harsh industrial environments
- Clearly visible indication of the switching status
{{ifmVariantName}}
| Product characteristics | |||||
|---|---|---|---|---|---|
| Electrical design | NPN | ||||
| Output function | normally open | ||||
| Sensing range [mm] | 50 | ||||
| Housing | rectangular | ||||
| Dimensions [mm] | 92 x 80 x 40 | ||||
| Electrical data | |||||
| Operating voltage [V] | 10...36 DC | ||||
| Current consumption [mA] | 15; (24 V) | ||||
| Protection class | II | ||||
| Reverse polarity protection | yes | ||||
| Outputs | |||||
| Electrical design | NPN | ||||
| Output function | normally open | ||||
| Max. voltage drop switching output DC [V] | 2.5 | ||||
| Permanent current rating of switching output DC [mA] | 200 | ||||
| Switching frequency DC [Hz] | 4 | ||||
| Short-circuit protection | yes | ||||
| Type of short-circuit protection | pulsed | ||||
| Overload protection | yes | ||||
| Detection zone | |||||
| Sensing range [mm] | 50 | ||||
| Operating distance [mm] | 0...40.5; (mounted flush with mild steel (ST37)) | ||||
| Accuracy / deviations | |||||
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2 | ||||
| Hysteresis [% of Sr] | 1...15 | ||||
| Switch point drift [% of Sr] | -10...10 | ||||
| Operating conditions | |||||
| Ambient temperature [°C] | -25...80 | ||||
| Protection | IP 67 | ||||
| Tests / approvals | |||||
| EMC |
|
||||
| MTTF [years] | 2225 | ||||
| Mechanical data | |||||
| Weight [g] | 418 | ||||
| Housing | rectangular | ||||
| Mounting | flush mountable | ||||
| Type of mounting | rail; (TH35 (EN 60715)) | ||||
| Dimensions [mm] | 92 x 80 x 40 | ||||
| Materials | PPE; diecast zinc nickel-plated | ||||
| Displays / operating elements | |||||
| Display |
|
||||
| Accessories | |||||
| Items supplied |
|
||||
| Remarks | |||||
| Pack quantity | 1 pcs. | ||||
| Electrical connection - plug | |||||
| Connection | Connector: 1 x M12; coding: A | ||||
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — ID5075-00 — 05.11.2020 —
|
|||||
ID5075 –
IDC3050BANKG/US

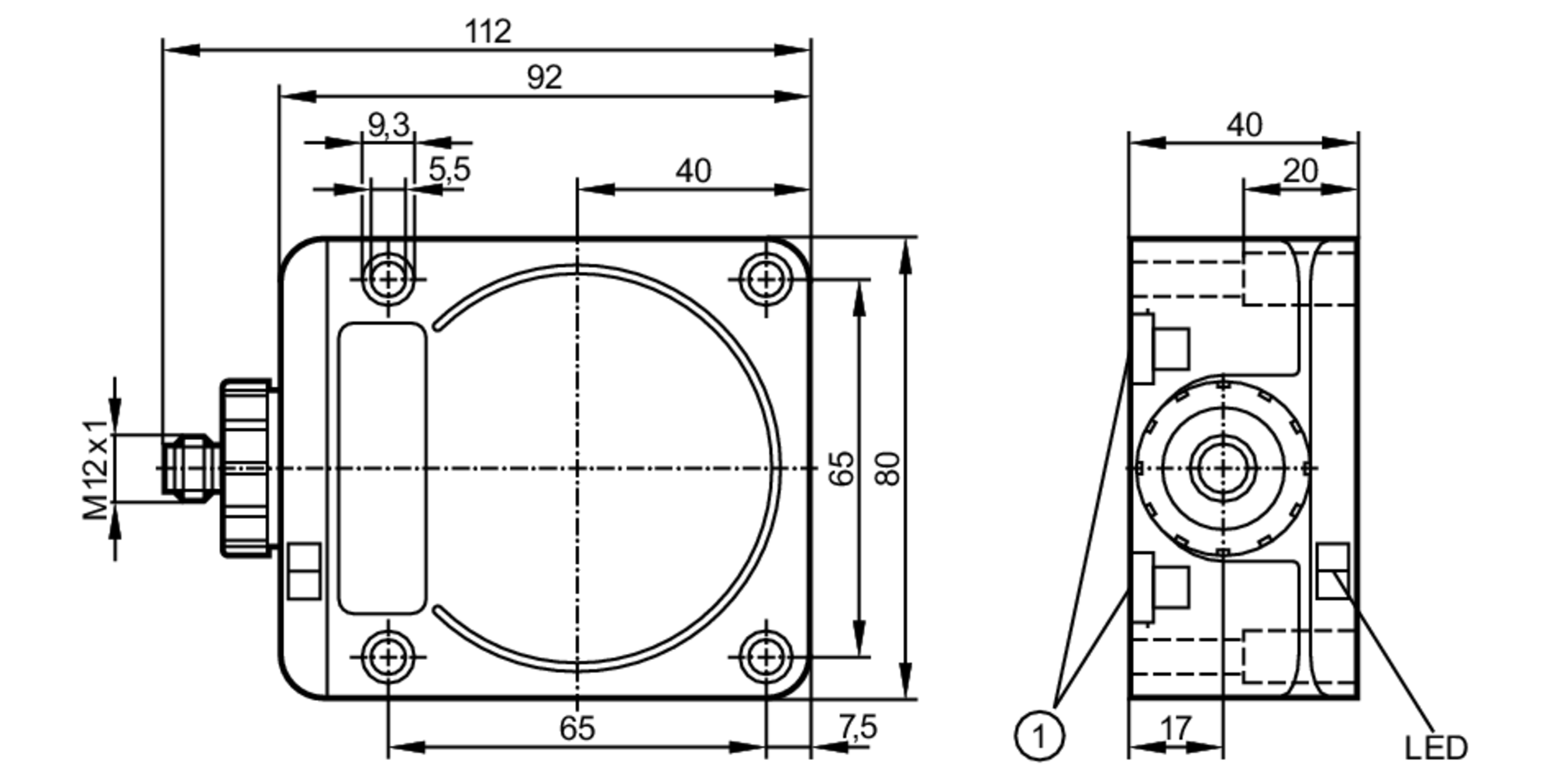

- 1
- mounting on DIN rail
Electrical connection - plug
Connector: 1 x M12; coding: A
