Welding adapter for process sensors
E43412
ADAPT G1/2-WELD FOR PIPE 3A
Welding adapter for process sensors
E43412
ADAPT G1/2-WELD FOR PIPE 3A
- Welding adapter for process sensors
- For use in industrial and hygienic applications
- Robust stainless steel housing for use in harsh industrial environments
- High pressure rating
{{ifmVariantName}}
| Application | ||
|---|---|---|
| Design | for pipes, with leakage port | |
| Pressure rating [bar] | 50 | |
| Note on pressure rating |
|
|
| Tests / approvals | ||
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. | |
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. | |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. | |
| Mechanical data | ||
| Weight [g] | 168.7 | |
| Materials | stainless steel (1.4435 / 316L) | |
| Sensor connection | G 1/2 sealing cone | |
| Process connection | welding adapter Ø 29 mm | |
| Surface characteristics Ra/Rz of the wetted parts | 0.4 / 4 | |
| Remarks | ||
| Pack quantity | 1 pcs. | |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43412-00 — 01.12.2020 —
|
||

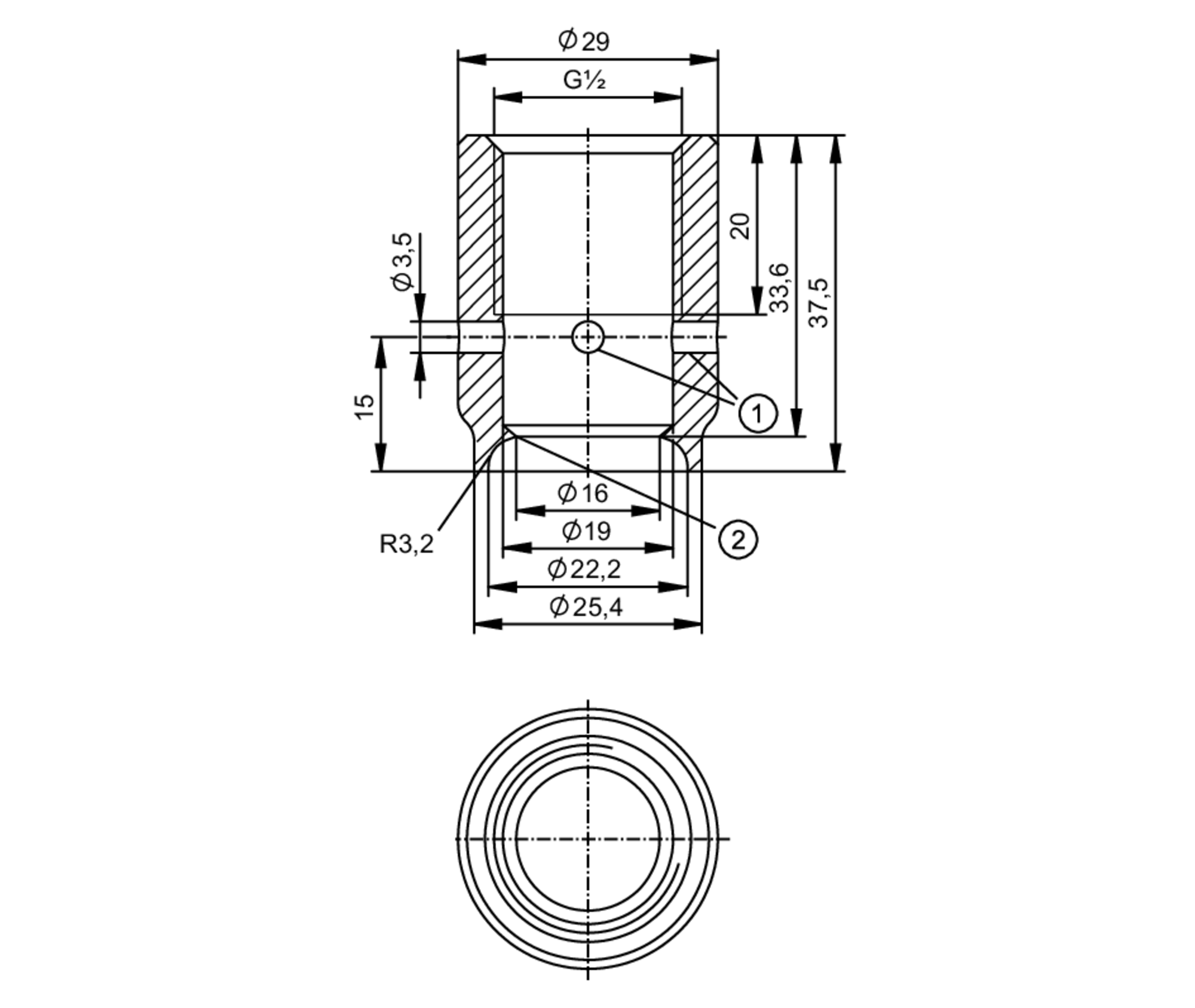

E43412 –
ADAPT G1/2-WELD FOR PIPE 3A
- 1
- Leakage port (4x)
- 2
- sealing edge
