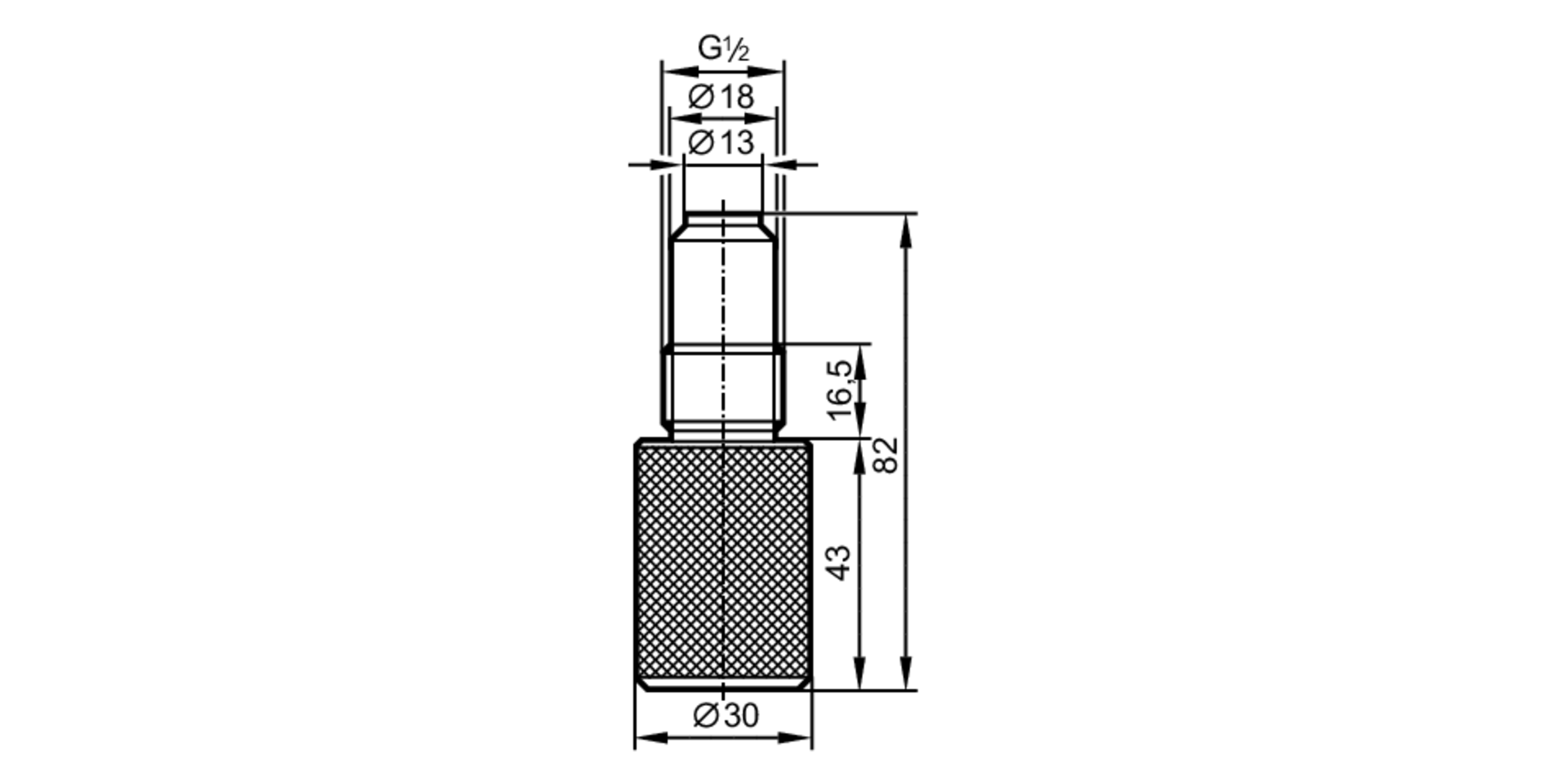

Welding mandrel for process connections

E43314

ADAPT G1/2-WELD MANDREL

Welding mandrel for process connections

E43314

ADAPT G1/2-WELD MANDREL

  • Mounting aid for welding adapters to protect the sealing edge
  • Reliable heat dissipation during welding
Application
Application carries away heat during welding
Mechanical data
Weight [g] 386.5
Materials brass (2.0401)
Process connection G 1/2 sealing cone
Surface characteristics Ra/Rz of the wetted parts 10
Remarks
Pack quantity 1 pcs.
