Welding adapter for process sensors
E40265
WELDING ADAPT D8
Welding adapter for process sensors
E40265
WELDING ADAPT D8
- Welding adapter for process sensors
- For use in industrial and hygienic applications
- Robust stainless steel design for use in harsh industrial environments
- High pressure rating
- Easy adjustment of the immersion depth of the sensor
{{ifmVariantName}}
| Application | |
|---|---|
| Installation | Clamp fitting |
| Pressure rating [bar] | 50 |
| Tests / approvals | |
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
| Mechanical data | |
| Weight [g] | 41.05 |

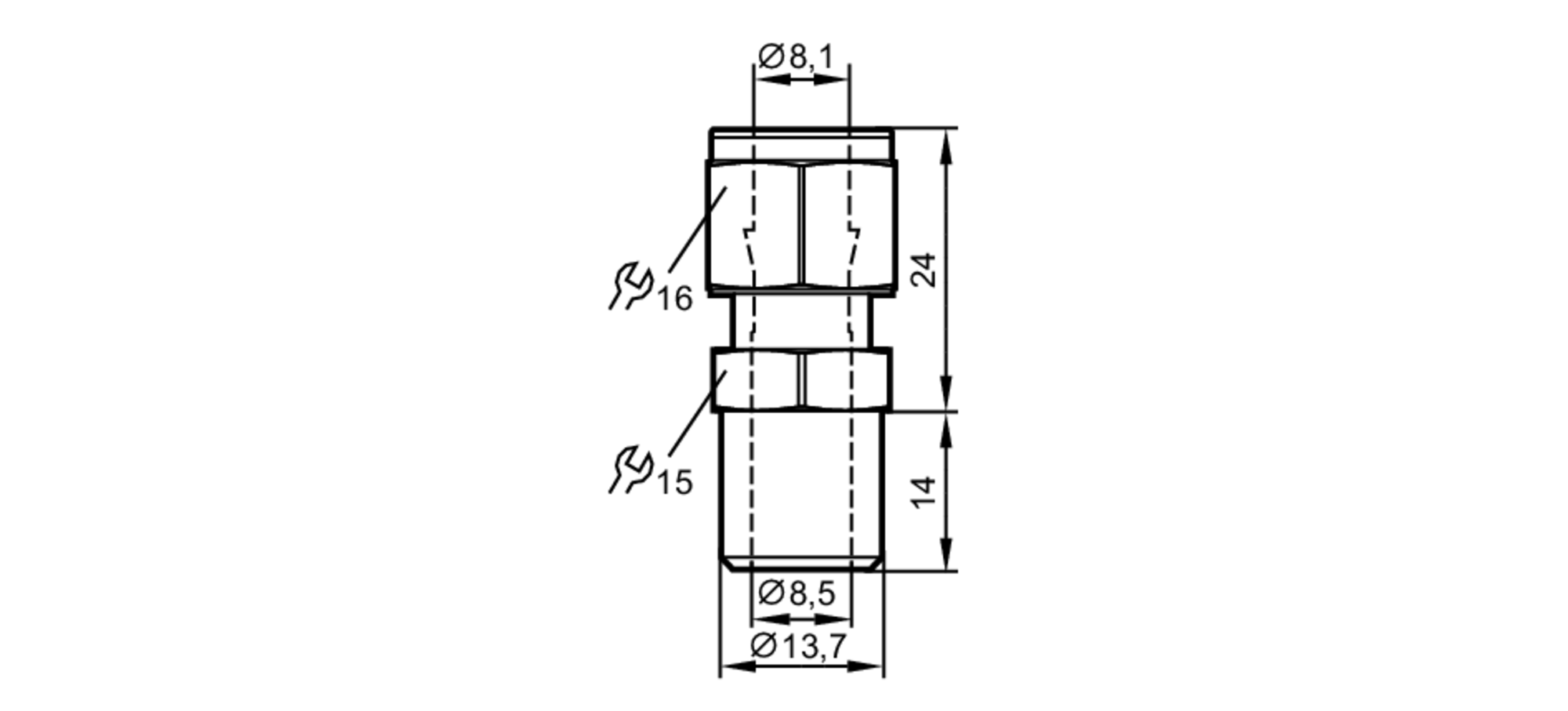

| Dimensions [mm] | Ø 13.7 |
| Materials | stainless steel (1.4404 / 316L) |
| Sensor connection | Ø 8 mm |
| Process connection | welding adapter Ø 13,7 mm |
| Remarks | |
| Pack quantity | 1 pcs. |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40265-00 — 05.01.2016 —
|
|
