Cooling element for 3D cameras
E3D354
COOLING ELEMENT 2 SMART CAM FF
Cooling element for 3D cameras
E3D354
COOLING ELEMENT 2 SMART CAM FF
{{ifmVariantName}}
| Application | ||||||
|---|---|---|---|---|---|---|
| Application | heat sink with variable flow direction | |||||
| Mechanical data | ||||||
| Weight [g] | 813 | |||||

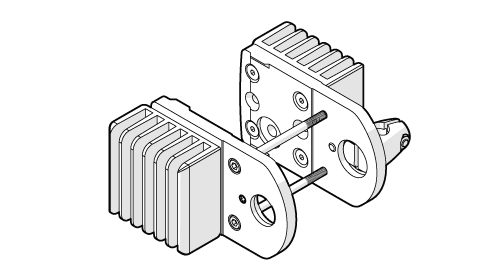

| Installation instruction | heat sink can be rotated by 90° | |||||
| Materials | dissipator: AlSi1MgMn; Heat conductor: AlMg3 | |||||
| Accessories | ||||||
| Items supplied |
|
|||||
| Remarks | ||||||
| Pack quantity | 1 pcs. | |||||

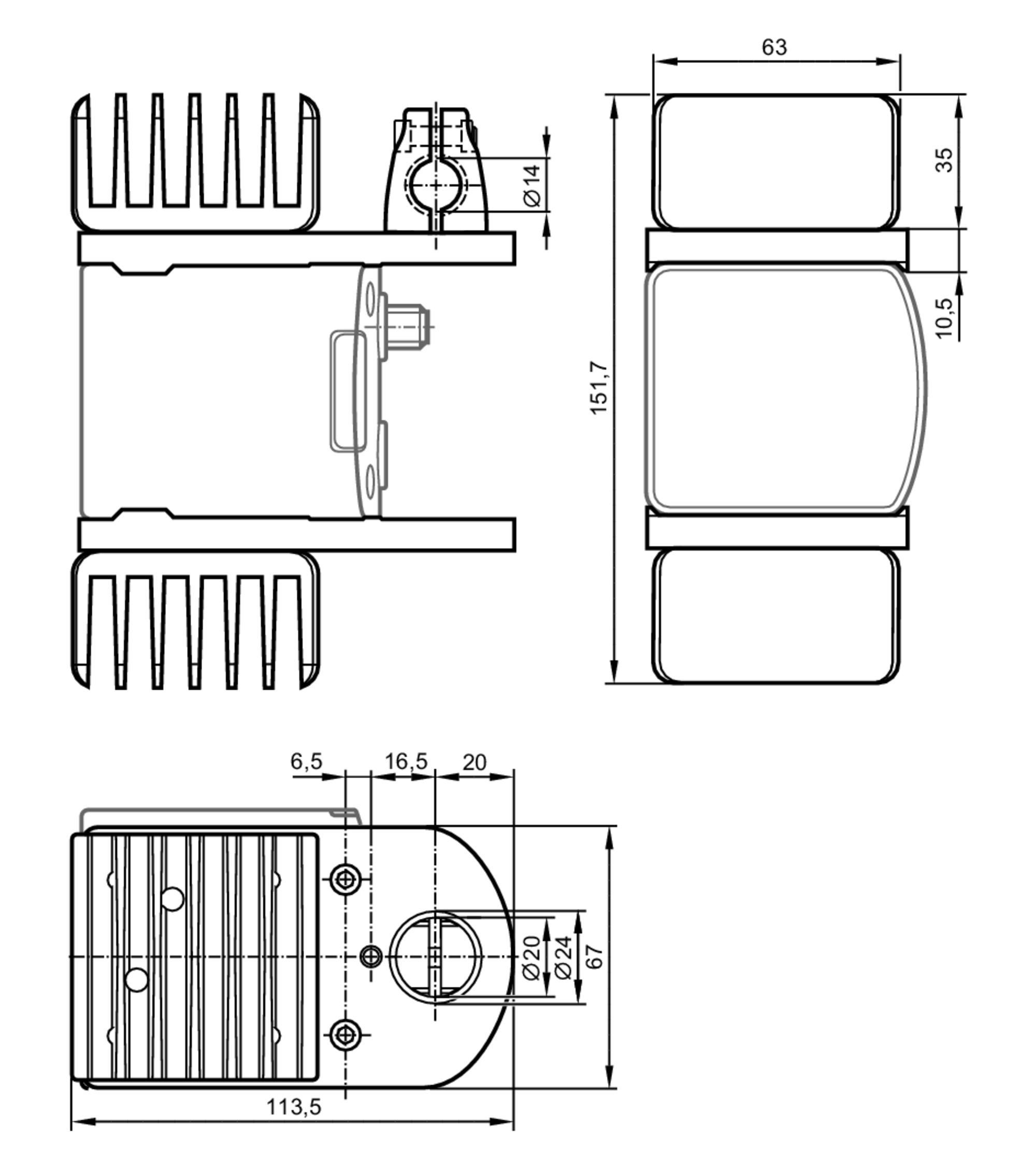

| Diagrams and graphs | ||||||
|
|
||||||
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E3D354-00 — 19.08.2019 —
|
||||||
