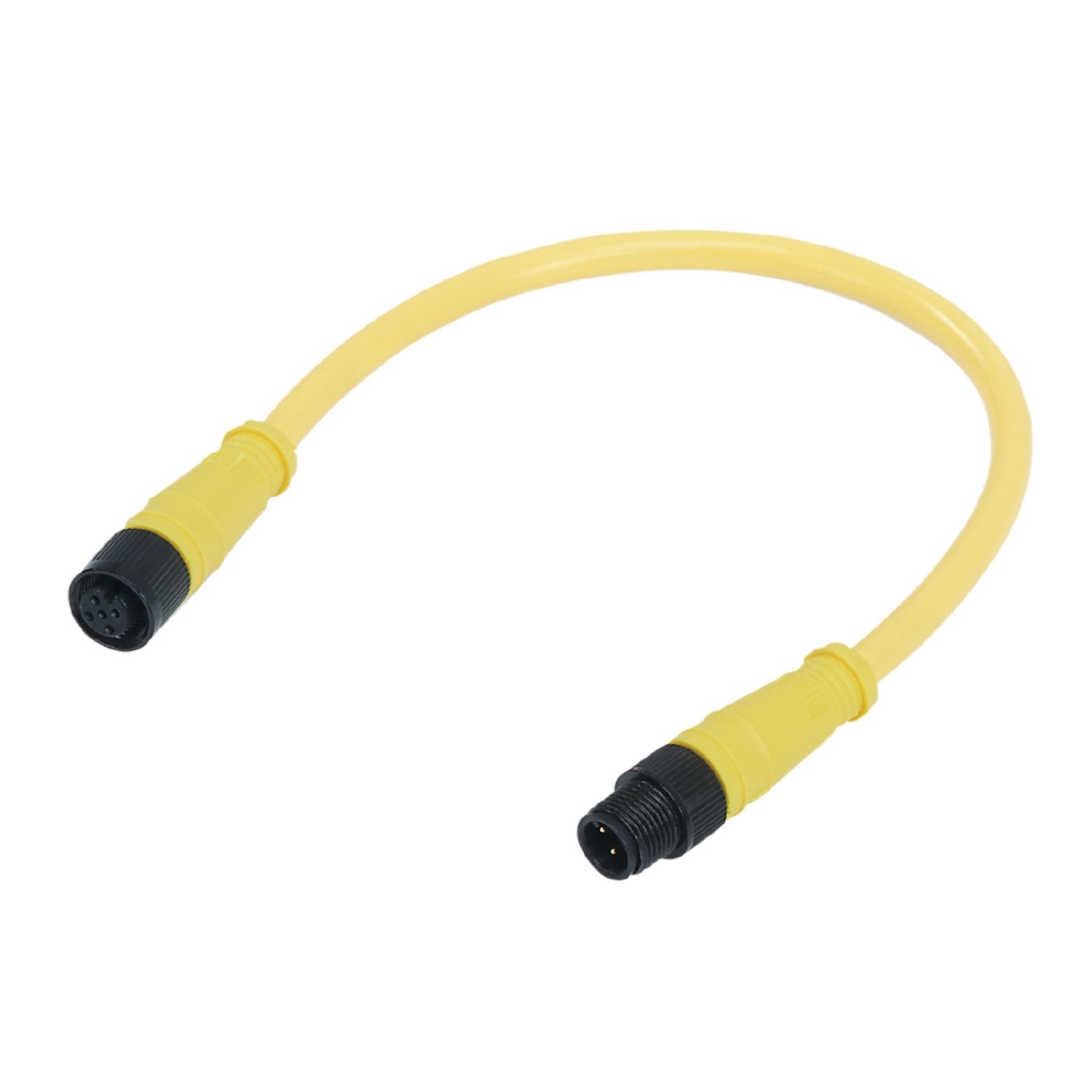

Connection cable
E18418
VDOGH040MSC0010X04STGH040MSC
Connection cable
E18418
VDOGH040MSC0010X04STGH040MSC
- Weld-slag resistant TPE cable with drag chain suitability
- Nut with special weld-slag resistant coating
- Gold-plated contacts for reliable electrical connections
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
Application
| Special feature | Free from silicone; Gold-plated contacts |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | < 250 AC/DC |
|---|
Operating conditions
| Ambient temperature [°C] | -45...105 |
|---|---|
| Protection | IP 68 |
Mechanical data
| Weight [g] | 771.106 |
|---|---|
| Dimensions [mm] | 15 x 15 x 40 |
| Materials | TPE yellow |
| Moulded-body material | TPE |
| Material nut | zinc, PTFE coated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector: 1 x M12, straight; coding: A; Moulded body: TPE; Locking: zinc, PTFE coated; Contacts: gold-plated |
Electrical connection
| Connection | Cable: 10 m, yellow; 4 x 0.75 mm² / AWG 18 |
|---|
Electrical connection - socket
| Connector: 1 x M12, straight; coding: A; Moulded body: TPE; Locking: zinc, PTFE coated; Contacts: gold-plated |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E18418-00 — 26.08.2014 —
E18418 –
VDOGH040MSC0010X04STGH040MSC
Electrical connection - plug
Connector: 1 x M12, straight; coding: A; Moulded body: TPE; Locking: zinc, PTFE coated; Contacts: gold-plated
Electrical connection
Cable: 10 m, yellow; 4 x 0.75 mm² / AWG 18
Connection
Electrical connection - socket
Connector: 1 x M12, straight; coding: A; Moulded body: TPE; Locking: zinc, PTFE coated; Contacts: gold-plated
