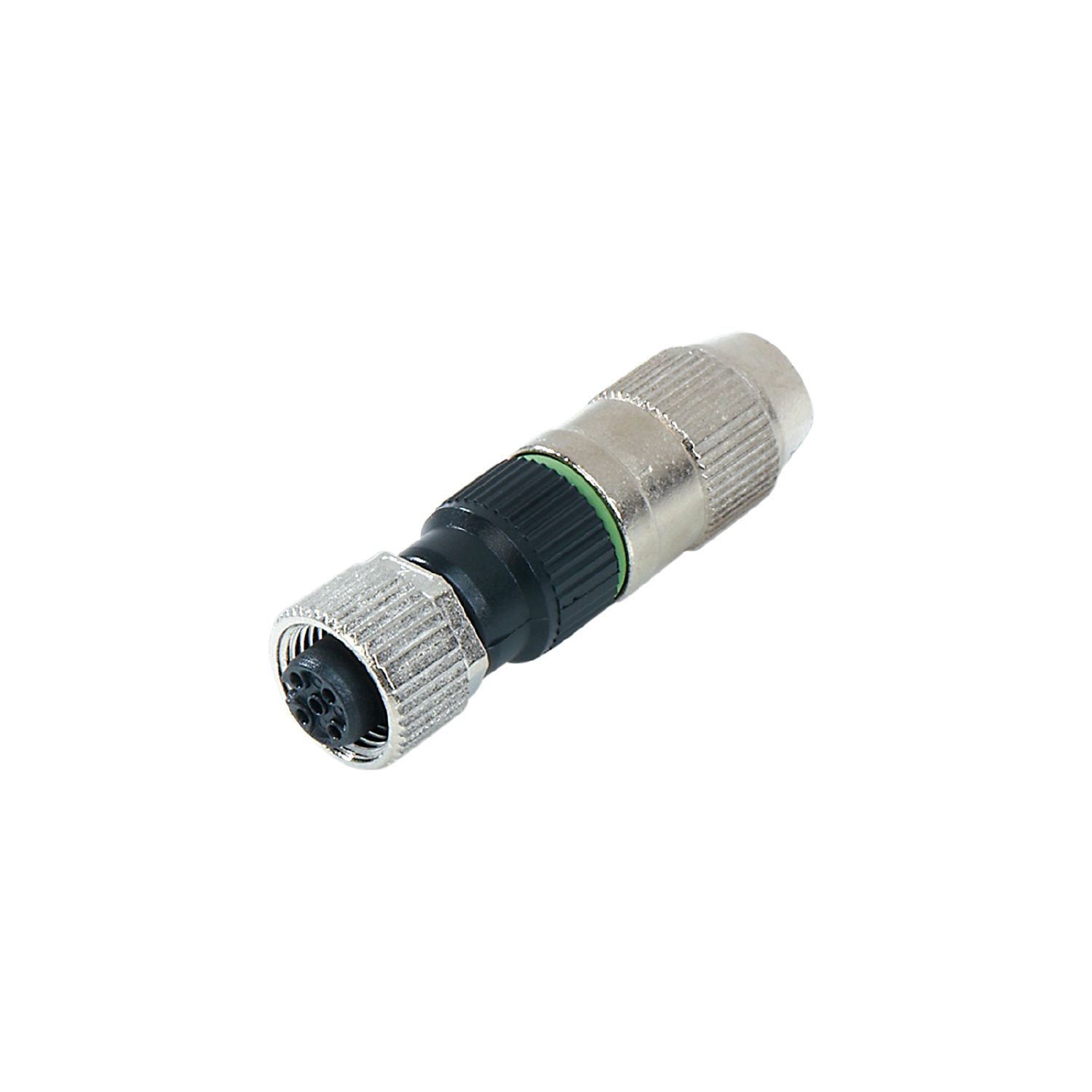

Wirable socket
E18059
SDOGH040MSSFKPG
Wirable socket
E18059
SDOGH040MSSFKPG
- Gold-plated contacts for reliable electrical connections
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Easy cable connection via insulation displacement technology
{{ifmVariantName}}
| Electrical data | |
|---|---|
| Operating voltage [V] | < 250 DC |
| Operating conditions | |
| Ambient temperature [°C] | -25...85 |
| Protection | IP 68 |
| Mechanical data | |
| Weight [g] | 22.68 |
| Dimensions [mm] | 15 x 15 x 51.8 |
| Materials | PA 6.6 |
| Moulded-body material | PA 6.6 |
| Material nut | brass, nickel-plated |
| Remarks | |
| Pack quantity | 1 pcs. |
| Electrical connection | |
| insulation displacement technology: 0.14...0.34 mm²; Core insulation: PVC / PETP; (Ø 1.0...1.55 mm); Cable sheath: Ø 4...5 mm | |
| Electrical connection - socket | |
| Connection | Connector: 1 x M12, straight; Moulded body: PA 6.6; Locking: brass, nickel-plated |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E18059-00 — 06.03.2003 —
|
|
E18059 –
SDOGH040MSSFKPG
Electrical connection
insulation displacement technology: 0.14...0.34 mm²; Core insulation: PVC / PETP; (Ø 1.0...1.55 mm); Cable sheath: Ø 4...5 mm
Electrical connection - socket
Connector: 1 x M12, straight; Moulded body: PA 6.6; Locking: brass, nickel-plated
