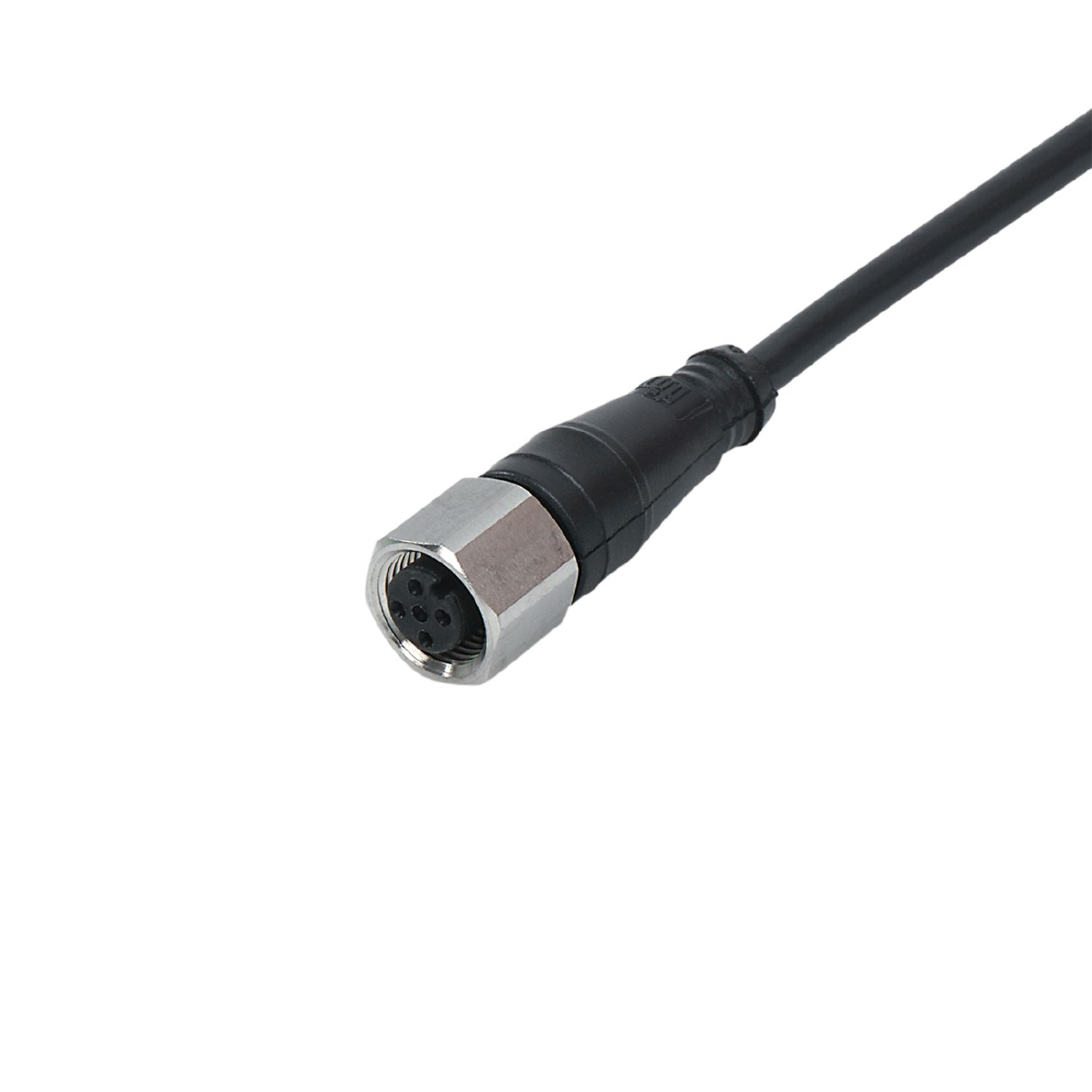

Connecting cable with socket

E18014

ADOGH040VAS0005E04

Connecting cable with socket

E18014

ADOGH040VAS0005E04

  • Gold-plated contacts for reliable electrical connections
  • Permanent, reliable sealing even when mounted without tools
  • High protection rating for the requirements of harsh industrial environments
  • Wide operating temperature range
{{ifmVariantName}}



  • ul
Technical details
Application
Special feature Gold-plated contacts
Electrical data
Operating voltage [V] < 300 AC/DC
Operating conditions
Ambient temperature [°C] -10...100
Protection IP 68
Mechanical data
Weight [g] 181.437
Dimensions [mm] 15 x 15 x 47
Materials PVC
Moulded-body material PVC
Material nut stainless steel (1.4571/316Ti )
Remarks
Pack quantity 1 pcs.
Electrical connection
Cable: 5 m, PVC, black, Ø 5 mm; 4 x 0.34 mm² / AWG 22
Electrical connection - socket
Connection Connector: 1 x M12, straight; Moulded body: PVC; Locking: stainless steel (1.4571/316Ti ); Contacts: gold-plated
