| Electrical data |
| Frequency AC [Hz] |
47...64 |
| Operating voltage tolerance [%] |
15...10 |
| Nominal voltage AC [V] |
< 230 |
| Input voltage range AC [V] |
100...240 |
| Output voltage DC [V] |
24...28 |
| Protection class |
I; (IEC 61140) |
| Overvoltage protection |
yes; (< 32 DC) |
| Output voltage [V] |
adjustable; output voltage to SELV, PELV |
| Max. output current at min. output voltage [A] |
20 |
| Max. output current at max. output voltage [A] |
17.1 |
| Max. output current peak at min. output voltage [A] |
24 |
| Max. output current peak at max. output voltage [A] |
20.6 |
| Output power (permanent) [W] |
480 |
| Output power (peak) [W] |
576 |
| Note on output power (peak) |
| ≤ 45 °C permitted continuously; > 45 °C < 1 minute every 10 minutes |
|
| Power factor (nominal voltage 120 V AC / 60 Hz) |
0.99 |
| Power factor (nominal voltage 230 V AC / 50 Hz) |
0.95 |
| Power reserve [%] |
20 |
| Number of output circuits |
1 |
| Max. residual ripple [mV] |
50 |
| Switch-on peak current (nominal voltage 120 V AC / 60 Hz) [A] |
9 |
| Switch-on peak current (nominal voltage 230 V AC / 50 Hz) [A] |
7 |
| Inrush current limitation |
yes |
| Efficiency (nominal voltage 120 V AC / 60 Hz) [%] |
92.7 |
| Efficiency (nominal voltage 230 V AC / 50 Hz) [%] |
94 |
| External input protection |
≤ B-10 A / ≤ C-10 A |
| Derating [W/K] |
12 (60...70 °C) |
| Mains buffering time (nominal voltage 120 V AC / 60 Hz) [ms] |
26 |
| Mains buffering time (nominal voltage 230 V AC / 50 Hz) [ms] |
26 |
| Input current (nominal voltage 120 V AC / 60 Hz) [A] |
4.36 |
| Input current (nominal voltage 230 V AC / 50 Hz) [A] |
2.33 |
| Power loss (nominal voltage 120 V AC / 60 Hz) [W] |
37.8 |
| Power loss (nominal voltage 230 V AC / 50 Hz) [W] |
30.6 |
| Back feeding protection [V] |
35 |
| Outputs |
| Short-circuit proof |
yes |
| Overload protection |
yes |
| Overload performance |
Hiccup Mode; In the event of overload / short circuit, the output alternately supplies continuous power for 2 s and then switches off for 18 s. |
| Type DC-OK signal |
relay output |
| Reliability of the DC OK signal |
60 V DC (0.3 A) / 30 V DC (1 A) / 30 V AC (0.5 A) |
| Operating conditions |
| Ambient temperature [°C] |
-25...70 |
| Note on ambient temperature |
| observe the free space for convection (see operating instructions) |
|
| Storage temperature [°C] |
-40...85 |
| Max. relative air humidity [%] |
95; (IEC 60068-2-30) |
| Protection |
IP 20; (EN 60529) |
| Degree of soiling |
2; (IEC 62103: conductive soiling not permitted) |
| Tests / approvals |
| EMC |
| EN 61000-6-1 |
|
| EN 61000-6-2 |
|
| EN 61000-6-3 |
|
| EN 61000-6-4 |
|
| EN 61000-3-2 |
Class A |
|
| Vibration resistance |
| IEC 60068-2-6 |
±1,6 mm 2...17,8 Hz / 2 g 17,8...500 Hz |
|
| Shock resistance |
| IEC 60068-2-27 |
30 g 6 ms / 20 g 11 ms |
|
| Power Factor Correction (PFC) |
met |
| Mechanical data |
| Weight [g] |
1121.5 |
| Type of mounting |
rail; (TH35 (EN 60715)) |
| Dimensions [mm] |
124 x 65 x 132.5 |
| Materials |
steel sheet |
| Displays / operating elements |
| Display |
|
| Remarks |
| Remarks |
| Series connection of outputs only applies to identical units up to max. 150 V DC overall voltage |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
| Connection |
screw terminals: |
| Diagrams and graphs |

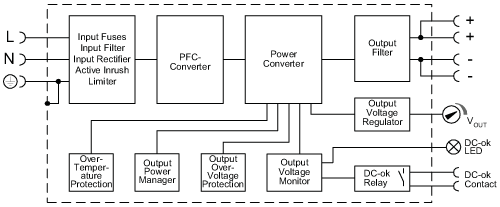

| block diagram |
|

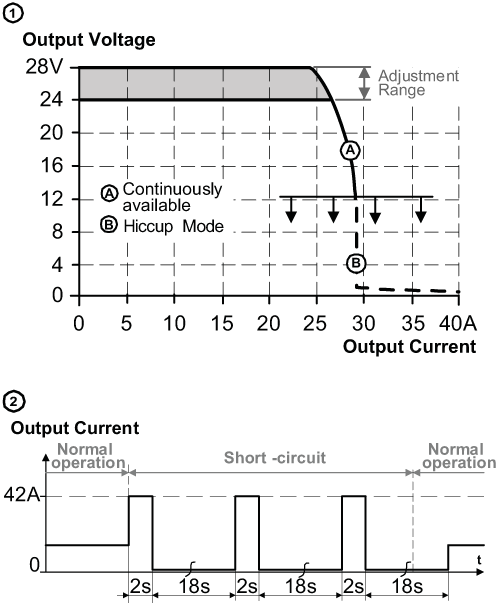

| output characteristics |
|
1:
|
output characteristics |
|
2:
|
Hiccup Mode |
|

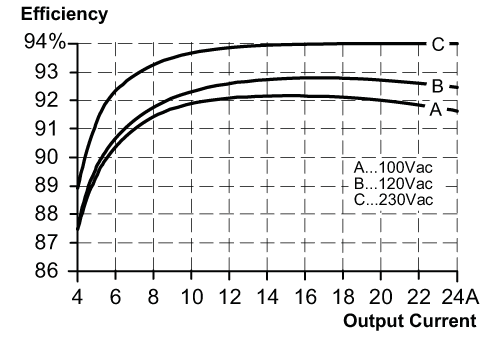

| characteristic curve for degree of efficiency / power loss |
|

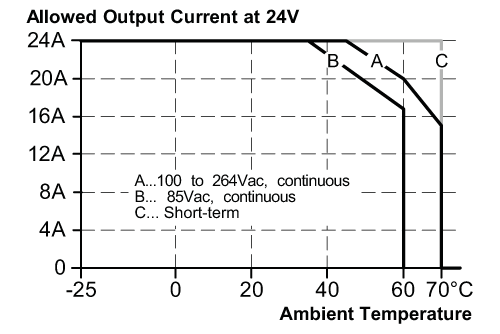

| characteristic line for derating |
|

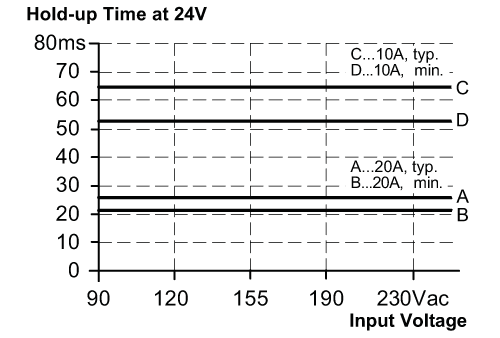

| characteristic line for mains buffering time |
|
