  6. OI0002

Diffuse reflection sensor



{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • Very long range
  • With terminal chamber that can be rotated by 90°
  • Programmable light-on/dark-on mode
  • With combined AC/DC output and two-wire technology
  • Optional connection possibility for fibre optics
  • ccc
  • ce
  • eac
  • cul
Technische Details
Function principle Diffuse reflection sensor
Electrical data
Frequency AC [Hz] 47...63
Operating voltage [V] 20...250 AC/DC
Protection class II
Reverse polarity protection no
Type of light infrared light
Wave length [nm] 880
Output function light-on/dark-on mode; (programmable)
Max. voltage drop switching output DC [V] 10.5
Max. voltage drop switching output AC [V] 10.5
Minimum load current [mA] 15
Max. leakage current [mA] 6
Permanent current rating of switching output AC [mA] 250; (350 (...50 °C))
Permanent current rating of switching output DC [mA] 250; (350 (...50 °C))
Short-time current rating of switching output [mA] 2200; (10 ms / 0,5 Hz)
Switching frequency AC [Hz] 25
Switching frequency DC [Hz] 35
Short-circuit proof no
Overload protection no
Detection zone
Range [mm] 3...700; (white paper 200 x 200 mm)
Range adjustable yes
Max. light spot diameter [mm] 122
Light spot dimensions refer to at maximum range
Operating conditions
Ambient temperature [°C] -25...80
Protection IP 65
Tests / approvals
EN 60947-5-2
MTTF [years] 309
Mechanical data
Weight [g] 127
Housing threaded type
Dimensions [mm] M30 x 1.5 / L = 125
Thread designation M30 x 1.5
Materials PBT; PPO modified
Lens material
Displays / operating elements
switching status 1 x LED, yellow
Electrical connection
Required protection miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting
Accessories (supplied)
lock nuts: 2 x
Recommendation: Check the safe functioning of the unit after a short circuit.
Pack quantity 1 pcs.
Electrical connection
Connection terminals: ...1.5 mm²; Cable sheath: Ø 7...13 mm; Cable gland: M20 X 1.5
Diagrams and graphs

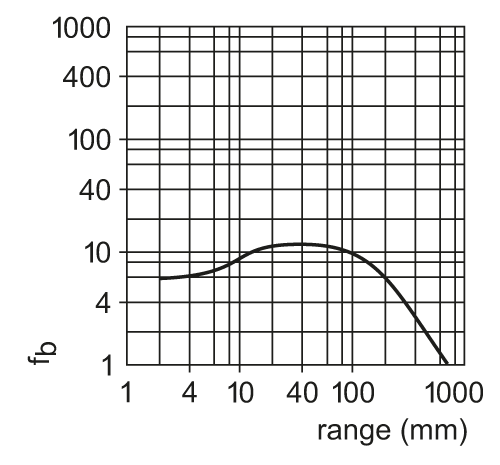

excess gain graph
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OI0002-00 — 06.03.2003 —
