| Product characteristics |
| Resolution |
4096 resolution; 4096 revolutions; 24 bit |
| Communication interface |
SSI data interface |
| Shaft design |
hollow shaft open to one side |
| Shaft diameter [mm] |
12 |
| Application |
| Function principle |
absolute |
| Revolution type |
multiturn |
| Electrical data |
| Operating voltage [V] |
4.5...30 DC |
| Current consumption [mA] |
< 30 |
| Inputs |
| Inputs |
reversal of direction of rotation; reset to zero |
| Outputs |
| Code |
Gray code; (increasing code values when turned clockwise (seen on the shaft)) |
| Code signal |
Clock input; TTL-compatible signals; clock and clock (inv.) from drivers to RS 422; data output; synchronous serial; TTL-compatible signals, data, and data (inv.) |
| Measuring/setting range |
| Resolution |
4096 resolution; 4096 revolutions; 24 bit |
| Interfaces |
| Communication interface |
SSI data interface |
| Operating conditions |
| Ambient temperature [°C] |
-40...85 |
| Max. relative air humidity [%] |
98 |
| Protection |
IP 65; (on the housing: IP 65; on the shaft: IP 64) |
| Tests / approvals |
| Shock resistance |
|
| Vibration resistance |
|
| MTTF [years] |
381 |
| Mechanical data |
| Weight [g] |
336.5 |
| Dimensions [mm] |
Ø 36.5 / L = 67 |
| Materials |
flange: aluminium; housing: steel powder-coated |
| Max. revolution, mechanical [U/min] |
12000 |
| Max. starting torque [Nm] |
3 |
| Reference temperature torque [°C] |
25 |
| Shaft design |
hollow shaft open to one side |
| Shaft diameter [mm] |
12 |
| Shaft material |
|
| Max. shaft load axial (at the shaft end) [N] |
40 |
| Max. shaft load radial (at the shaft end) [N] |
110 |
| Remarks |
| Remarks |
| Wires/pins not connected (n.c.) must not be used. |
|
| Electrical connection |
|
Cable: 2 m, PUR; Maximum cable length: 100 m; axial |
| Diagrams and graphs |

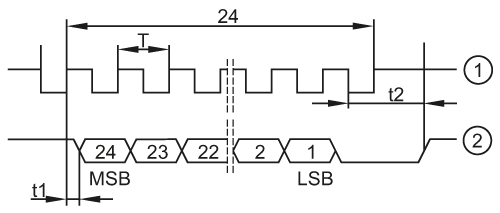

| Pulse diagram |
|
