  3. OA0103

Article no longer available - archive entry

Alternative article: OA0102 – Product comparison: OA0103 / OA0102
Note any deviating technical data for the selection of the alternative article and the accessories.


Through-beam sensor receiver


{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

Technische Details
Product characteristics
Type of light infrared light
Housing rectangular
Dimensions [mm] 90 x 30 x 70
Function principle Through-beam sensor
Electrical data
Frequency AC [Hz] 47...63
Operating voltage [V] 20...250 AC/DC
Max. power consumption [VA] 3.5
Protection class II
Reverse polarity protection no
Type of light infrared light
Wave length [nm] 880
Electrical design relay
Output function light-on/dark-on mode; (parameterisable)
Contact rating 250 V AC / 3 A / 360 VA, 125 V DC / 3 A / 30 W
Short-circuit proof no
Overload protection no
Time function [s] 0.5...10
Detection zone
Transmitter / receiver receiver
Range [m] 25...50; (depending on the transmitter)
Range adjustable yes
Operating conditions
Ambient temperature [°C] -25...60
Protection IP 65
Tests / approvals
EN 60947-5-2
MTTF [years] 250
Mechanical data
Weight [g] 0.304
Housing rectangular
Dimensions [mm] 90 x 30 x 70
Materials PPO modified
Lens material
Displays / operating elements
switching status 1 x LED, yellow
operation 1 x LED, green
function 1 x LED, red
Operating elements
on-delay or off-delay selectable via slide switch
Accessories (supplied)
Angle bracket: 1 x, E20514
Recommendation: Check the safe functioning of the unit after a short circuit.
Pack quantity 1 pcs.
Electrical connection
Connection terminals: ...1.5 mm²; Cable sheath: Ø 4.5...10 mm; Cable gland: M16 X 1.5
Diagrams and graphs

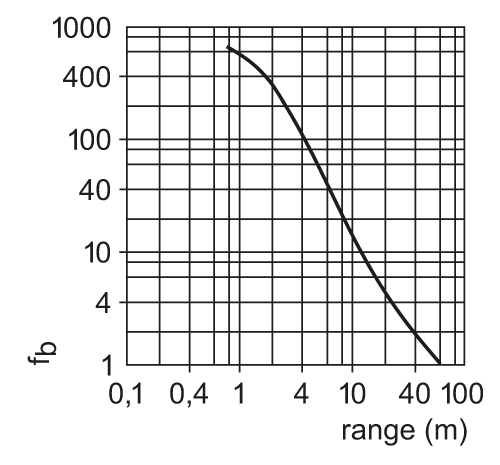

excess gain graph
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OA0103-00 — 06.03.2003 —
