OGD582

Photoelectric distance sensor

OGDLFPKG/IO-LINK/US

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • Simultaneous output of distance value and reflectivity for increased process reliability
  • Identification and sorting by differentiating between colour/contrast and distance/height of objects
  • Flexible installation options thanks to a range of up to 1.5 m
  • ce
  • iolink
  • cul
Download
Technische Details
Product characteristics
Type of light red light
Setting range distance [m] 0.085...1.5
Setting range object reflectivity [%] 6...900; (reflectivity; 6 % black paper; 100 % white paper)
Laser protection class 1
Dimensions [mm] 61.7 x 22.5 x 45.2
Electrical data
Operating voltage [V] 10...30 DC; ("supply class 2" to cULus )
Current consumption [mA] < 75
Current consumption reference voltage [V] 24
Protection class III
Reverse polarity protection yes
Type of light red light
Wave length [nm] 650
Typ. lifetime [h] 50000
Inputs
Inputs Laser On/ Off
Outputs
Electrical design PNP
Output function 2 x normally open / normally closed; (parameterisable)
Max. current load per output [mA] 100
Type of short-circuit protection pulsed
Overload protection yes
Detection zone
Max. light spot diameter [mm] 5
Light spot dimensions refer to at maximum range
Background suppression [m] < 20
Measuring/setting range
Setting range distance [m] 0.085...1.5
Setting range object reflectivity [%] 6...900; (reflectivity; 6 % black paper; 100 % white paper)
Sampling rate [Hz] 33
Interfaces
Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9
IO-Link device ID 926d / 00039Eh
Profiles Smart Sensor: Sensor Identification; Binary Data Channel; Process Value; Sensor Diagnosis
SIO mode yes
Required master port type A
Min. process cycle time [ms] 5
IO-Link functions (cyclical)
function bit length
process value 2 x 16
device status 4
binary switching information 2
IO-Link functions (acyclical) application specific tag; operating hours counter; switching cycles counter
Note
For further information please see the IODD PDF file at "Downloads"
Operating conditions
Ambient temperature [°C] -25...60
Note on ambient temperature
In ambient temperatures < -10 °C a warm-up time is necessary.
Laser is off.
Storage temperature [°C] -30...80
Protection IP 65; IP 67
Tests / approvals
Laser protection class 1
Notes on laser protection
Caution: laser light
laser class: 1
EN / IEC60825-1:2007
EN / IEC60825-1:2014
Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
MTTF [years] 217
UL approval
Ta -25...60 °C
Enclosure type Type 1
voltage supply Class 2
File number UL E174191
Mechanical data
Weight [g] 229.8
Dimensions [mm] 61.7 x 22.5 x 45.2
Materials Housing: stainless steel (1.4404 / 316L); PPSU; ABS; PMMA; PBT PC; EPDM; front lens: glass
Displays / operating elements
Display
switching status 2 x LED, yellow
1 x alphanumeric display, 3-digit
Operating elements
3 pushbutton
Accessories
Accessories (supplied)
lock nut: 2 x
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12
Diagrams and graphs

a: sensor
b: object
c: background
x: distance sensor/object [mm]
y: min. distance object/background [mm]

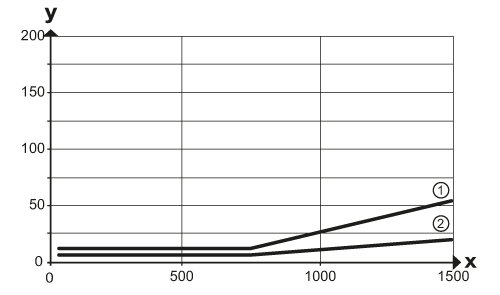

hysteresis curve for distance measurement
x: distance sensor/object [mm]
y: min. distance object/background [mm]
1 = background (black 6 % remission)
2 = background (white 90 % remission)

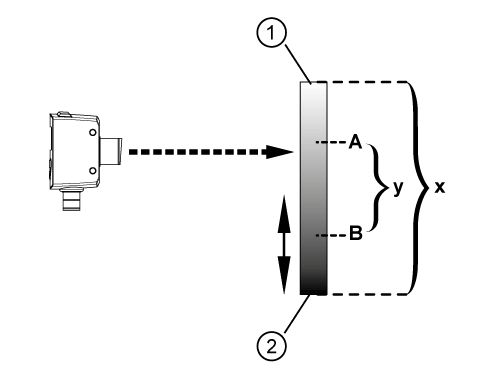

1: bright
2: dark
A: switch point
B: reset point
x: object brightness ( object reflectivity )
y: min. reflectivity difference to be detected safely

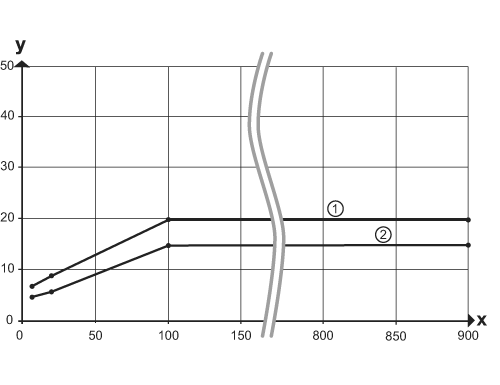

hysteresis curve for object reflectivity
x: object reflectivity ( 0..900 % )
y: Hysteresis [%]
1 = optional hysteresis curve ( high )
2 = Hysteresis Factory setting ( low )
Other data
Parameter Setting range Factory setting
Uni cm cm
OU1 Hno, Hnc, Fno, Fnc, OFF Hno
SP1 [cm] 8.5…150 150
nP1 [cm] 8.5…150 20
FP1 [cm] 8.5…150 25
LG1 And,Or,Off Off
dS1 [s] 0…0.1…5 0
dr1 [s] 0…0.1…5 0
OU2 Hno, Hnc, Fno, Fnc, OFF Hno
SP2 [%] 6…900 6
bP2 [%] 6…900 60
dP2 [%] 6…900 30
HyL Lo/Hi Lo
LG2 And,Or,Off Off
dS2 [s] 0...0.1...5 0
dr2 [s] 0...0.1...5 0
dFO [s] 0...0.1...5 0.1
dIS ON / OFF ON
Repeatability: 6 σ
repeatability of the measured values
distance white (90 % remission) black (6 %...90 % remission)
85 mm 8.0 mm 15.0 mm
750 mm 8.0 mm 15.0 mm
1500 mm 20.0 mm 60.0 mm
The values apply at
Extraneous light on the object < 10 klx
constant ambient conditions 23 °C / 960 hPa
minimum power-on time in minutes 10
