Y connection cable
EVC693
YDSGHDA0MSS0001HDASTGH030MSS
Y connection cable
EVC693
YDSGHDA0MSS0001HDASTGH030MSS
- Resistant to oils and coolants
- Permanent, reliable sealing even when mounted without tools
- High protection rating for the requirements of harsh industrial environments
- Vibration and shock resistant thanks to coupling ring with locking mechanism
- Mechanical end stop to protect the O-ring from destruction
Please see the technical note under "Downloads"
{{ifmVariantName}}
| Application | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Special feature | Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability | ||||||||
| Free from silicone | yes | ||||||||
| Electrical data | |||||||||
| Operating voltage [V] | < 24 DC | ||||||||
| Protection class | III | ||||||||
| Max. current load total [A] | 4 | ||||||||
| Operating conditions | |||||||||
| Ambient temperature [°C] | -25...90 | ||||||||
| Protection | IP 65; IP 67; IP 68; IP 69K | ||||||||
| Mechanical data | |||||||||
| Weight [g] | 113.6 | ||||||||
| Moulded-body material | TPU / TPU | ||||||||
| Material nut | brass, nickel-plated | ||||||||
| Sealing material | FKM | ||||||||
| Connector type | M12 | ||||||||
| Drag chain suitability | yes | ||||||||
| Drag chain suitability |
|
||||||||
| Remarks | |||||||||
| Notes | Please see the technical note under "Downloads" | ||||||||
| Pack quantity | 1 pcs. | ||||||||
| Electrical connection - plug C | |||||||||
| Connector: M12, straight; coding: A; Moulded body: TPU, orange; Locking: Lock nut, brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm; Take into account the maximum value of the counterpart! | |||||||||

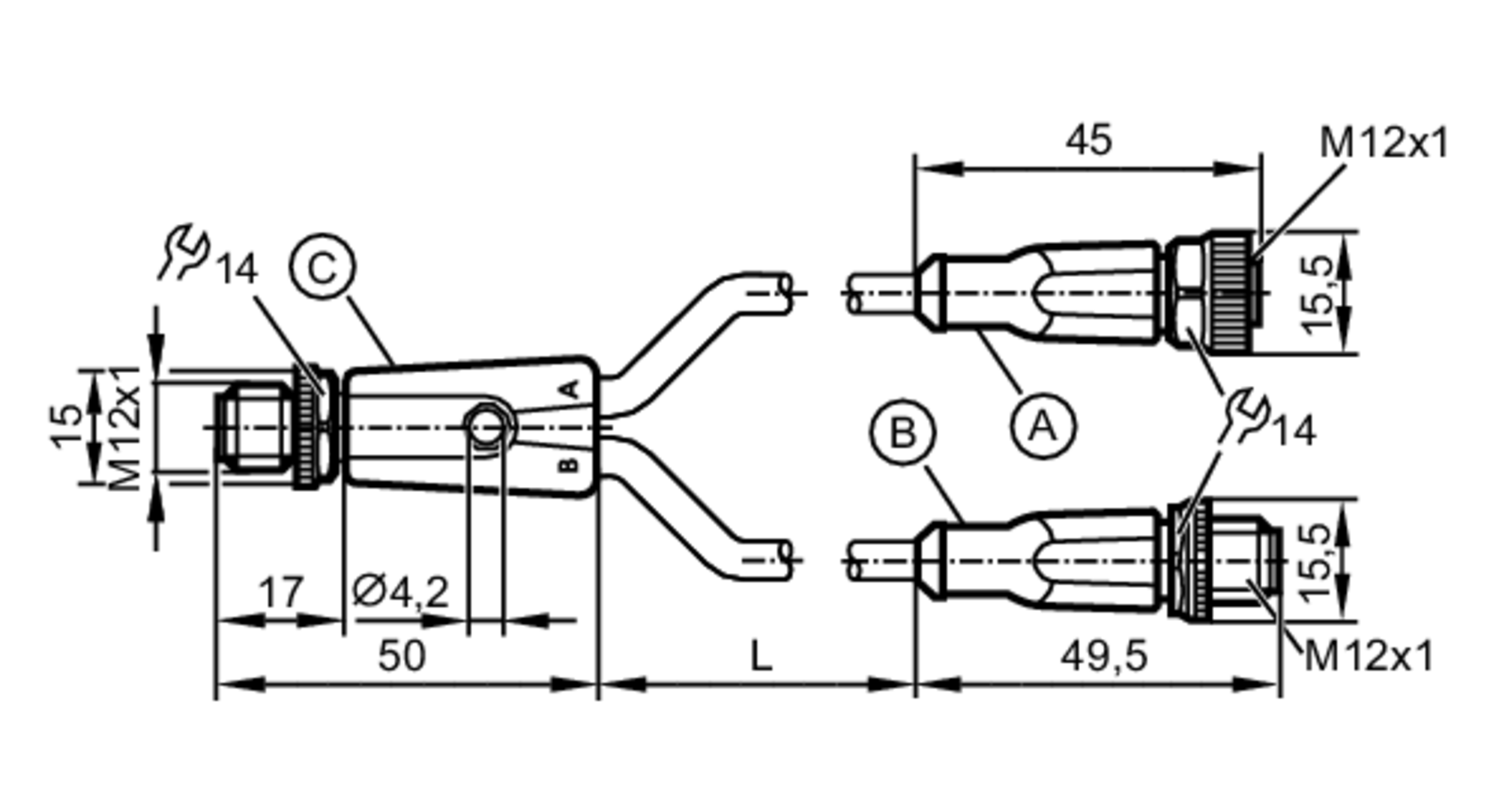

| Diagrams and graphs | |||||||||
|
|||||||||
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EVC693-00 — 05.11.2020 —
|
|||||||||
EVC693 –
YDSGHDA0MSS0001HDASTGH030MSS
Electrical connection - plug C
Connector: M12, straight; coding: A; Moulded body: TPU, orange; Locking: Lock nut, brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm; Take into account the maximum value of the counterpart!

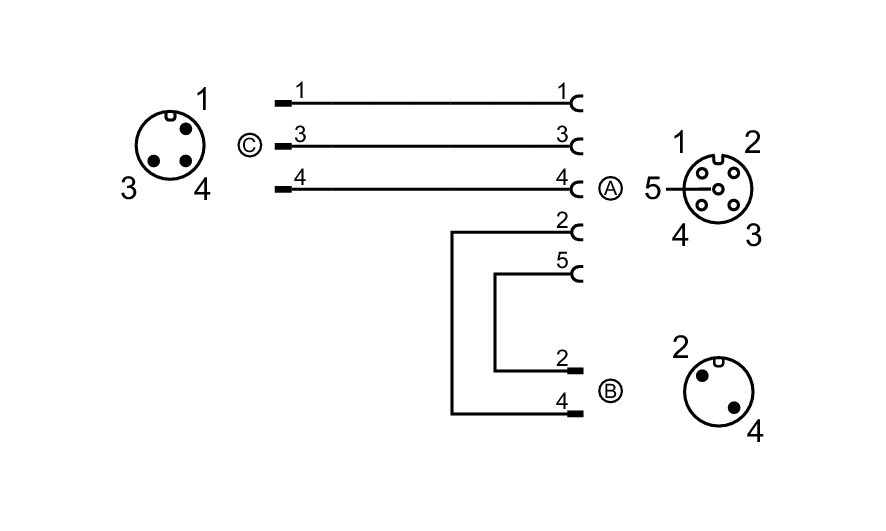

Electrical connection
Connection
Electrical connection - socket A
Cable: 1 m, PUR, Halogen-free, black, Ø 4.9 mm; 5 x 0.34 mm² (42 x Ø 0.1 mm )
Connector: M12, straight; Moulded body: TPU, orange; Locking: Lock nut, brass, nickel-plated; Sealing: FKM; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm; Take into account the maximum value of the counterpart!
Electrical connection - plug B
Cable: 1 m, PUR, Halogen-free, black, Ø 4.9 mm; 2 x 0.34 mm² (42 x Ø 0.1 mm )
Connector: M12, straight; coding: A; Moulded body: TPU, orange; Locking: Lock nut, brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm; Take into account the maximum value of the counterpart!
