Splitter box
EBC057
ZDO8F04HMSS0010H10
Splitter box
EBC057
ZDO8F04HMSS0010H10
- Compact housing for use where space is restricted
- Resistant to oils and coolants
- Permanent, reliable sealing even when mounted without tools
- Mechanical end stop to protect the O-ring from destruction
- Clearly visible LEDs for indicating switching status and operation
{{ifmVariantName}}
| Application | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Special feature | Gold-plated contacts; Drag chain suitability | ||||||||
| Electrical data | |||||||||
| Operating voltage [V] | 10...30 DC; ("supply class 2" to cULus) | ||||||||
| Protection class | III | ||||||||
| Max. current load per module/slot [A] | 2 | ||||||||
| Max. current load total [A] | 6 | ||||||||
| Outputs | |||||||||
| Electrical design | PNP | ||||||||
| Operating conditions | |||||||||
| Ambient temperature [°C] | -25...80 | ||||||||
| Ambient temperature (moving) [°C] | -5...60 | ||||||||
| Protection | IP 65; IP 67; IP 68 | ||||||||
| Mechanical data | |||||||||
| Weight [g] | 1247 | ||||||||

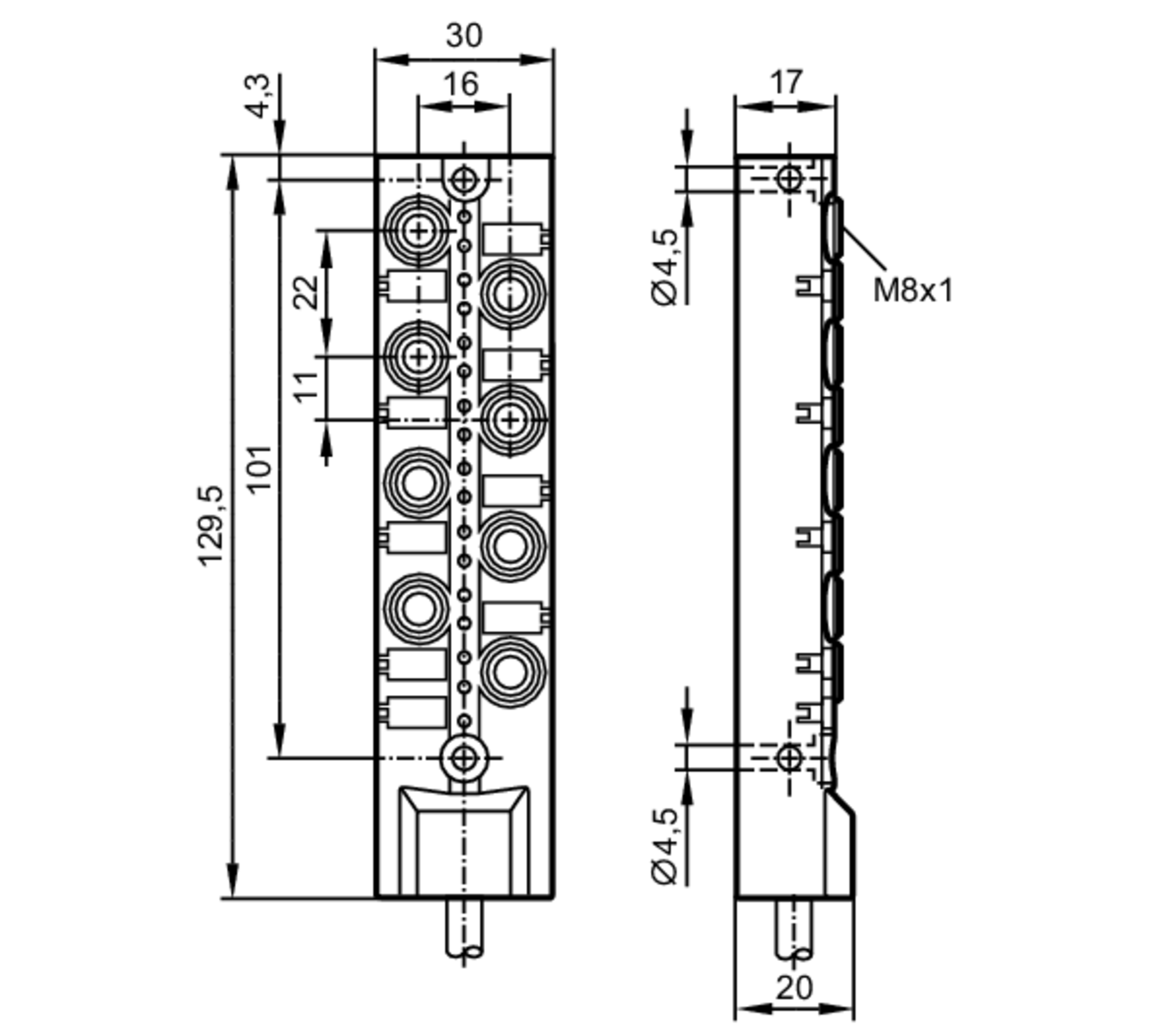

| Dimensions [mm] | 20 x 30 x 129.5 | ||||||||
| Materials | PBT-GF20; brass nickel-plated | ||||||||
| Moulded-body material | PBT-GF 20 / brass, nickel-plated | ||||||||
| Number of ports splitter box | 8 | ||||||||
| Connector type | M8 | ||||||||
| Drag chain suitability | yes | ||||||||
| Drag chain suitability |
|
||||||||
| Displays / operating elements | |||||||||
| Display |
|
||||||||
| Accessories | |||||||||
| Accessories (optional) |
|
||||||||
| Remarks | |||||||||
| Pack quantity | 1 pcs. | ||||||||
| Electrical connection | |||||||||
| Cable: 10 m, PUR, black, Ø 8.5 mm; 16 x 0.34 mm² (43 x Ø 0.1 mm ) + 2 x 0.75 mm² (21 x Ø 0.2 mm ) | |||||||||
| Electrical connection - slot | |||||||||
| Connection | Connector: 8 x M8; coding: A; Moulded body: PBT-GF 20 / brass, nickel-plated; Contacts: gold-plated | ||||||||
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EBC057-00 — 05.11.2020 —
|
|||||||||
EBC057 –
ZDO8F04HMSS0010H10
Electrical connection
Cable: 10 m, PUR, black, Ø 8.5 mm; 16 x 0.34 mm² (43 x Ø 0.1 mm ) + 2 x 0.75 mm² (21 x Ø 0.2 mm )
Electrical connection - slot
Connector: 8 x M8; coding: A; Moulded body: PBT-GF 20 / brass, nickel-plated; Contacts: gold-plated
Connection

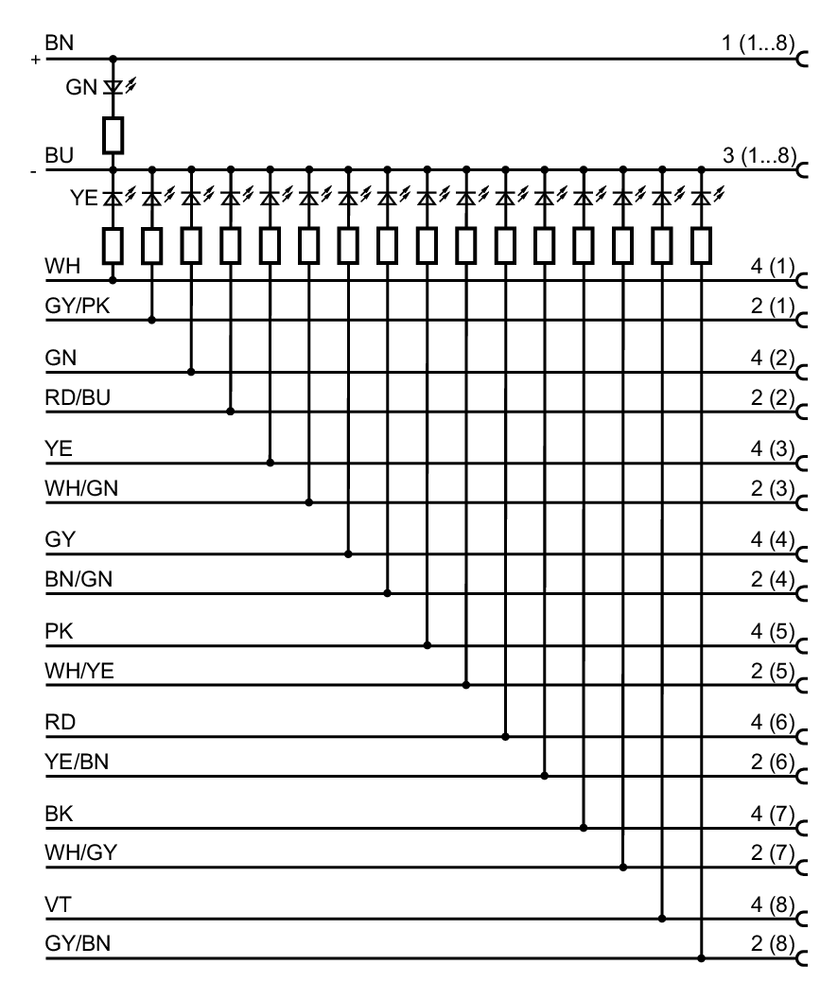

- Core colours :
- BK =
- black
- BN =
- brown
- BU =
- blue
- GN =
- green
- GY =
- grey
- PK =
- pink
- RD =
- red
- VT =
- lilac
- WH =
- white
- YE =
- yellow
