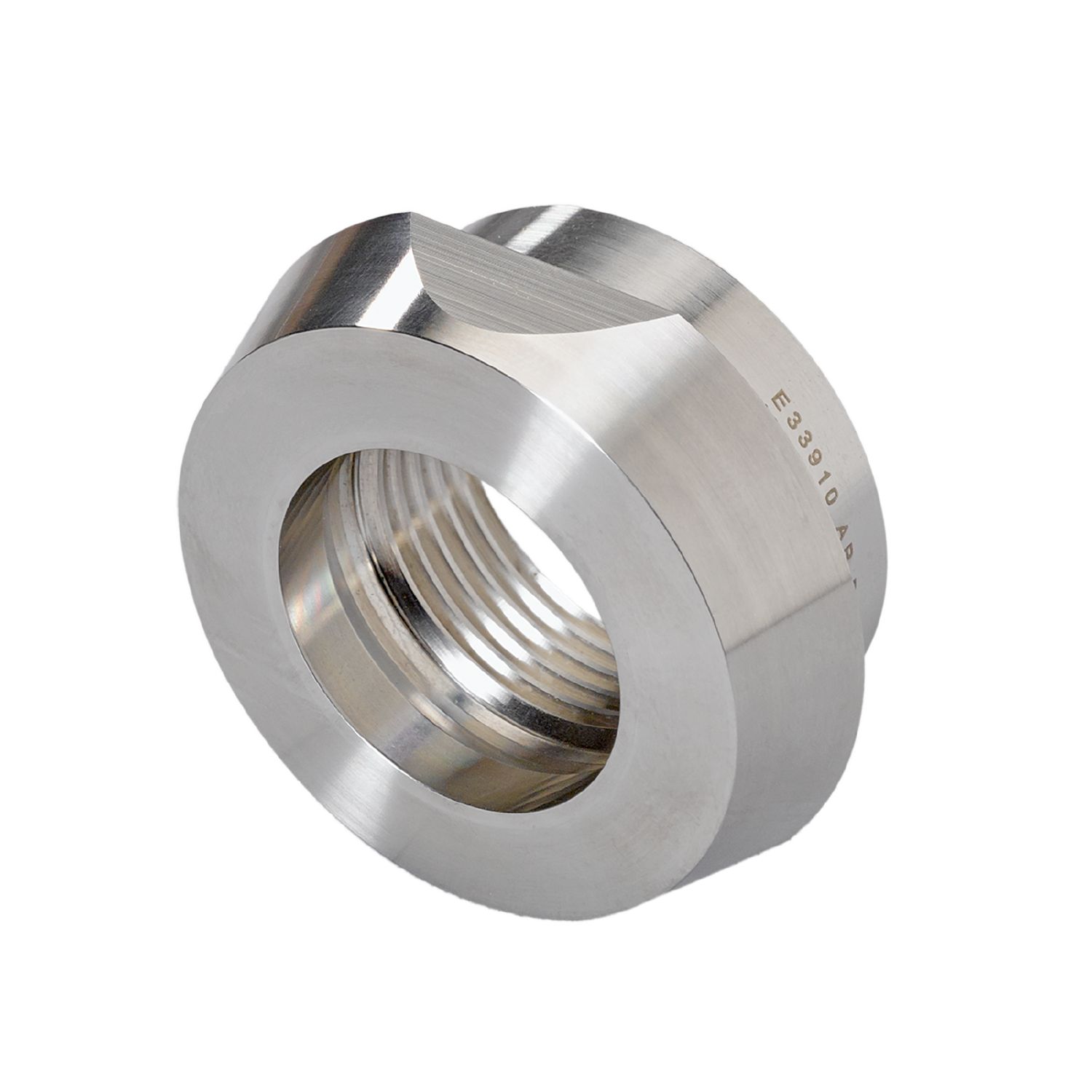

Process adapter hygienic pipe fitting
E33910
ADAPT G3/4-DIN11851/DN25 (1)
Process adapter hygienic pipe fitting
E33910
ADAPT G3/4-DIN11851/DN25 (1)
- For the installation of process sensors in containers and pipes
- Easy, quick and secure mounting
- Particularly suited for use in hygienic applications
- Stainless steel adapter for the requirements of the food and beverage industry
- High pressure rating
Article no longer available - archive entry
Application
| Pressure rating [bar] | 40 |
|---|
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 146.5 |
|---|---|
| Materials (wetted parts) | stainless steel (316L/1.4404) ; surface characteristics : Ra<0,4 / Rz 4 |
| Sensor connection | G 3/4 |
| Process connection | hygienic pipe fitting DN25 (1") DIN 11851 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E33910-00 — 11.06.2013 —
